BGU8H1UK LTE LNA evaluation board.
- BGU8H1UK LNA evaluation board in ESD safe packing
BGU8H1UK LTE LNA evaluation board

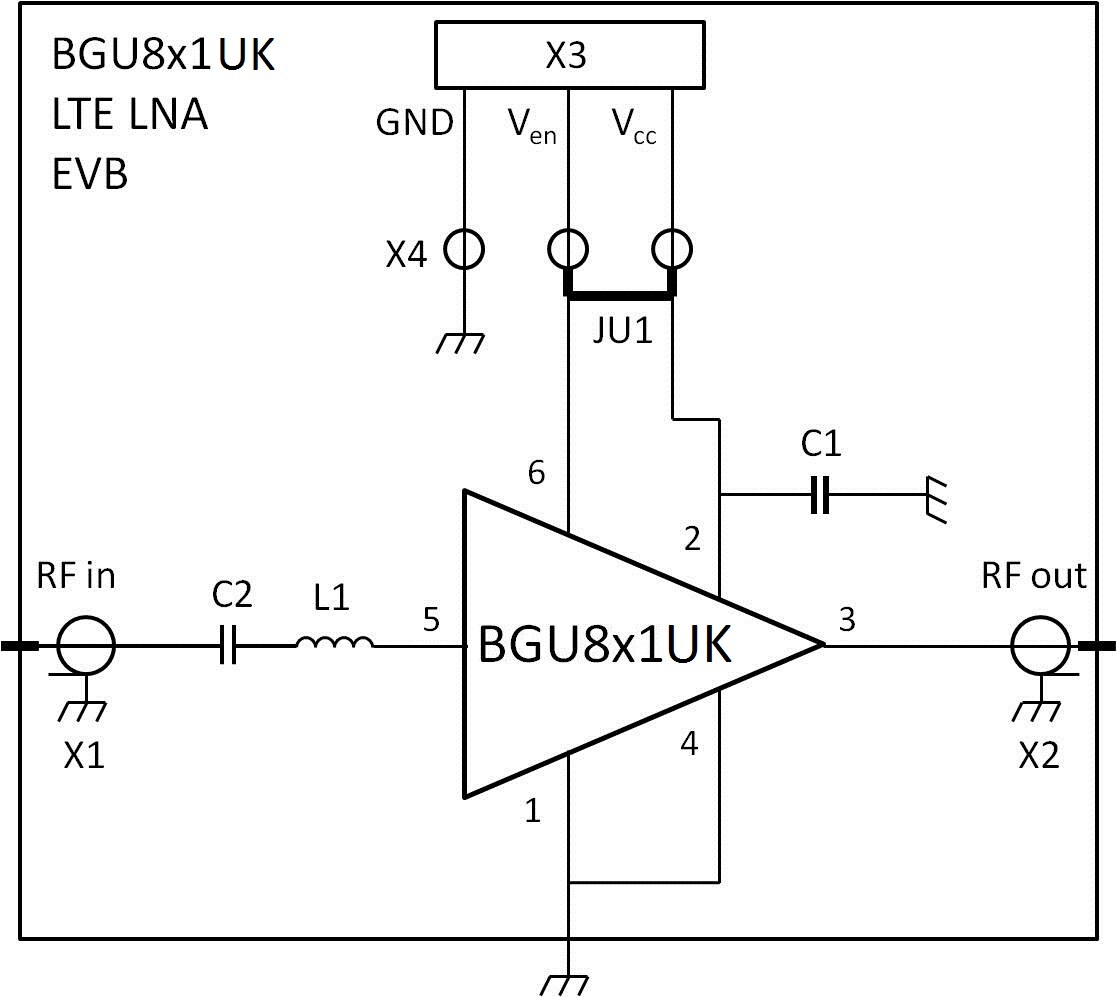

The BGU8H1UK LTE LNA evaluation board simplifies the evaluation of the BGU8H1UK LNA for the LTE application. The evaluation board enables testing of the device performance and requires no additional support circuitry. The board is fully assembled with the BGU8H1UK, the input series inductor, input DC blocking capacitor and a decoupling capacitor. The board is supplied with two SMA connectors for input and output connection to RF test equipment. The BGU8H1UK can operate from a 1.5 V to 3.1 V single supply and consumes about 4.6 mA.
製品詳細
Features
The BGU8H1UK is optimized for 2300 MHz to 2690 MHz
- Noise figure (NF) = 0.90 dB
- Gain = 16 dB
- High input 1 dB compression point of -5 dBm
- High out of band IP3i of 3 dBm
- Supply voltage 1.5 V to 3.1 V
- Optimized performance at low 4.6 mA supply current
- Power-down mode current consumption < 1 µA
- Integrated temperature stabilized bias for easy design
- Requires only one input matching inductor, input DC blocking capacitor, and one supply decoupling capacitor
- Input and output DC decoupled
- ESD protection on all pins (HBM > 2 kV)
- Integrated matching for the output
- 0.65 mm x 0.44 mm x 0.2 mm; 0.22 mm pitch
- 180 GHz transit frequency - SiGe:C technology
