Absolute Digital Pressure Sensor (50 to 115 kPa)

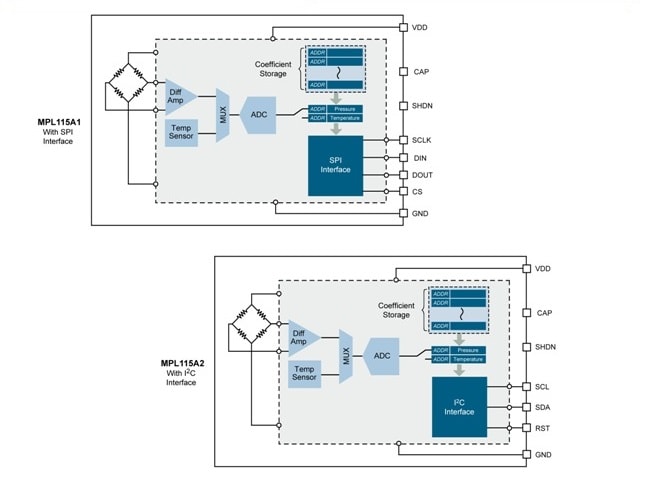

The MPL115A is a simple barometer with digital output for cost-effective applications. It employs a MEMS pressure sensor with a conditioning integrated circuit to provide accurate pressure data. An integrated analog-to-digital converter (ADC) provides digitized temperature and pressure sensor outputs via either a serial peripheral interface (SPI) (MPL115A1) or I²C (MPL115A2) port. Calibration data is housed in on-board ROM, is used by the host microcontroller to apply compensation algorithms to the raw sensor data and may be accessed at any time. Calibration data is typically accessed when the host micro first enables the sensor. The MPL115A1 operates as a SPI follower with bus speeds up to 8 Mbps. The MPL115A2 operates as a I²C target capable of bus speeds up to 400 Kbps (fast mode). Both versions are offered in a 5.0 mm x 3.0 mm x 1.2 mm max LGA package and are specified for operation from -40ºC to 105ºC. All packages are surface mount and RoHs compliant.
製品詳細
Features
Key Features
- Digitized pressure and temperature information together with programmed calibration coefficients for host micro use
- Factory calibrated
- 50 kPa to 115 kPa absolute pressure
- 1 kPa accuracy
- 2.375 to 5.5-volt supply
- Integrated ADC
- SPI or I²C Interface
- Monotonic pressure and temperature data outputs
- Surface mount RoHS compliant package
