Differential, Gauge and Absolute Pressure Sensor (0 to 200 kPa)

MPXx2202 アクティブ

The MPXx2202 family (MPX2202 series, MPXV2202G series, MPXM2202 series) of pressure sensors provides silicon piezoresistive devices for medical and industrial applications.

  • Offers a highly accurate and linear voltage output directly proportional to the applied pressure.
  • Includes a single monolithic silicon diaphragm with the strain gauge and a thin-film resistor network integrated on-chip
  • Delivers a laser-trimmed chip for precise span, offset calibration and temperature compensation

製品詳細

ブロック図

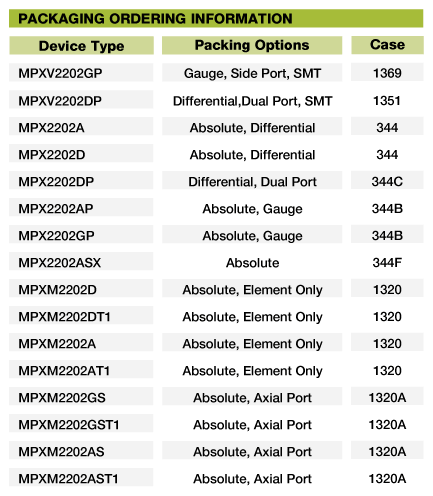

MPXX2202_BD

図を取得する PDF

Features

Key Features

  • Temperature compensated over 0 °C to +85 °C
  • Available in easy-to-use tape-in-reel and chip carrier package options
  • Available in absolute, differential and gauge configurations
  • Ratiometric to supply voltage
  • Gauge-ported and non-ported options

購入/パラメータ

7 結果

マッチしていない 5 NRND

パーツ

説明を表示

注文

コンピュータ支援設計 モデル

状況

標準価格

Ambient Operating Temperature (Min to Max) (℃)

統合化のレベル

出力タイプ

ポーティング

圧力測定タイプ

Pressure Range Min-max (MIN-MAX) (kPa)

Pressure Rating (MAX) (psi)

電源電圧 [最小] (V)

電源電圧 [最大] (V)

Supply Voltage [typ] (V)

MPX2202DP
データ・シート

アクティブ

1K @ US$9.13

-40 to 125

compensated

analog

dual side ports

differential

0 - 200

29

1

16

10

MPX2202GP
データ・シート

アクティブ

1K @ US$7.48

-40 to 125

compensated

analog

side port

gauge

0 - 200

29

1

16

10

MPXM2202D
データ・シート

アクティブ

1K @ US$6.89

-40 to 125

compensated

analog

unported

differential

0 - 200

29

1

16

10

MPXM2202GS
データ・シート

アクティブ

1K @ US$5.62

-40 to 125

compensated

analog

axial port

gauge

0 - 200

29

1

16

10

MPXV2202DP
データ・シート

アクティブ

1K @ US$8.14

-40 to 125

compensated

analog

dual side ports

differential

0 - 200

29

1

16

10

MPXV2202GC6
データ・シート

置き換え部品: MPXV2202DP

アクティブ

1K @ US$7.20

-40 to 125

compensated

analog

axial port

gauge

0 - 200

29

1

16

10

MPXV2202GC6U
データ・シート

置き換え部品: MPXV2202GC6

アクティブ

1K @ US$7.20

-40 to 125

compensated

analog

axial port

gauge

0 - 200

29

1

16

10
