SynchronicIT SFM10-KIT: UWB Evaluation Kit for Trimension™ OL23D0

SFM10-KIT

画像にカーソルを合わせると拡大表示されます。

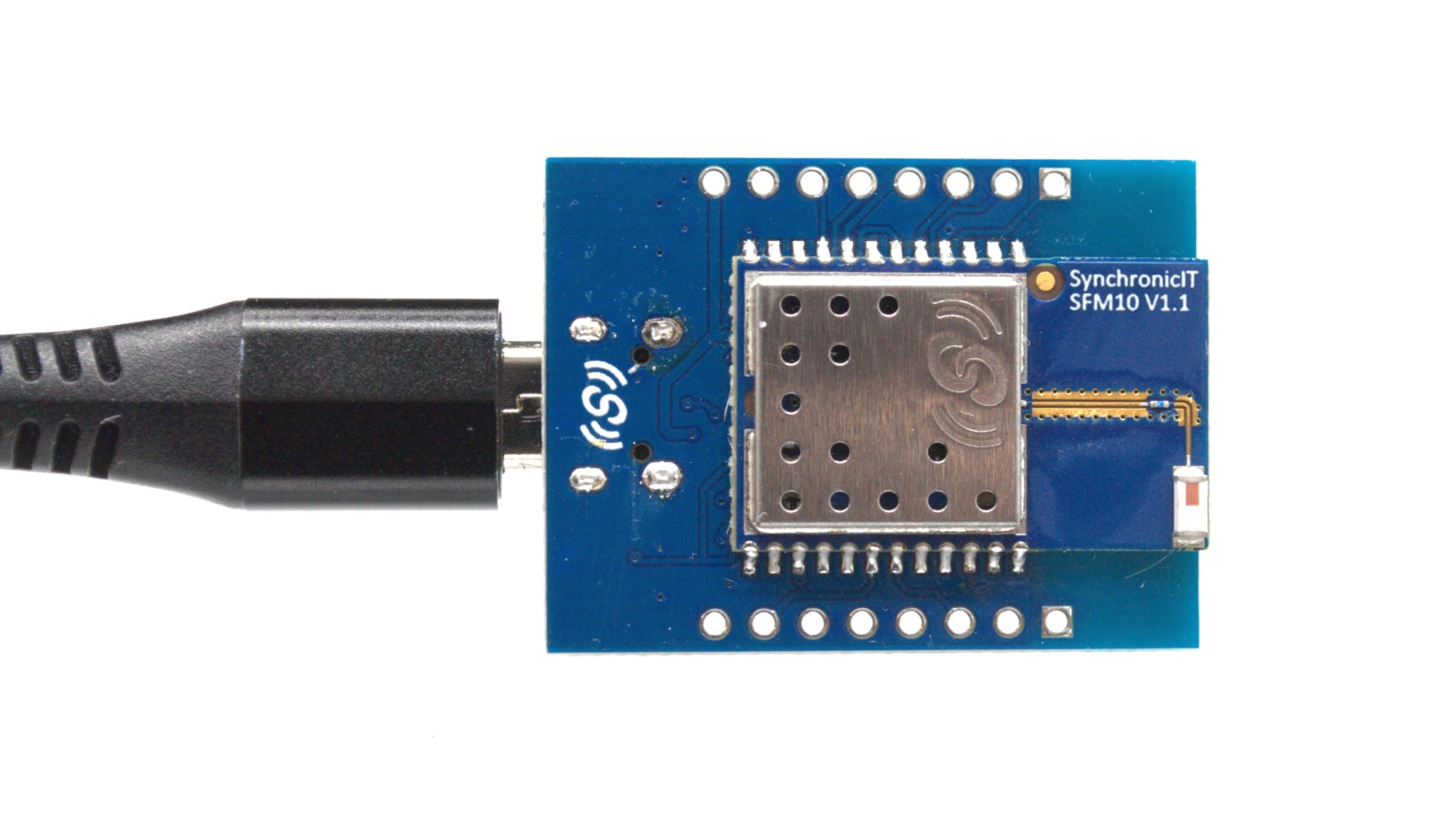

The SFM10-KIT comes with six SFM10-DEV development boards to evaluate the flexible SFM10-MOD module based on the fully integrated and programmable NXP Trimension™ OL23D0. The SFM10-KIT has easy-to-use hardware and software to control the radio and communication interfaces which allows to create host-free UWB solutions that fit your needs with the least amount of effort and cost. The kit will help you to explore the full potential of UWB.

対応製品

ワイヤレス・コネクティビティ

Trimension® UWB

  • OL23D0: Trimension™ OL23D0: Fully Customizable UWB Controller for IoT

Features

On-Board Component

  • Trimensio™ OL23D0: Fully Customizable UWB Controller for IoT
  • Ceramic antenna

Host Interface

  • USB, UART, SPI

Antenna

  • Ceramic

Key Features

  • Programmable via USB
  • Free application development software
  • Simple, clear programming environment
  • Tutorials for the novice programmer
  • Single-chip UWB solution (host-free)
  • (Battery) optimized low-power modes
  • High accuracy distance measurement
  • SPI, UART, and (software) I2C compatible

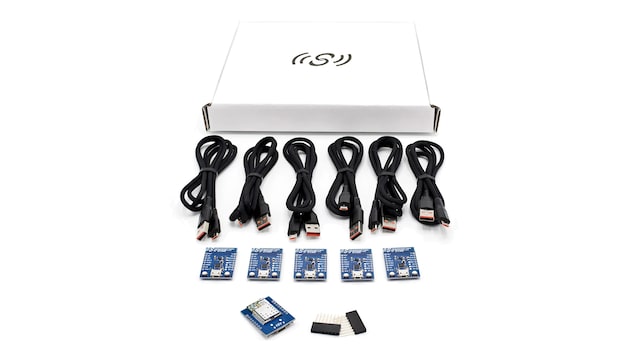

Kit Content

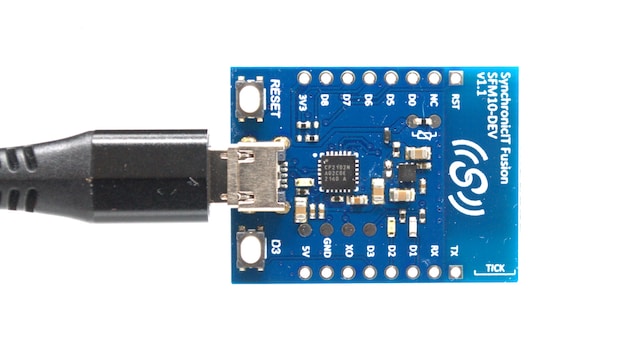

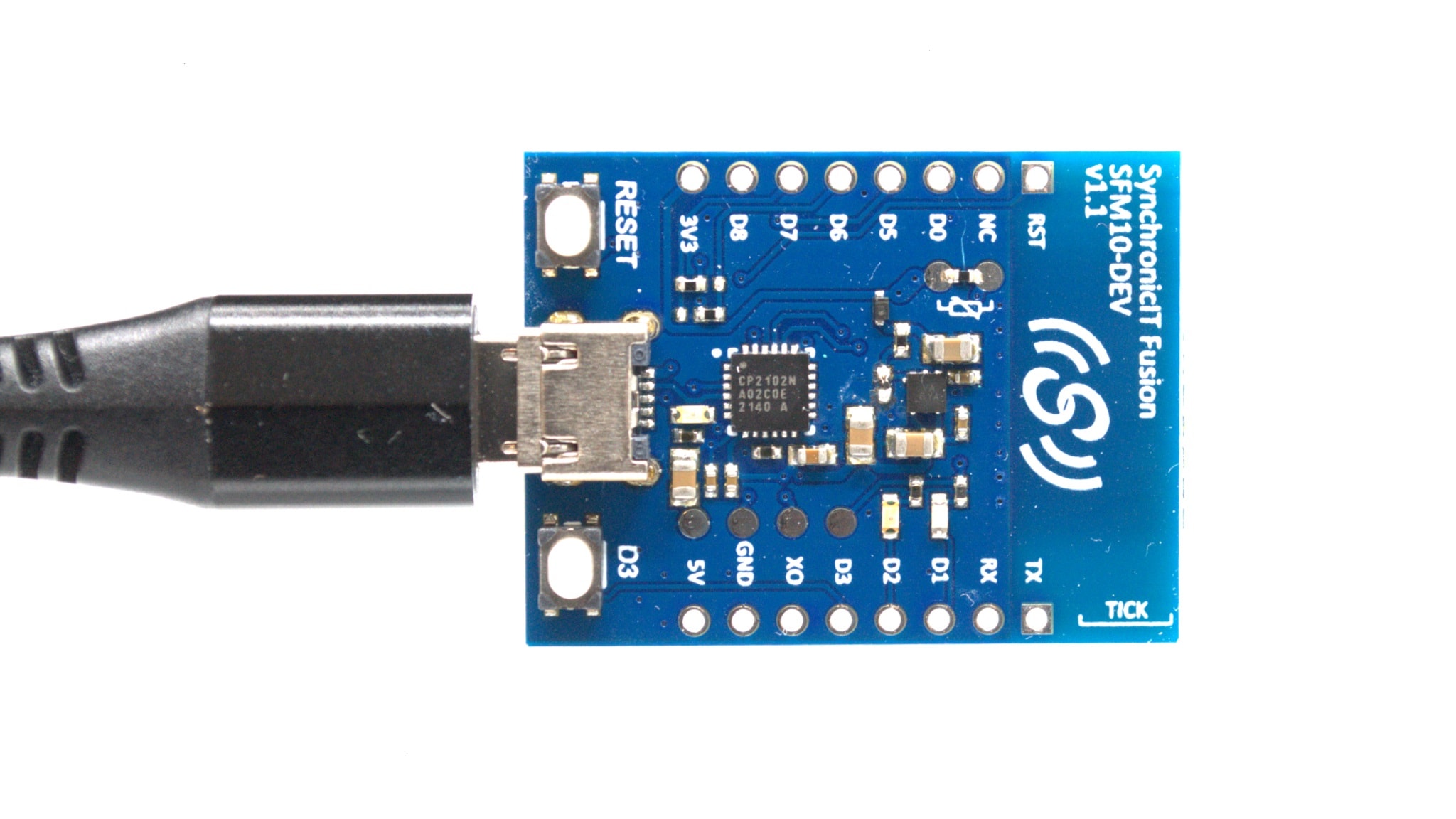

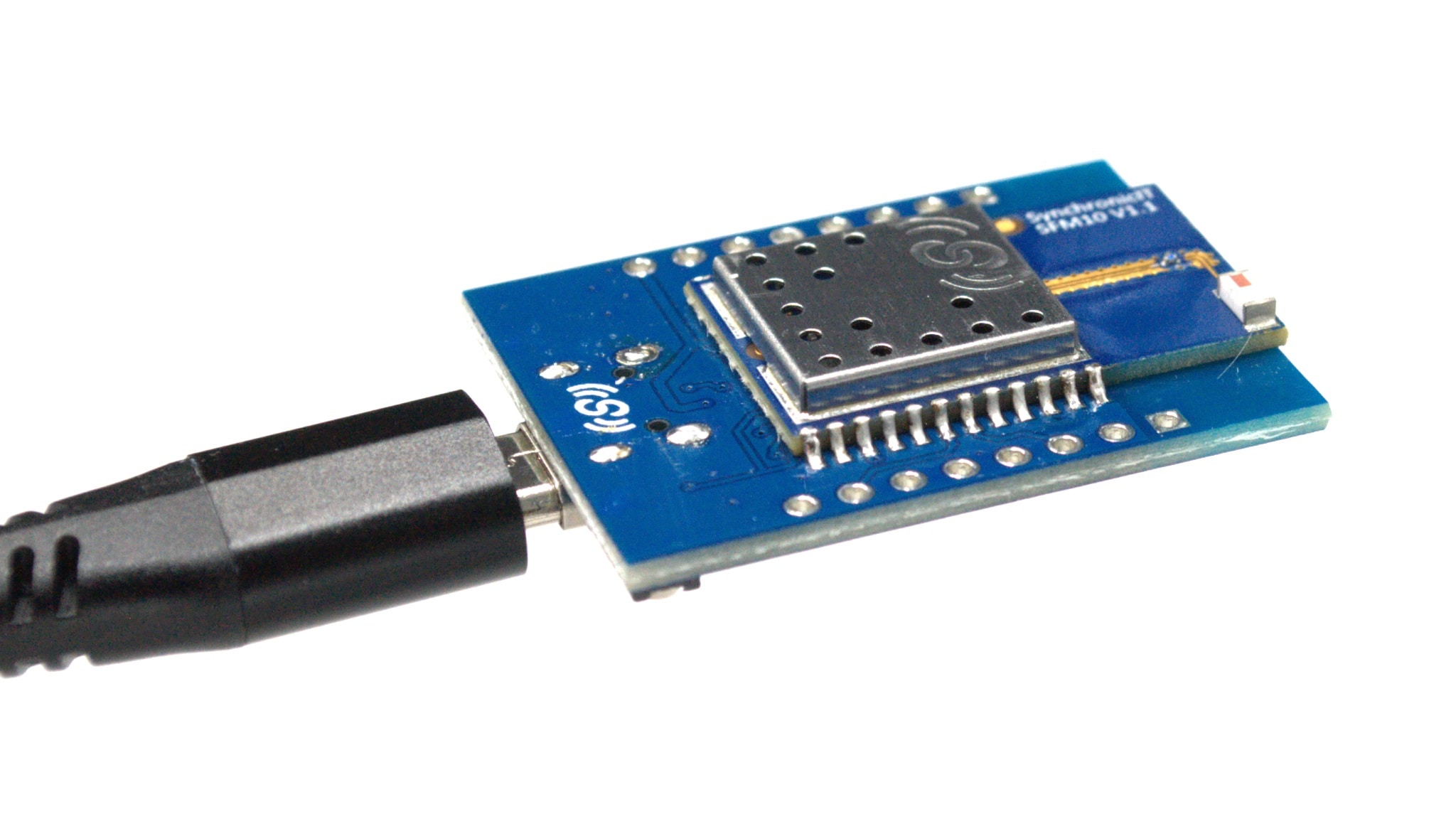

  • 6x SFM10-DEV development boards featuring NXP Trimension OL23D0
  • 6x USB cables

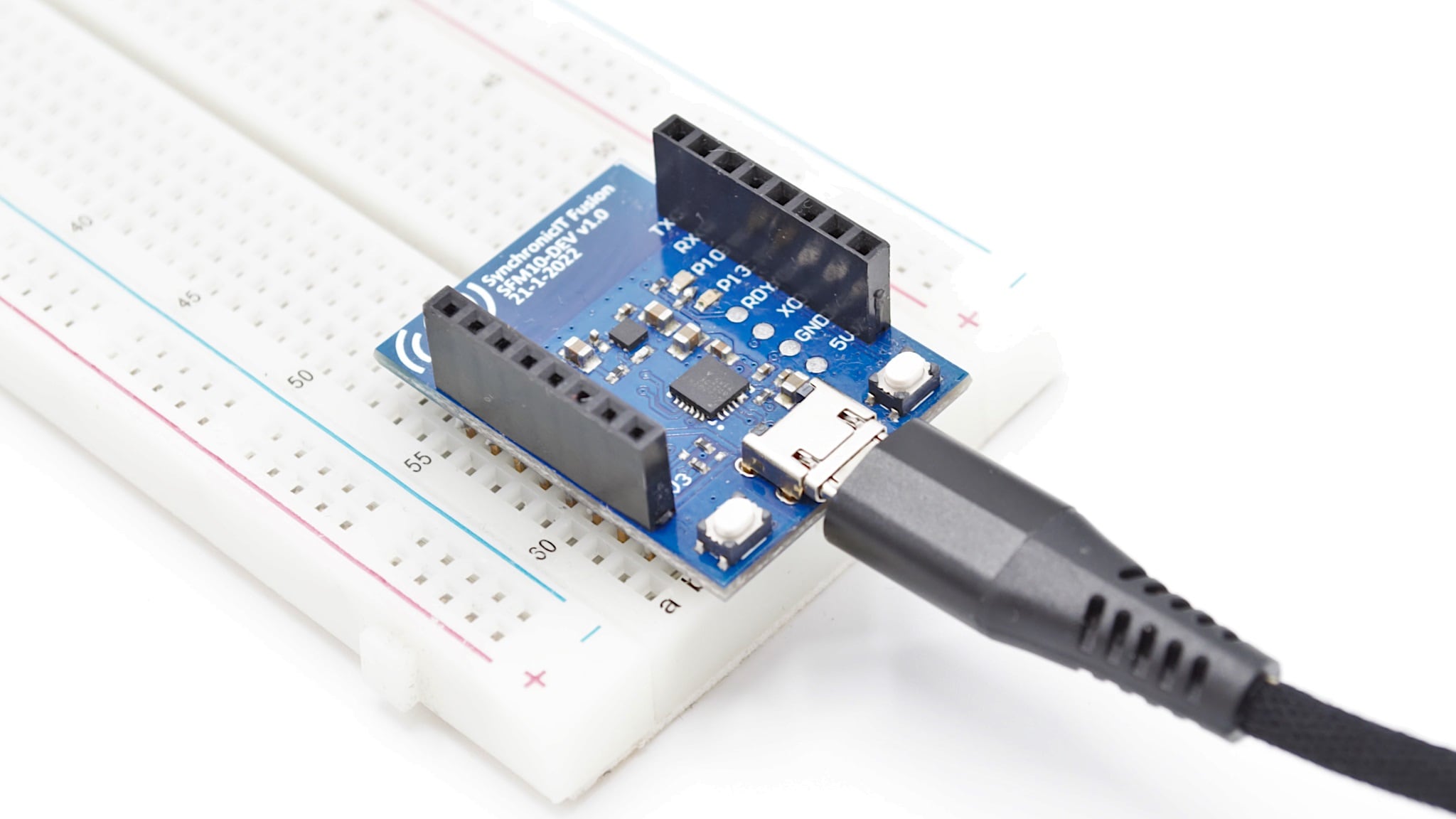

  • 6x pairs of 8-pin stackable headers
  • Quick start guide with tutorial activation code
  • Online documentation and examples
  • Downloadable SDK

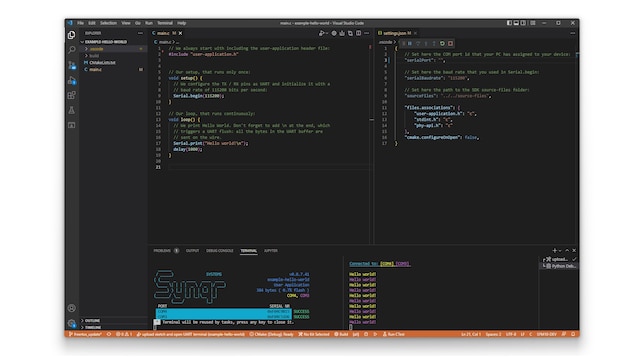

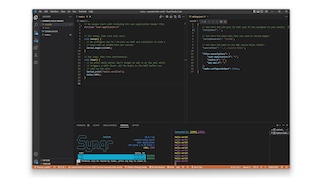

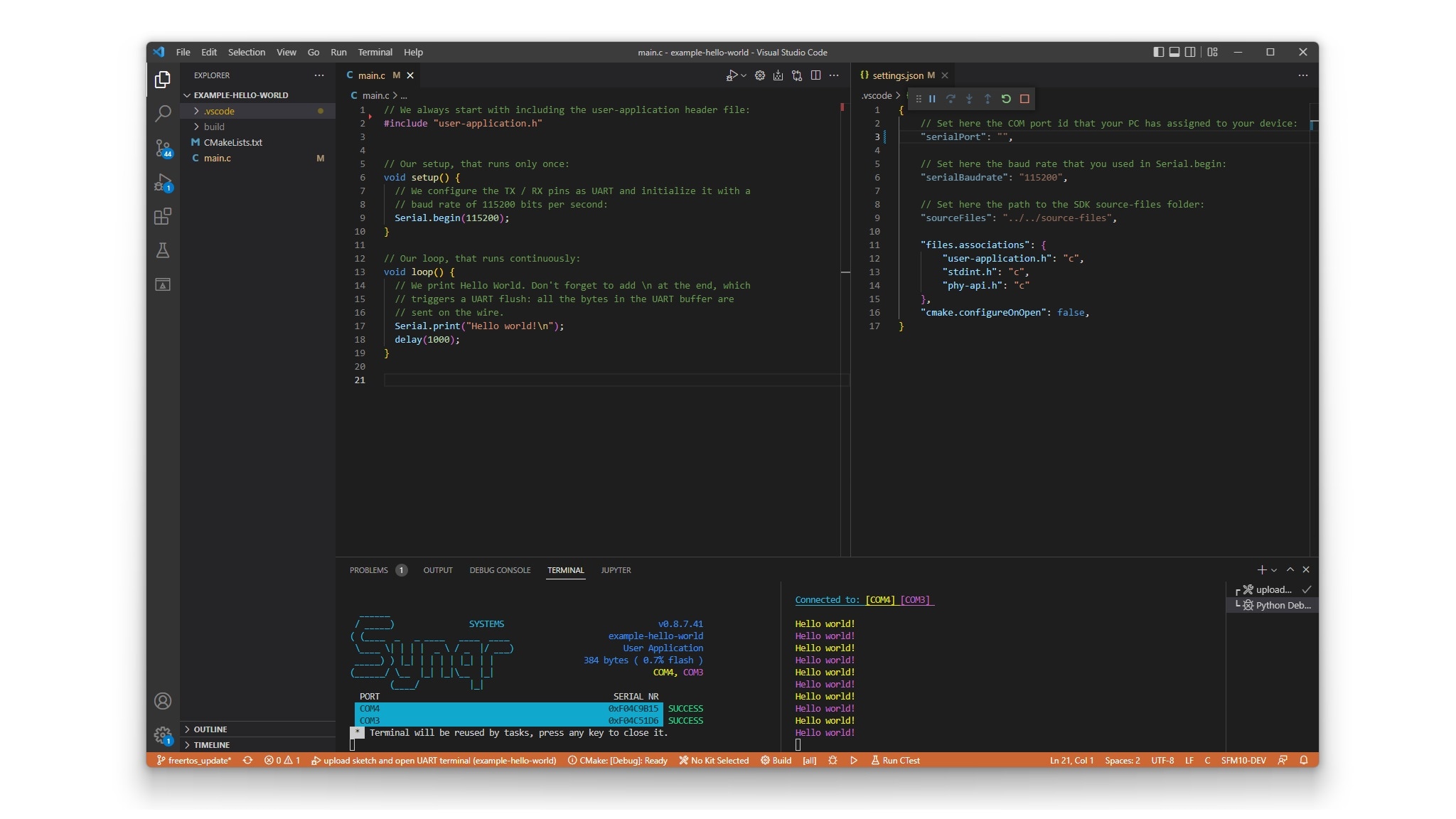

Software

  • SDK based on ARM GNU Toolchain, CMake, Ninja, Python, and Microsoft Visual Code
  • Documentation
  • Examples
  • Tutorials

Buy Options

Click to expand

  • SFM10 Evaluation Kit

    via SynchronicIT

    • Six SFM10-DEV boards
    • Six USB micro cables (1m)
    • Six pairs of stackable 8-pin headers
    • Tutorial activation code

Click to expand

  • SFM10 Evaluation Kit

    via Future Electronics

    • Six SFM10-DEV boards
    • Six USB micro cables (1m)
    • Six pairs of stackable 8-pin headers
    • Tutorial activation code
