5G Massive MIMO
Advanced receive and transmit solutions are the foundation of all wireless communication systems. Massive MIMO systems are expanding for base station design. 5G systems are operating at much higher frequencies than previous cellular network generations. These systems must be more efficient, highly integrated, and smaller, while simultaneously achieving greater capability in virtually every benchmark of performance.
アプリケーションの詳細
ブロック図
の推奨製品です。:
RF Hardware for 5G Massive MIMO Base Transceiver Stations
ブロックを選択すると、推奨製品が表示されます。.
Pre-Drivers
- AFLP5G25641: 2300-2700 MHz, 32 dB, 29 dBm Airfast® Pre-driver Module
- AFLP5G35645: 3400-3800 MHz, 32 dB, 29 dBm Airfast® Pre-driver Module
- BTS6201U: 5G Massive MIMO Pre-driver
- BTS6302U: 5G Massive MIMO Pre-driver
PAM

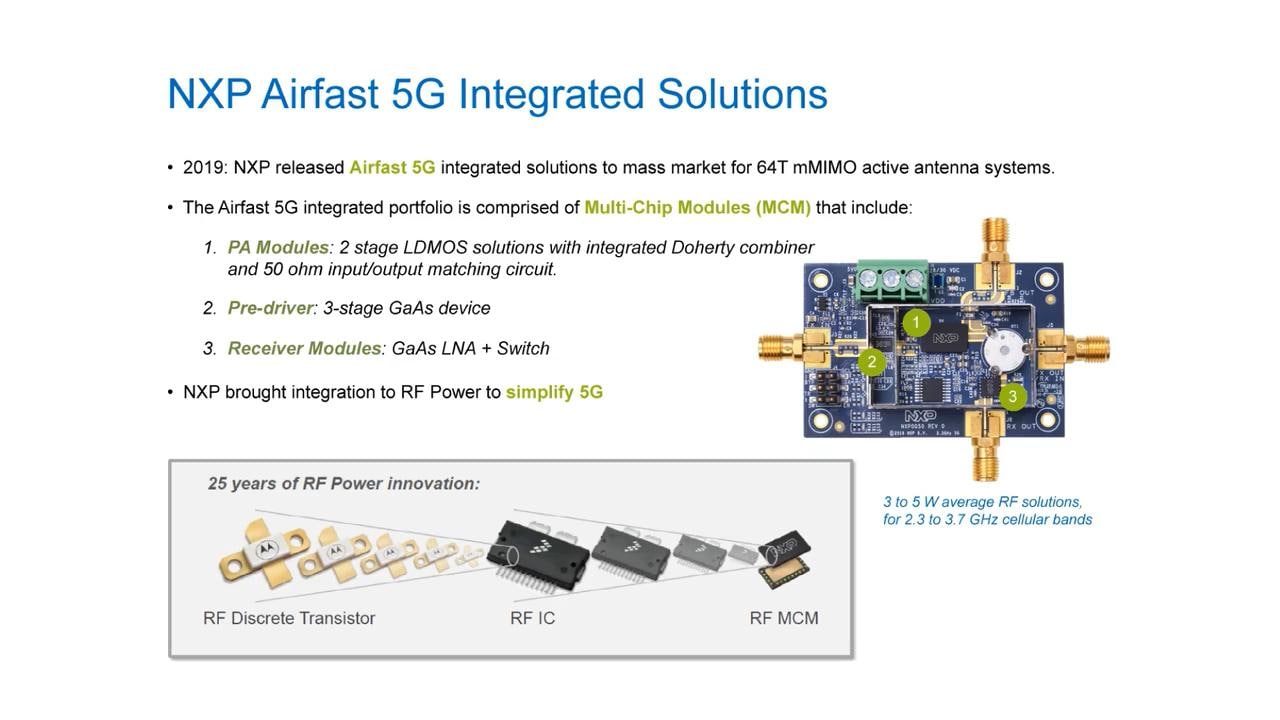

- 5G統合ソリューション: 5G統合ソリューション
Receiver
- AFRX5G272: 2300-2690 MHz, 33 dB, 1.2 dB NF Airfast® RX Module
- AFRX5G372: 3300-5000 MHz, 34 dB, 1.4 dB NF Airfast® RX Module
- BTS7203H: 2.3 GHz-2.7 GHz RX Analog Front-end IC
- BTS7203U: 3.3 GHz-4.2 GHz RX Analog Front-end IC
- BTS7205H: 2.3 GHz-2.7 GHz RX Analog Front-end IC with Bypass
- BTS7205U: 3.3 GHz-4.2 GHz RX Analog Front-end IC with Bypass
