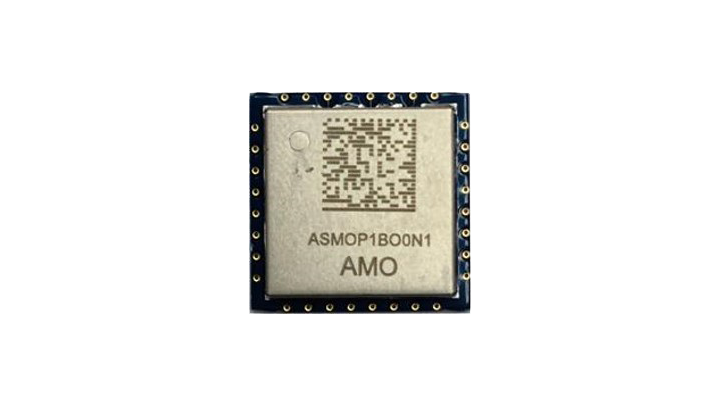

Trimension™ SR150 module without antennas: ASMOP1BO0N1

ASMOP1BO0N1

画像にカーソルを合わせると拡大表示されます。

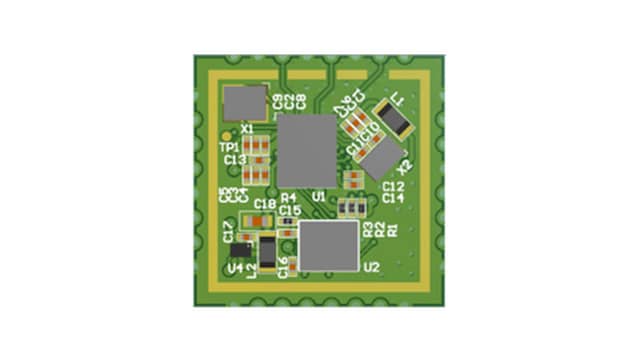

Based on NXP's SR150 Ultra-Wideband (UWB) transceiver IC, this Amotech module gives highly precise positioning and secure ranging for IoT devices. This IEEE 802.15.4z UWB compliant module allows the location of objects in real time location systems (RTLS) to a secure range precision of 10cm and an angle precision of 3 degree. The integrated wireless transceiver IC, antenna, power management and clock control simplifies the design integration, and eliminates RF design requirements. The module's low power consumption allows operation from batteries for long periods.

製品詳細

Features

Secure Ultra-Wideband (UWB)

  • SR150: Trimension™ SR150: Reliable UWB solution for IoT Devices
  • SE051W: EdgeLock® IoT Secure Element product family for secure UWB ranging in IoT

Size

  • 13 mm x 18 mm x 2.0 mm

On-board component

  • DC2DC converter, level shifter

Host Interface

  • SPI

Other Interfaces

  • GPIO

UWB IC

Antenna

  • External
