DEMO9RS08KA2 Demonstration Board

DEMO9RS08KA2 アクティブ

画像にカーソルを合わせると拡大表示されます。

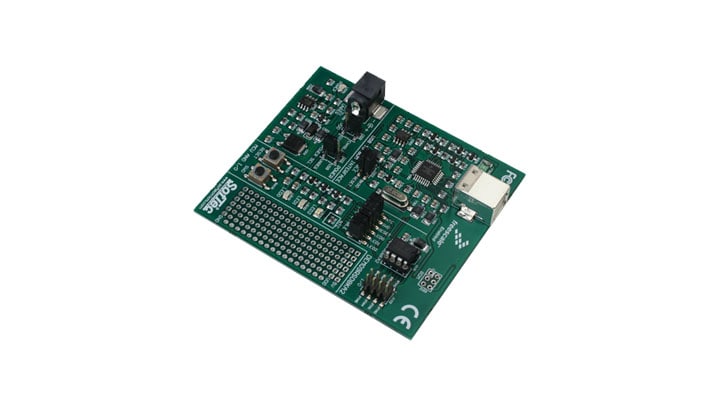

The cost effective DEMO9RS08KA2 demo board is the first development tool supporting the NXP® RS08 architecture. The DEMO9RS08KA2 board’s built-in circuitry and USB programmer interface included reduces hardware interface development time and allows faster code evaluation.

製品詳細

対応製品

プロセッサ＆マイクロコントローラ

8ビットレガシMCU

  • RS08KA: 8-bit General Purpose Ultra-Low-End Market KA MCUs

Features

Microcontroller

  • 8 pin Dip RS08KA2 microcontroller

Connectivity

  • GPIO header connector 4x2 pin
  • Built in USB BDM interface
  • BDM header connector

Power Management

    Power input selector

  • USB up to 500 mA
  • Power Connector 9 VDC typical (7 V-18 V)

User Components

  • 2 Push Switches circuitry: 1 user, 1 Reset
  • 4 LED circuitry connections: 3 user, 1 VDD

購入オプション

DEMO9RS08KA2-Image

クリックして展開

  • DEMO9RS08KA2
    アクティブ

  • DEMO9RS08KA2.

    • DEMO9RS08KA2 Board
    • CodeWarriorTM Development Studio and Service pack CDs
    • USB Cable
    • Quick Start Guide
    • User Manual
    • Packing List
    • 3 additional samples of 8-pin PDIP 9RS08KA2 microcontroller
