FRDM-PWRSTG1EVB
アクティブ -
Three-Phase Motor Driver Evaluation Board Power Stage Expansion.
- FRDM-PWRSTG Freedom Accessory Board
Related Hardware
クイック・リファレンス ボードタイプ.
- アナログ・ツールボックス
- FRDM-PWRSTG | GD3000 | Motor Control
Freedom Accessory Boards for FRDM-GD3000EVB

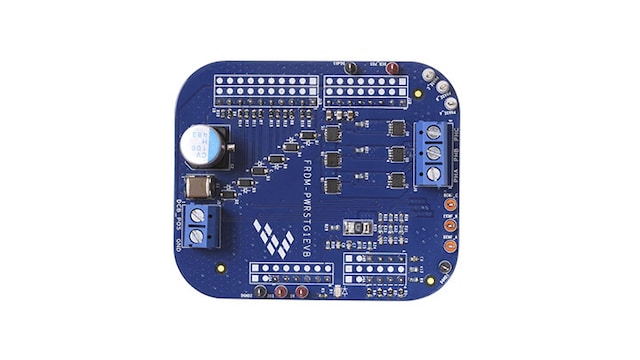

The FRDM-PWRSTG Freedom Accessory Board is an easy-to-use circuit board that allows the user to exercise all the functions of the GD3000 pre-driver to drive a brushless DC motor. It interfaces between the FRDM-GD3000EVB and the load.

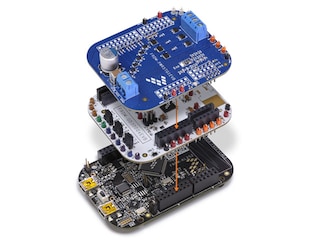

The FRDM-PWRSTG is designed to be used in conjuction with a FRDM-GD3000EVB Freedom Expansion Board. Each FRDM-PWRSTG is geared toward a different type of application. Both a FRDM-GD3000 and a FRDM MCU board are required for full functionality of the FRDM-PWRSTG.
Used in conjunction with the FRDM-KL25Z, SPI Generator (SPIGen) may be used to demonstrate certain limited functions of the device.
The PSMN4R2-30MLD is a logic level gate drive N-channel enhancement mode MOSFET in LFPAK33 (3.3 x 3.3 mm) package.
This MOSFET belongs to the NextPowerS3 portfolio utilizing NXP's “SchottkyPlus” technology which delivers high efficiency, low spiking performance suited to high efficiency applications at high switching frequencies. Check the PSMN4R2-30MLD datasheet.
製品詳細
対応製品
パワーマネージメント
BLDC、Hブリッジ、ステッパ
- GD3000: 3-Phase Brushless Motor Pre-Driver
Features
Connectivity
- Compatible with Our KV series Freedom Development Platforms
- Compatible with the FRDM-GD3000EVB Freedom Expansion Board
- Output connectors to accommodate external loads
Power Management
- LEDs to indicate the voltage supply status
General Specifications
- Test points to allow probing of signals
購入オプション
ドキュメント
クイック・リファレンス ドキュメンテーションの種類.
設計・リソース
デザイン・ファイル
クイック・リファレンス
設計・ファイルの種類.
1 設計・ファイル
-
プリント基板と回路図
FRDM-PWRSTG1EVB - Printed Circuit Board bill of materials and design files
