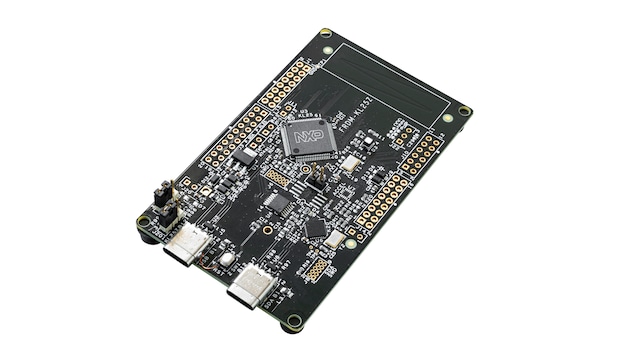

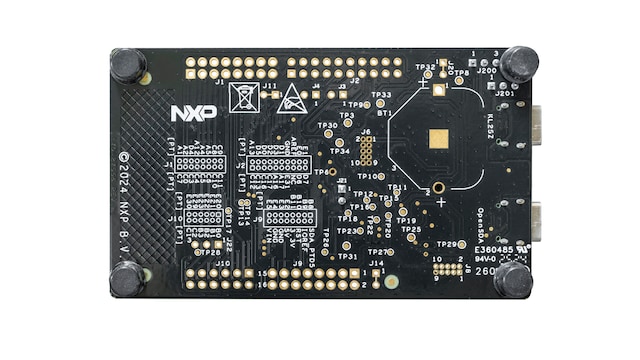

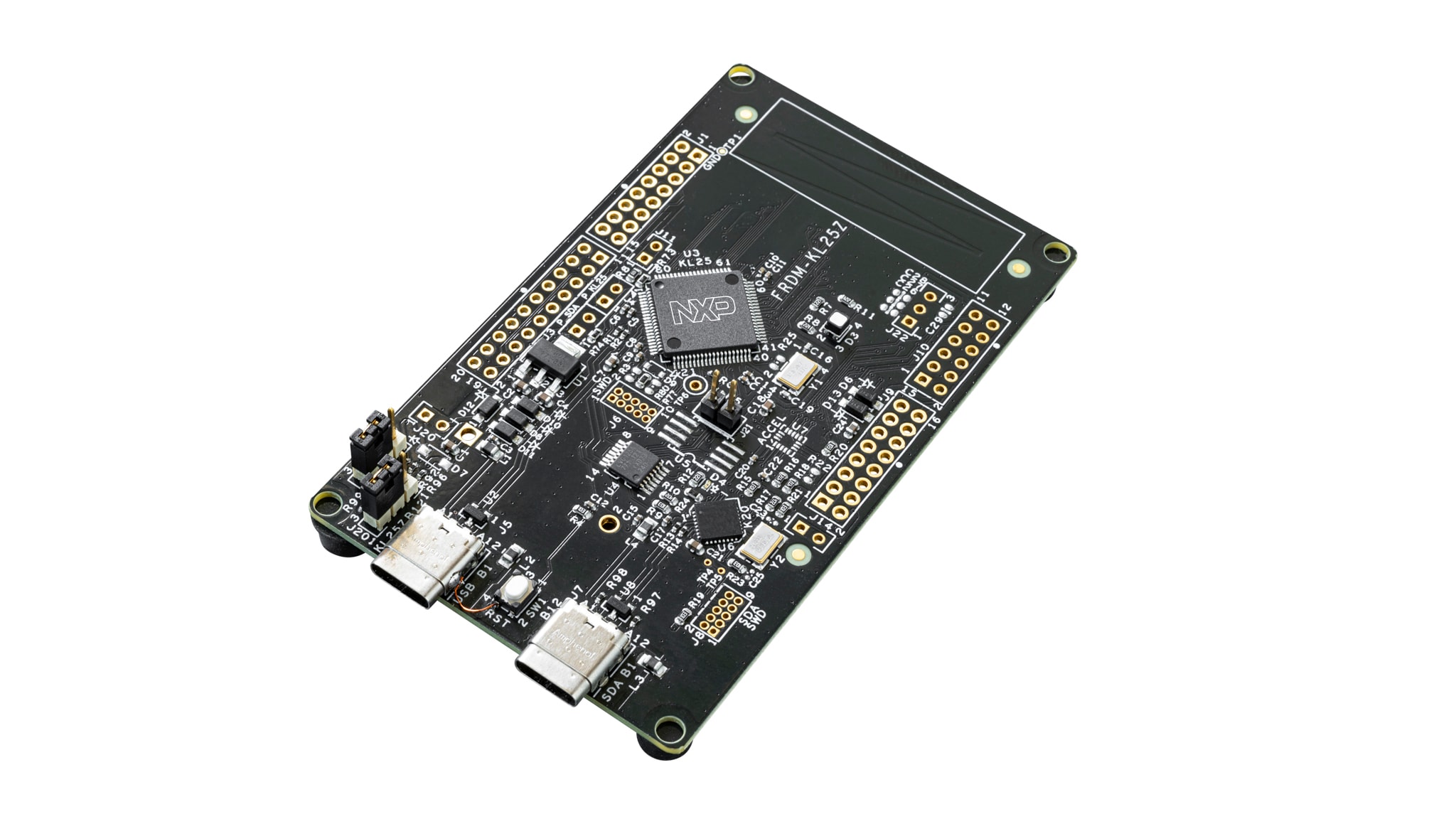

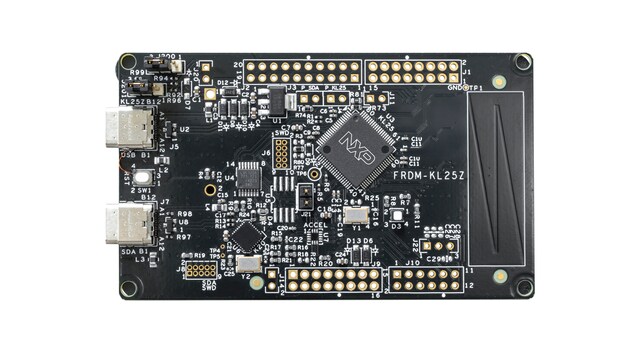

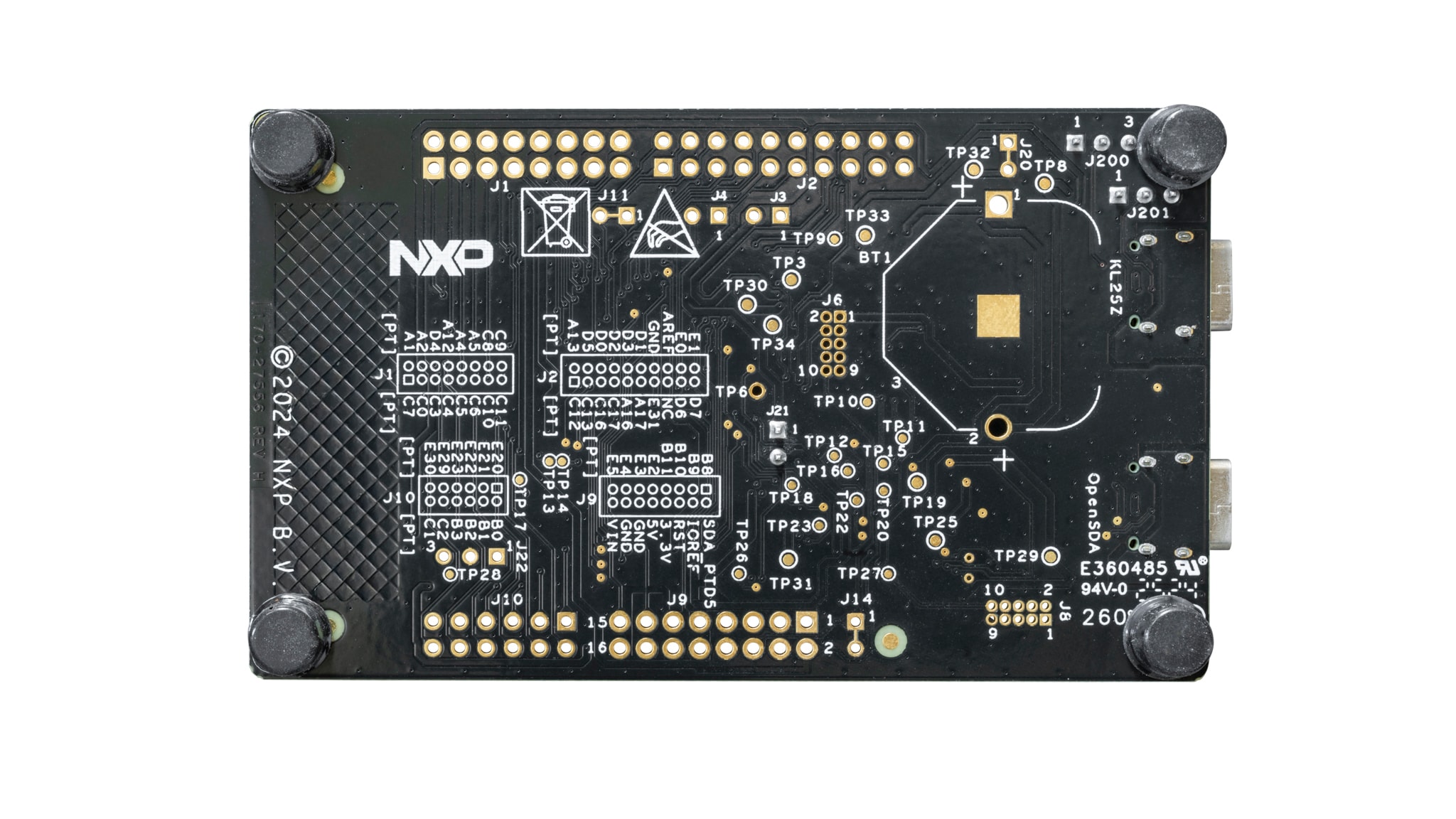

Kinetis® KL14/KL15/KL24/KL25 MCU向けFreedom開発プラットフォーム

FRDM-KL25Z アクティブ

画像にカーソルを合わせると拡大表示されます。

Freedom KL25Zは、Arm® Cortex®-M0+プロセッサに基づいて構築されたKinetis® LシリーズKL1x (KL14/15) およびKL2x (KL24/25) MCU向けの超低コスト開発プラットフォームです。

  • MCU I/Oへの容易なアクセス、バッテリー電源への対応、低消費電力動作、拡張ボード・オプションを備えた標準規格準拠のフォーム・ファクタといった特長に加え、フラッシュ・プログラミングおよび実行制御用のデバッグ・インターフェースを内蔵しています。
  • FRDM-KL25Zは、NXP®およびサード・パーティのさまざまな開発ソフトウェアによりサポートされています。
  • これにより、mbed.orgを無償で利用でき、またオンラインのソフトウェア開発キット (SDK)、ツール、再利用可能コード（ダウンロード、インストール、ライセンスが不要）、そして活発な開発者コミュニティへ完全にアクセスできるようになります。

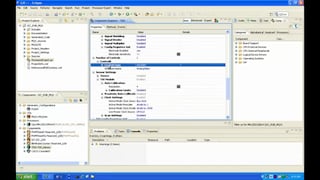

  • 低電圧Hブリッジ製品用Processor Expert®コンポーネントは、組込みアプリケーションの開発を迅速化します。
  • FRDM-KL25ZはZephyr OSによってサポートされ、無料のオープン・ソースの組込みオペレーティング・システムを使用したIoT (Internet of Things) 開発が可能になります。詳細については、こちらをクリックしてください。

製品詳細

特長

MKL25Z128VLK4 MCU

  • 48 MHz
  • 128 KBフラッシュ
  • 16 KBのSRAM
  • 80LQFP

センサ

  • 静電容量式タッチ・スライダ
  • MMA8451Q加速度センサ

デバッグ

  • 高機能OpenSDAデバッグ・インターフェース
  • オープン・ソースのデータ・ロギング・アプリケーションは、顧客、パートナー、および愛好家によるOpenSDA回路の開発例を提供
  • 実行制御デバッグとIDEツールとの互換性を提供するP&Eマルチリンク・インターフェース

コネクティビティ

  • MCU I/Oへの容易なアクセス

ツール＆OSサポート

  • Arm® Mbed™対応
  • Zephyr® OSによるサポート
  • マス・ストレージ・デバイスのフラッシュ・プログラミング・インターフェース（デフォルト）：デモ・アプリケーション評価のためのツールのインストールが不要

ユーザー・コンポーネント

  • 3色LED

購入オプション

FRDM-KL25Z-Image

クリックして展開

  • FRDM-KL25Z
    アクティブ

  • Freedom Development Board for Kinetis KL14, KL15, KL24 and KL25 MCUs.

  • キットの同梱物：

    • FRDM-KL25Zハードウェア
    • クイック・リファレンス・カード
    • 別途追加が必要なハードウェア：USBケーブルA-miniBタイプ（別途販売）
  • $19.25 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 88
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
