Evaluation Kit - MM9Z1J638, Battery Sensor with CAN/LIN

KIT9Z1J638EVM アクティブ

画像にカーソルを合わせると拡大表示されます。

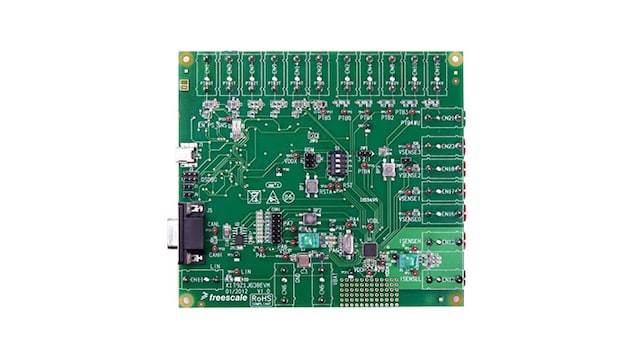

The NXP KIT9Z1J638EVM is a hardware tool for evaluation and development, ideal for rapid prototyping of MCU based applications for current, voltage and temperature sensing.

  • The KIT9Z1J638EVM is a simple, yet sophisticated design featuring a battery sensor with CAN and LIN
  • It features a MM9Z1J638, integrating a S12Z MCU and a SMARTMOS® analog control IC into a single package solution
  • Refer to the 4-cell lithium battery reference design for an example of a 4 voltage, 4 temperature and one current sensing application that can be leverage for other sensing applications

対応製品

パワーマネージメント

バッテリー・センサ

  • MM9Z1_638: CAN/LIN対応バッテリー・センサ

Features

Key Features

  • LED indicators
  • Onboard BDM connection via open source OSBDM circuit using the MC9S08JM60 MCU

Sensors

  • Five external temperature sensor inputs with internal supply for external sensors

Connectivity

  • Embedded msCAN protocol and external high-speed CAN physical layer (MC33901)
  • LIN interface
  • Customizable GPIOs for voltage and temperature sensing
  • Support for USB multilink interface BDM

Power Management

  • Wide range battery current measurement; on-chip temperature measurement
  • Four battery voltage measurements with internal resistor dividers, and up to five direct voltage measurements for use with an external resistor divider
  • Measurement synchronization between voltage channels and current channels
  • Low-power modes with low-current operation

購入オプション

KIT9Z1J638EVM-Image

クリックして展開

  • KIT9Z1J638EVM
    アクティブ

  • Evaluation Kit - MM9Z1_638 Battery Sensor with CAN and LIN.

    • KIT9Z1J638EVM Hardware
    • Cable, USB A-M to B-M mini
    • Quick Reference Guide
  • $242.65 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
