KITPF5302FRDMEVM 15 A Core Regulator Evaluation Board

KITPF5302FRDMEVM

画像にカーソルを合わせると拡大表示されます。

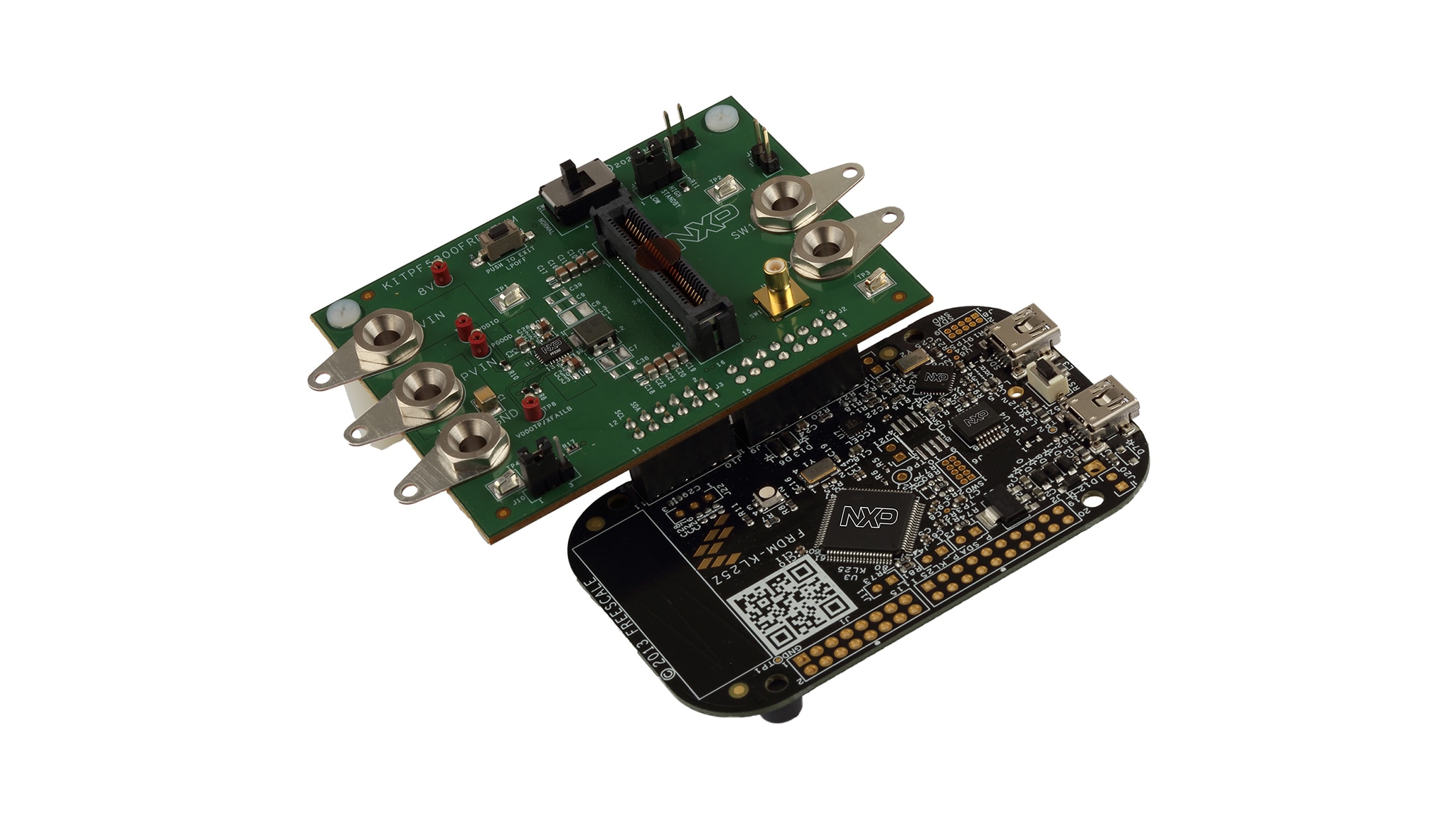

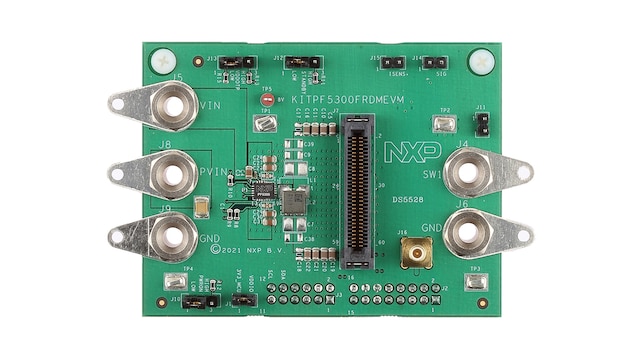

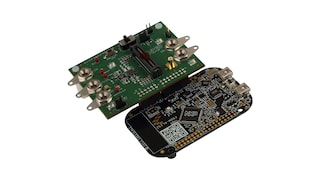

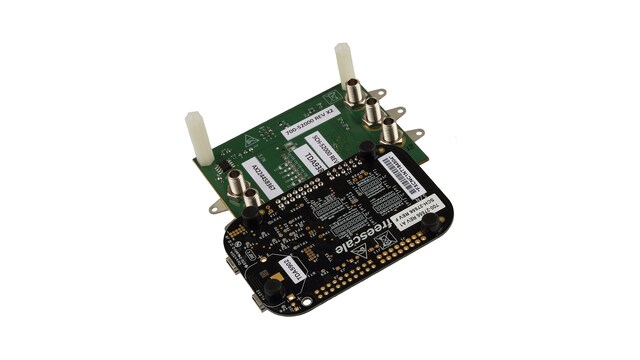

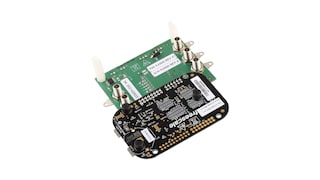

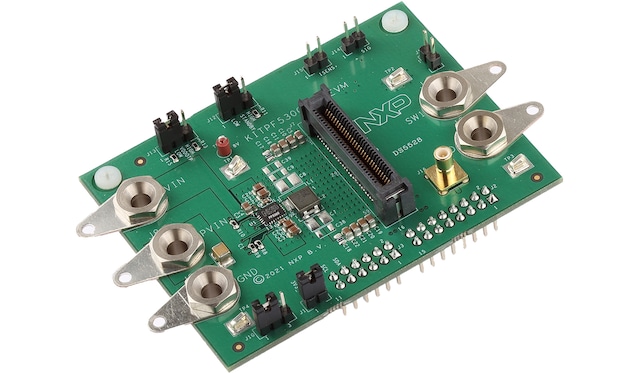

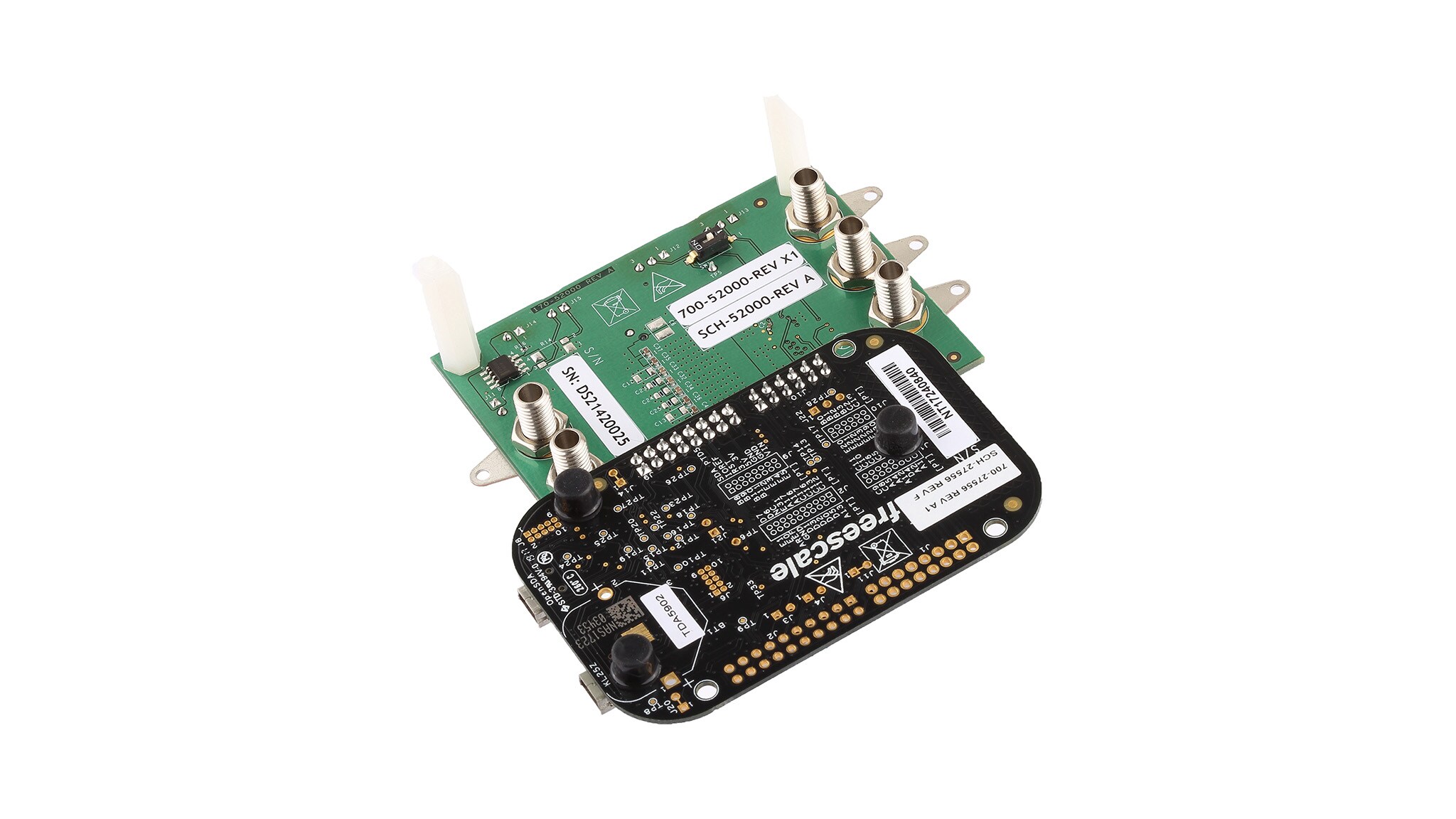

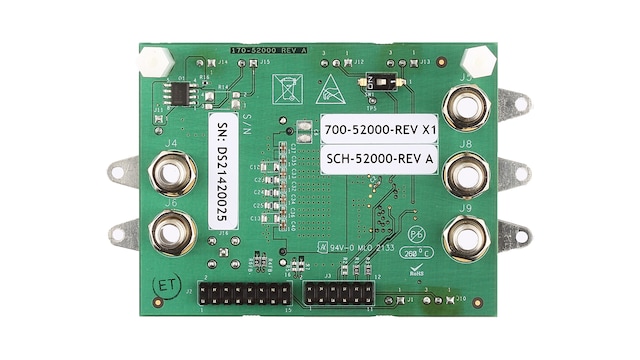

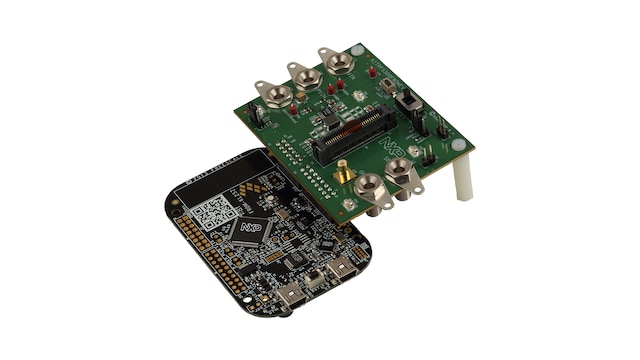

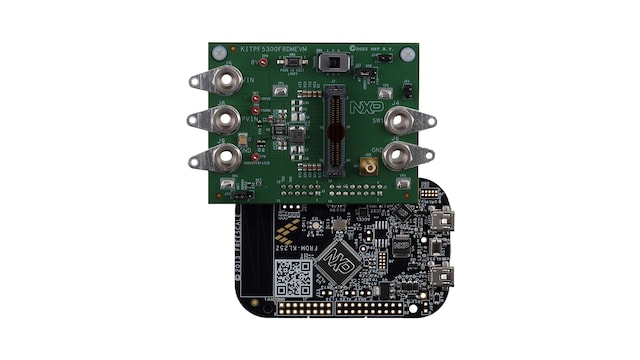

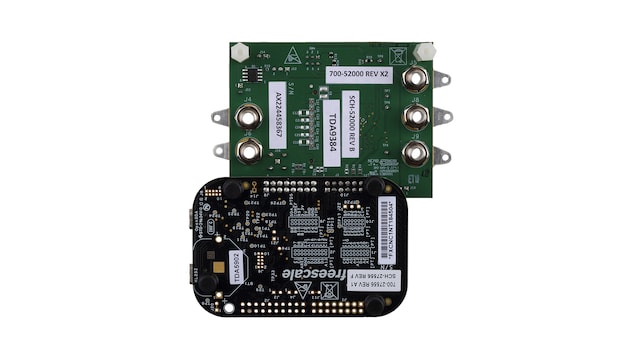

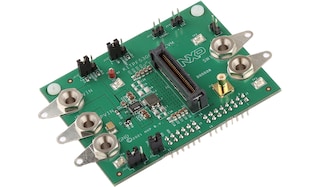

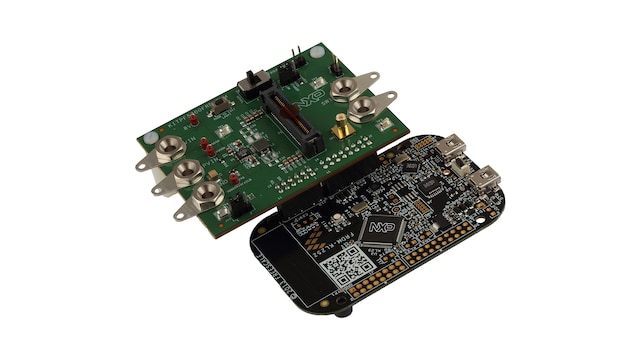

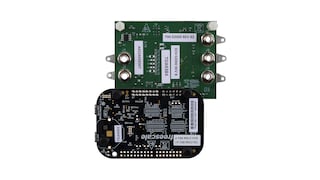

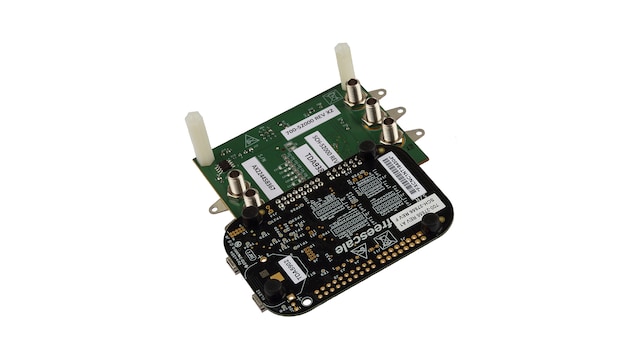

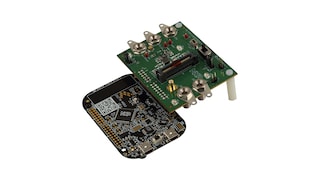

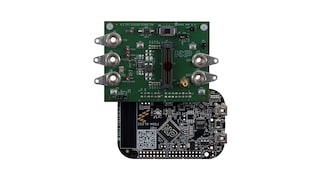

The KITPF5302FRDMEVM is a customer evaluation board/kit featuring the PF5302 core regulator IC.

The kit integrates all hardware needed to fully evaluate the featured power management integrated circuit. It integrates a communication interface based on the FRDM-KL25Z freedom board to interface with the NXP GUI software to fully configure and control the PF5302 PMIC. It can also be used to evaluate the PF5300 and PF5301.

対応製品

パワーマネージメント

PMIC

  • PF53: AVPとウォッチドッグを備えた12 A/8 A/15 Aコア電源レギュレータ

Features

PMICs

  • PF5300
  • PF5301
  • PF5302

Features

  • High current core supply
  • OTP programmable
  • Fit up to ASIL D level

Connectivity

  • High-speed I²C through KL25Z

Jumpers and Switches

  • PMIC enable and IO control

購入オプション

KITPF5302FRDMEVM-Image

クリックして展開

  • KITPF5302FRDMEVM
    アクティブ

  • KITPF5302FRDMEVM 15 A Core Regulator Evaluation Board.

  • Kit Contains

    • Assembled and tested evaluation board and preprogrammed FRDM-KL25Z microcontroller
    • 3.0 ft USB-STD A to USB-B-mini cable
    • Jumpers mounted on board
  • $176.50 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 13
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
