MAPS-56F84000 Evaluation Suite

MAPS-56F84000

画像にカーソルを合わせると拡大表示されます。

The MAPS-56F84000 evaluation suite is a full-featured, multi-function development platform for the 56F84xxx digital signal controller (DSC). This suite includes a controller board with MC56F84789VLL on board and a motor control driver board which can drive dual PMSM motor at the same time. Use this suite to evaluate the exciting performance of NXP’s powerful DSC products customized for motor control applications.

製品詳細

ブロック図

図を選択する。:

MC56F84XX Digital Signal Controllers Block Diagram

MC56F84XX Digital Signal Controllers Block Diagram

MAPS-56G84000 controller board

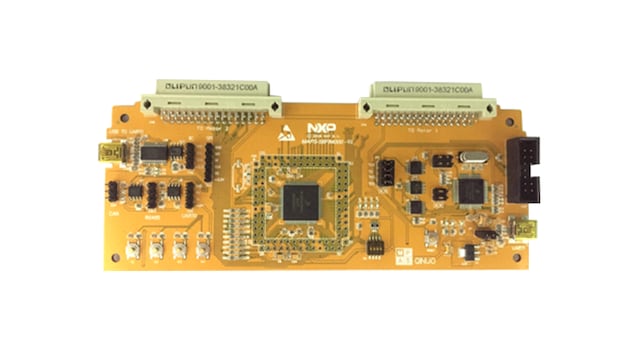

MAPS-56F84000 controller board

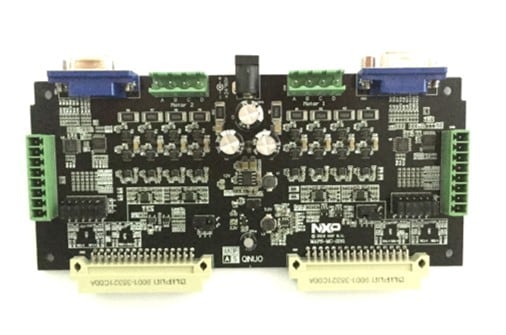

MAPS-MC-2IN1 dual motor driver board

Get to know the MAPS-MC-2IN1 dual motor driver board
図を取得する PDF

Features

MCU

  • 32-bit DSC 56F84xxx, up to 100 MHz, 256 KB Flash, 32 KB SRAM, 1.8 to 3.6 V, -40 to 105°C, 100 LQFP
  • 32KB FlexMemory which can work as extra 32 KB Flash or 2 KB EEPROM
  • 8 channel 312ps high resolution PWM + 8 channel std PWM
  • 2x high speed 12-bit ADC, 16-bit SAR ADC, 4x Analog Comparator, 12-bit DAC
  • Inter-module crossbar, AOI logic operation unit

Resource

  • Support two PMSM/BLDC/Servo motor at the same time
  • Provide free sample code for general function evaluation of the controller
  • Provide free sample code for dual 3-phase motor control
  • Controller board with all kinds of communication interfaces, include SPI, I²C, UART, CAN, RS485, UART to USB
  • Driver board include two motor control driver circuit, each with four driver bridge, to support single 3-phase circuit or two 2-phase circuit. Each driver circuit include 3-phase current detection circuit, over current protection circuit, encoder interface, hall sensor interface and DB15 motor position sensor interface

Interface

  • On board OSBDM debug through USB interface, no need external debugger
  • Also support debugger through JTAG interface with PEMicro Multilink Universal debugger
