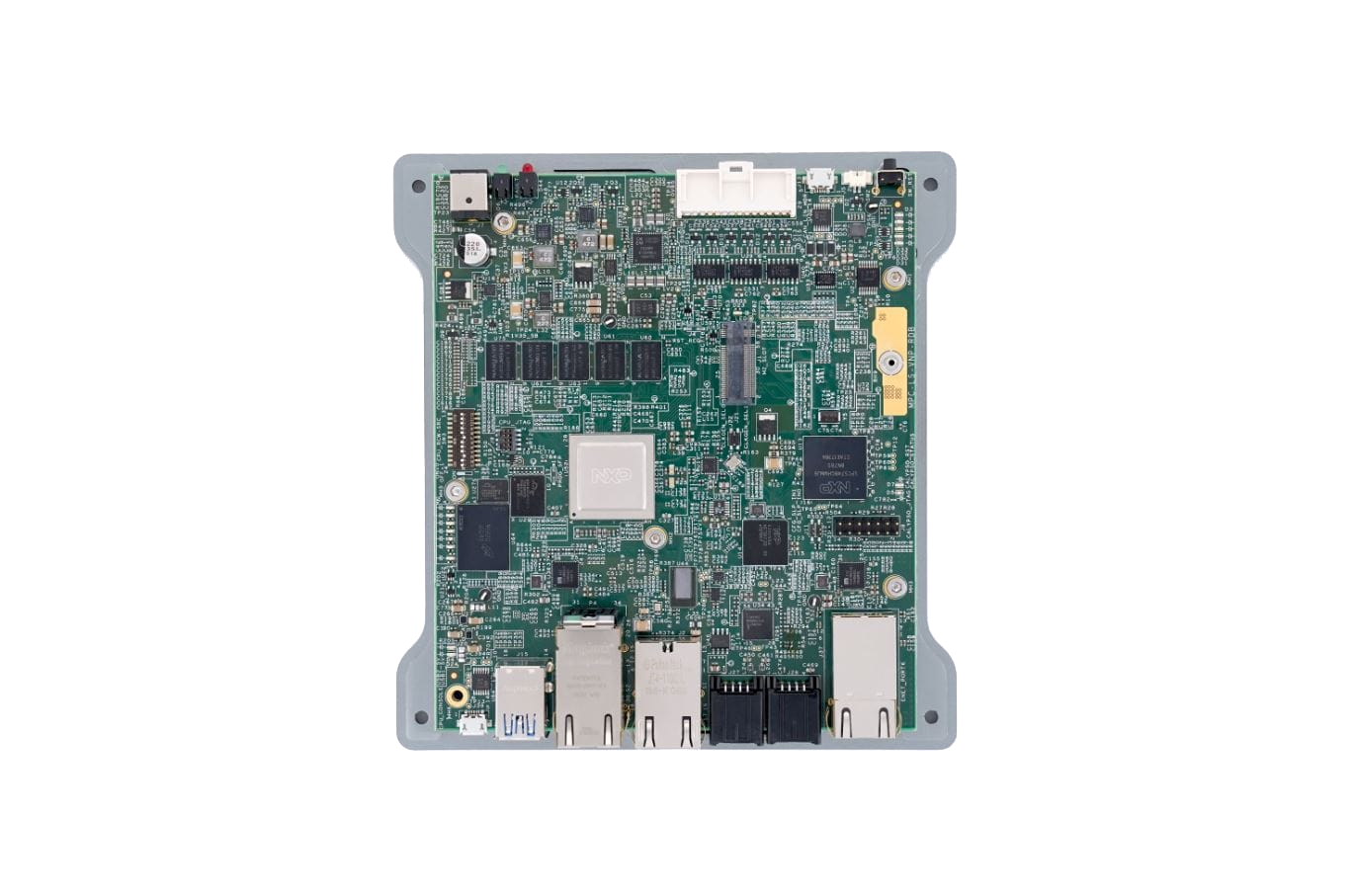

MPC-LS Vehicle Network Processing Reference Design

MPC-LS-VNP-RDB 製造開始前

画像にカーソルを合わせると拡大表示されます。

The MPC-LS-VNP-RDB is a reference design engineered for vehicle network processing (VNP) applications, used by carmakers, suppliers, and software ecosystem partners to accelerate the development of next-generation service-oriented gateways. Combining automotive and enterprise networking technology, the MPC-LS-VNP-RDB offers high levels of computing, real-time network performance, multi-gigabit packet acceleration, and security for new service-oriented gateways.

The MPC-LS-VNP-RDB integrates standards-based, open source software with feature-rich hardware for establishing a common and open framework for secure service delivery within a vehicle network.

MPC-LS Vehicle Network Processing Reference Design - Fact Sheet

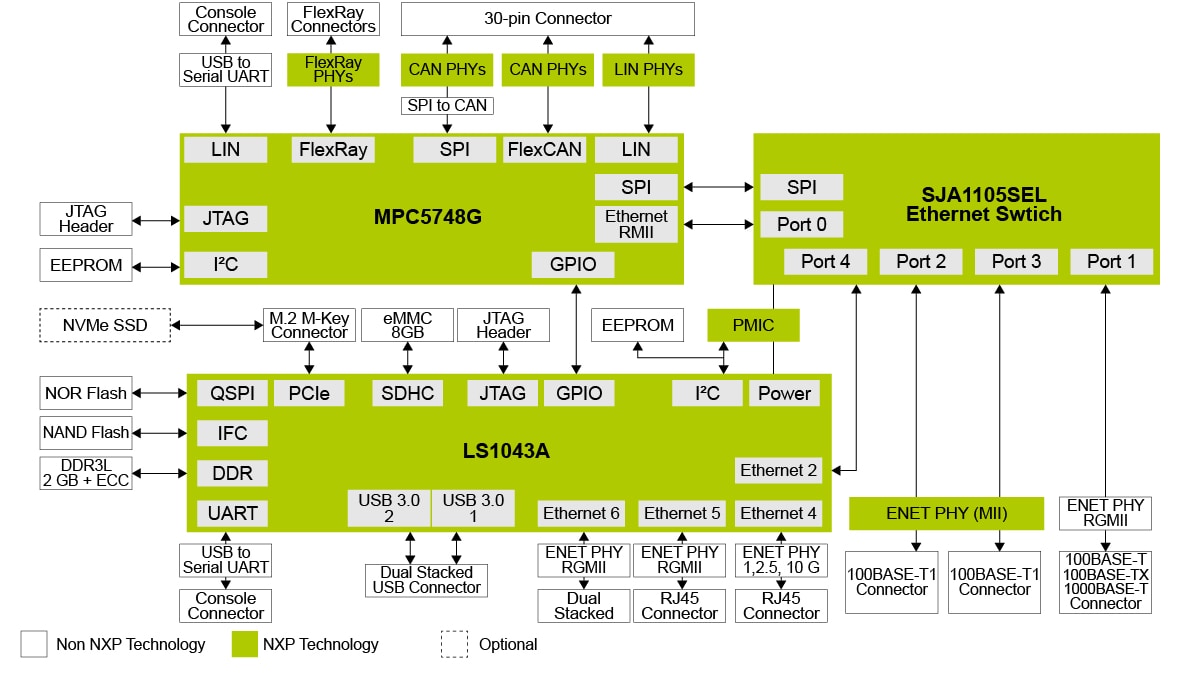

ブロック図

Vehicle Network Processing

MPC-LS-VNP-RDBD
図を取得する PDF

対応製品

プロセッサ＆マイクロコントローラ

超高信頼性MPC57xx MCU

  • MPC574xB-C-G: Ultra-Reliable MPC574xB/C/G MCUs for Automotive and Industrial Control and Gateway

Layerscapeプロセッサ

  • LS1043A: Layerscape® 1043A and 1023A Processors

パワーマネージメント

PMIC

  • PF81-PF82: 高性能プロセッシング・アプリケーション向け12チャネル・パワーマネジメント集積回路 (PMIC)

インターフェース

車載イーサネット・スイッチおよびネットワーク・コントローラ

  • SJA1105EL: SJA1105EL: Five- Ports AVB Automotive Ethernet Switch

車載用イーサネットPHY

  • TJA1102A: TJA1102A/TJA1102AS、デュアル/シングル・ポート車載用イーサネット100BASE-T1 PHYトランシーバ

オートモーティブLINソリューション

  • TJA1024HG: Quad LIN 2.2 A/SAE J2602 Transceiver

Features

  • Up to 10 gigabit Ethernet support with the packet forwarding engine
  • Modular approach for future processor upgrades
  • Software Enablement
    • Support and demos for bare metal, AUTOSAR® and Linux®
  • Interfaces
    • 1 x 10GBASE-T Ethernet
    • 3 x 1000BASE-TX Ethernet
    • 2 x Automotive 100BASE-T1
    • 2 x FlexRay™supported by TJA1081 node transceiver
    • 12 x CAN/CAN FD supported by TJA1048 dual CAN transceiver
    • 7 x LIN by TJA1024 quad LIN transceiver
    • 2 x USB 3.0
    • PCI Express® Gen2

購入オプション

MPC-LS-VNP-RDB-Image

クリックして展開

  • MPC-LS-VNP-RDB

  • MPC-LS Vehicle Network Processing Reference Design.

  • Kit contains:

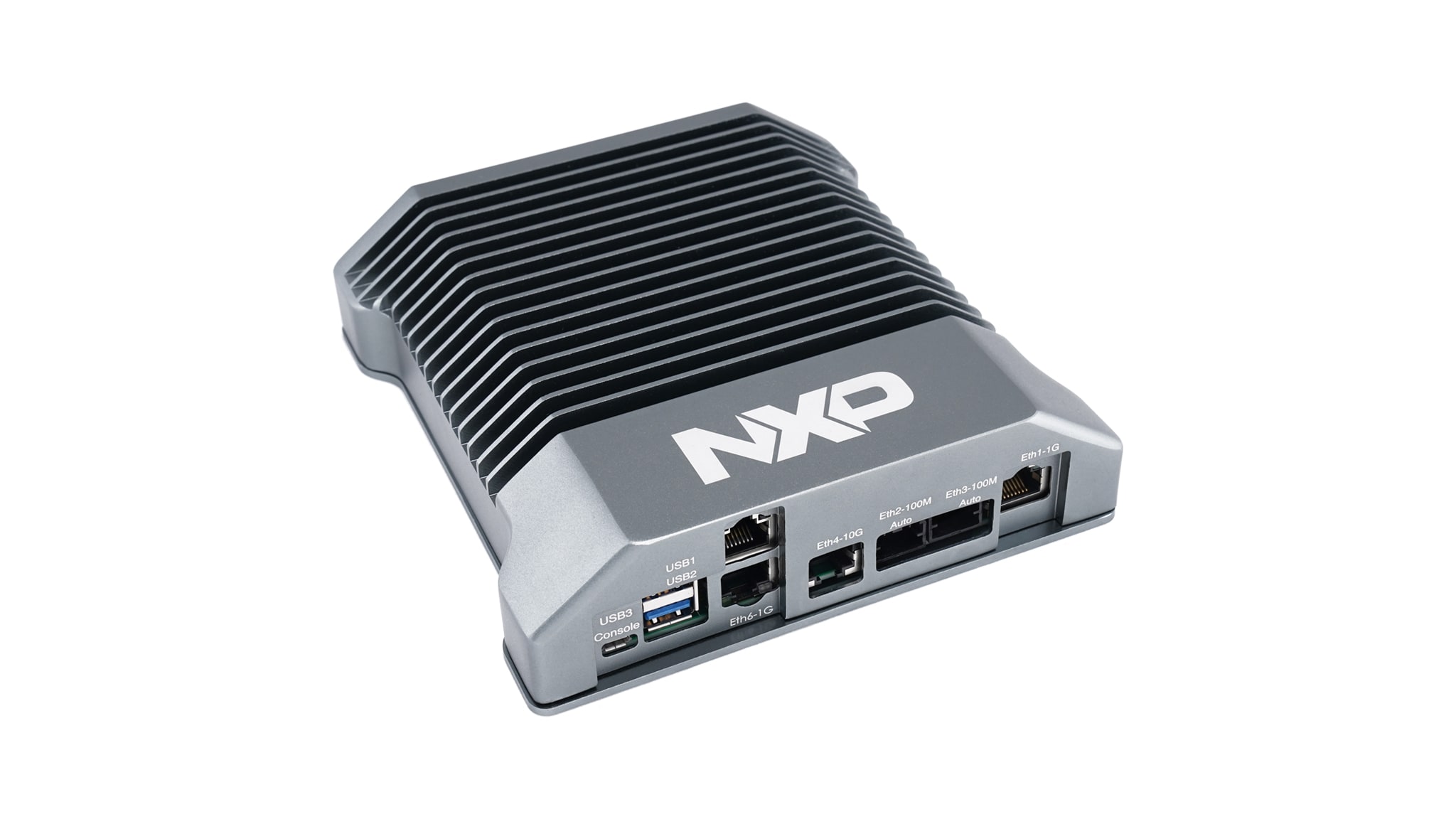

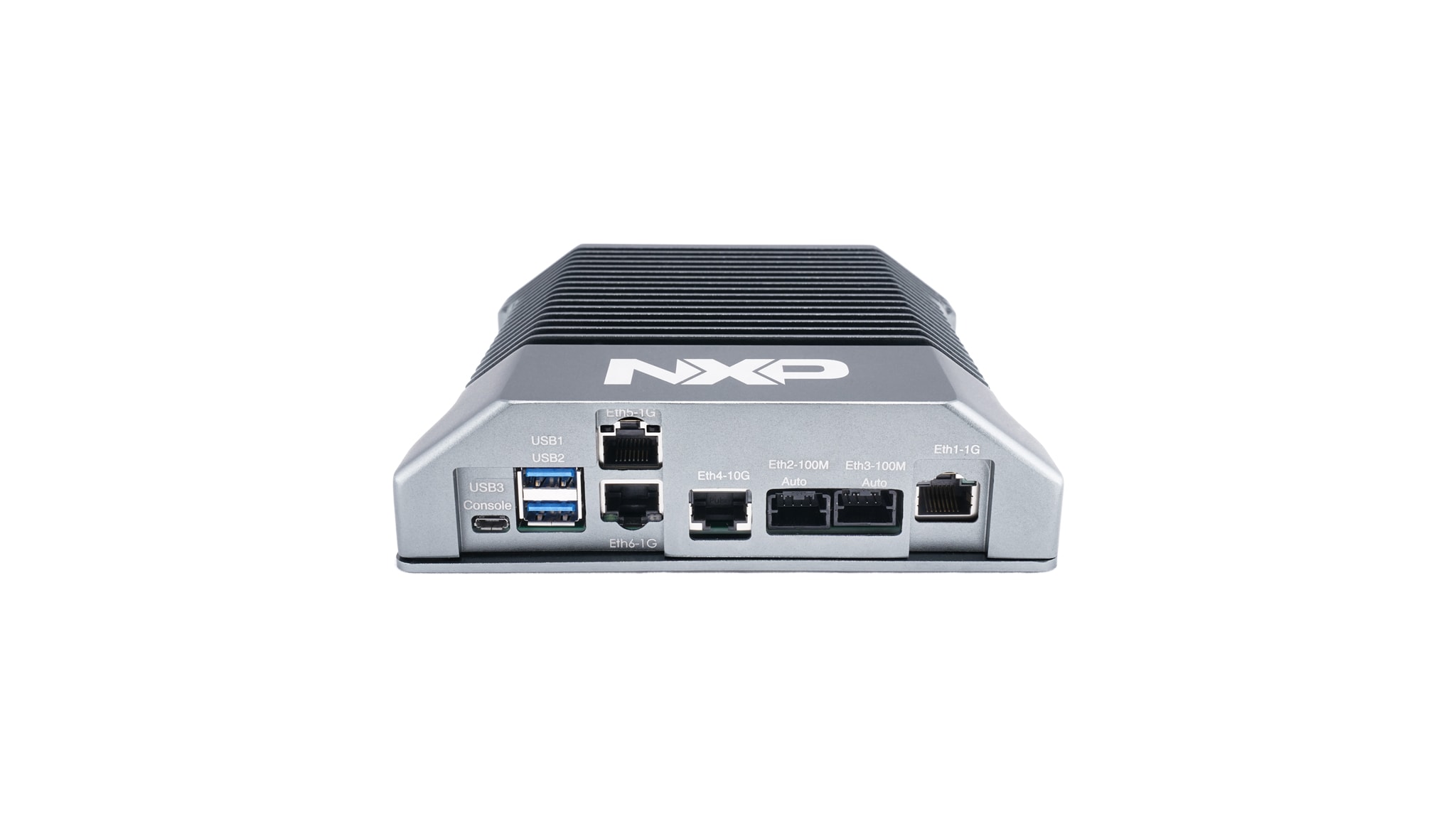

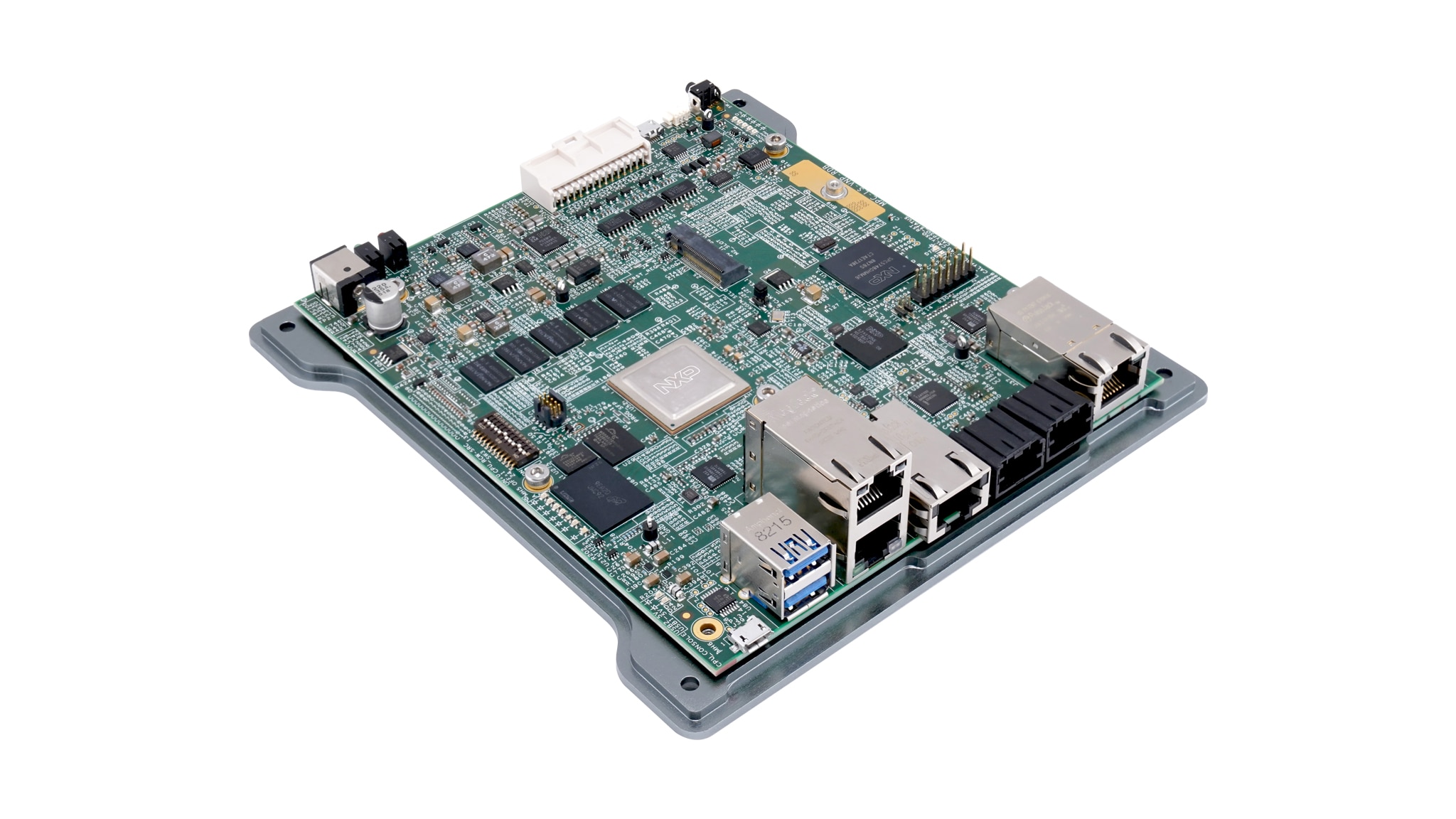

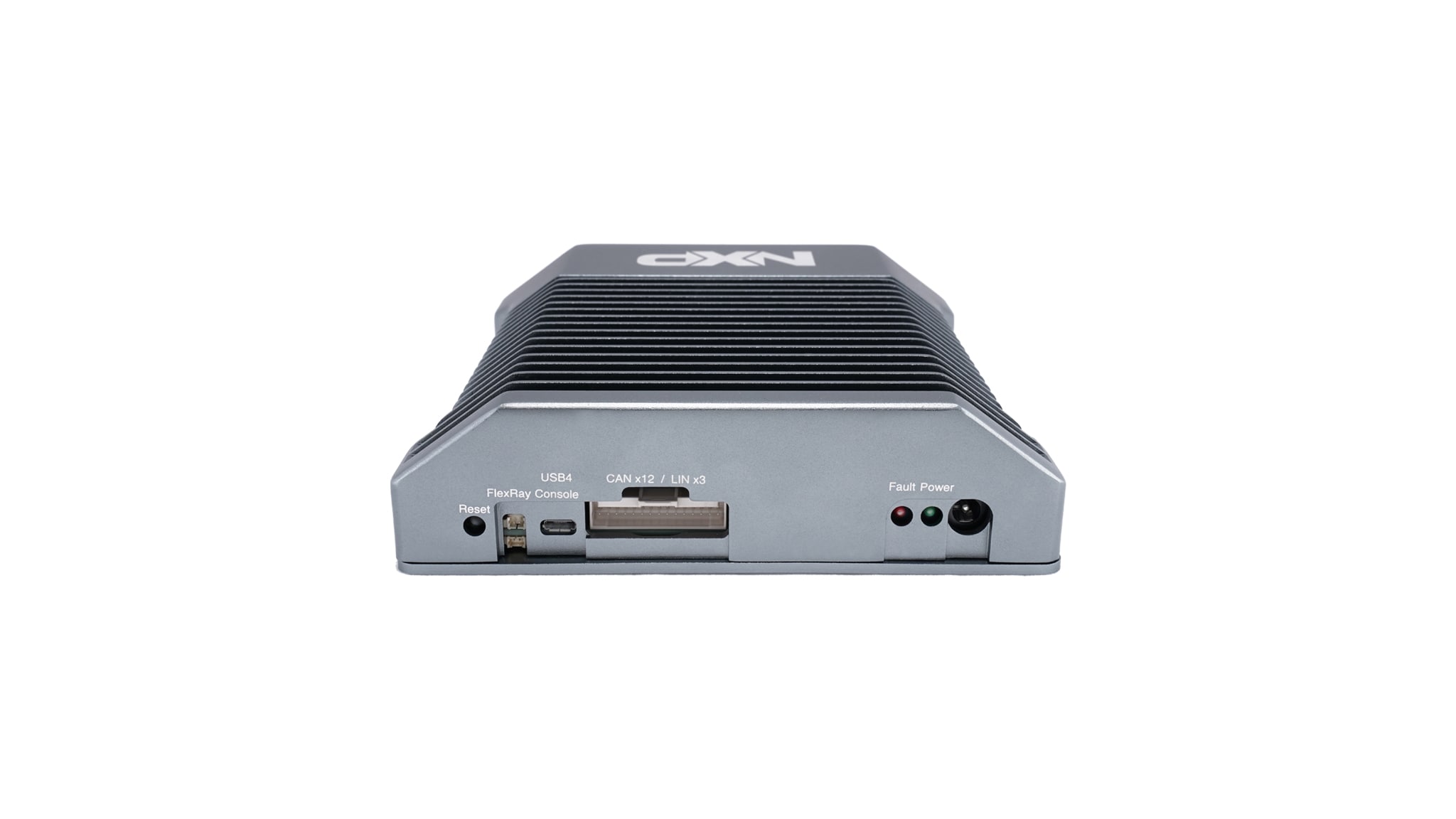

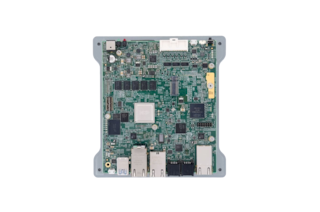

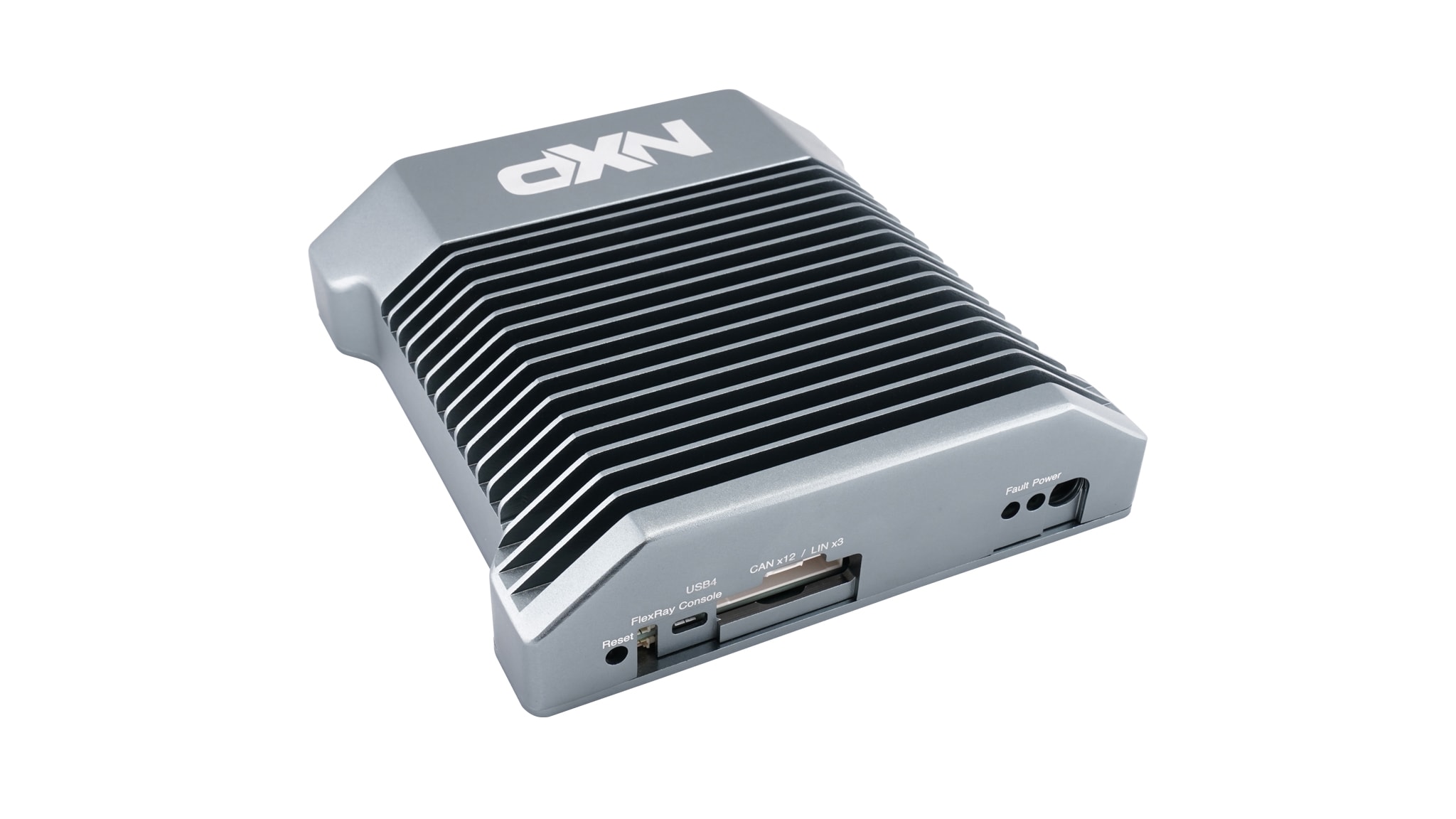

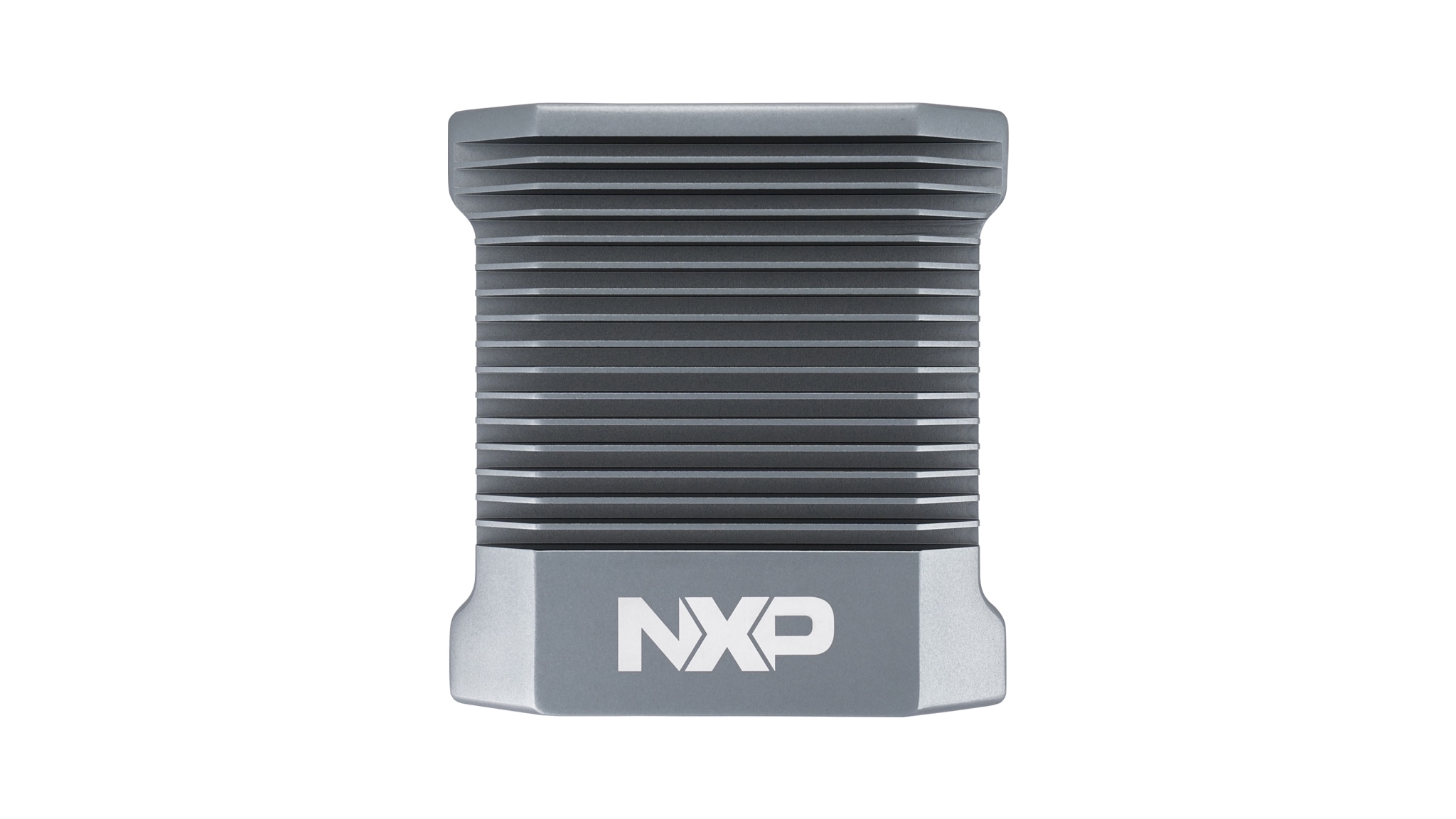

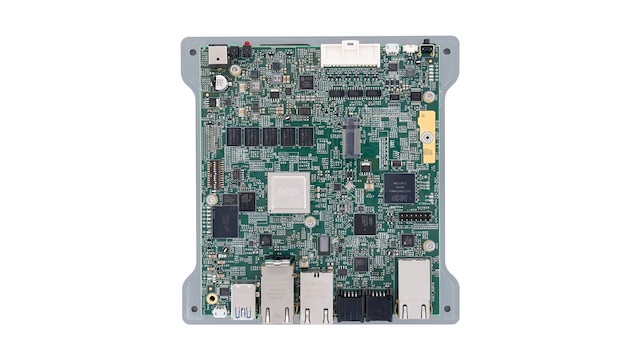

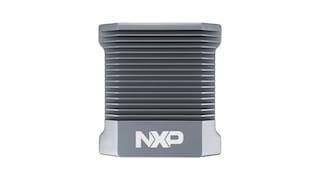

    • MPC-LS-VNP reference design board (with enclosure).
    • Power supply
    • Ethernet cable
    • USB cable
  • $995.00 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 5
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
N true 0 PSPMPC-LS-VNP-RDBja 6 アプリケーション・ノート Application Note t789 1 クイック・リファレンス・ガイド Quick Reference Guide t525 1 サポート情報 Supporting Information t531 1 ユーザ・ガイド User Guide t792 2 リファレンス・マニュアル Reference Manual t877 1 ja ja 2 1 English Let's take your MPC-LS-VNP-RDB for a test drive!
WARNING: The MPC-LS-VNP-RDB enclosure provides thermal management.
Do not run the RDB with the enclosure open without proper cooling. Refer to the MPC-LS-VNP-RDB User Manual for cooling recommendations. 1567002314766734827745 Y 1567002314766734827745 GS-MPC-LS GS-MPC-LS /document/guide/getting-started-with-the-mpc-ls-vnp-rdb:GS-MPC-LS HTML 0 2019-08-28 GS-MPC-LS PSP User Guide 132339537837198660 2025-01-06 en Dec 22, 2022 User Guide t792 ユーザ・ガイド User Guide Y Getting Started with the MPC-LS-VNP-RDB 2 kb 0 English 1567033334097700540381 PSP None None documents Y None 1567033334097700540381 /document/guide/Get%20Started%20with%20the%20MPC-LS:GS-MPC-LS /document/guide/Get%20Started%20with%20the%20MPC-LS:GS-MPC-LS GS-MPC-LS-LINK N N N 2019-08-28 Get started with the MPC-LS-VNP-RDB /document/guide/Get%20Started%20with%20the%20MPC-LS:GS-MPC-LS /document/guide/Get%20Started%20with%20the%20MPC-LS:GS-MPC-LS User Guide N 132339537837198660 Y 2022-12-07 LINK en Aug 28, 2019 User Guide t792 ユーザ・ガイド User Guide Y null kb N /document/guide/Get%20Started%20with%20the%20MPC-LS:GS-MPC-LS Get started with the MPC-LS-VNP-RDB link false ja リファレンス・マニュアル Reference Manual 1 3 0 English User Manual for the MPC-LS-VNP-RDB reference design 1563988546105721346432 PSP 8.6 MB Registration without Disclaimer None documents Extended 1563988546105721346432 /secured/assets/documents/en/reference-manual/MPC-LS-VNP-RD-UM.pdf 8554218 /secured/assets/documents/en/reference-manual/MPC-LS-VNP-RD-UM.pdf MPC-LS-VNP-RD-UM documents Y N 2019-07-24 MPC-LS Vehicle Network Processing reference design – User Manual /webapp/Download?colCode=MPC-LS-VNP-RD-UM&lang_cd=ja /secured/assets/documents/en/reference-manual/MPC-LS-VNP-RD-UM.pdf Reference Manual N 500633505221135046 2023-06-18 pdf Y en Sep 27, 2019 500633505221135046 Reference Manual Y N MPC-LS Vehicle Network Processing reference design – User Manual アプリケーション・ノート Application Note 1 4 0 English AN12548: This application note explains steps to run demo use cases on MPC-LS-VNPRDB. 1569588817425710654832 PSP 2.7 MB Registration without Disclaimer None documents Extended 1569588817425710654832 /secured/assets/documents/en/application-note/AN12548.pdf 2695617 /secured/assets/documents/en/application-note/AN12548.pdf AN12548 documents Y N 2019-09-27 AN12548: MPC-LS-VNP-RDB Auto Gateway Solution Demo Use Cases. /webapp/Download?colCode=AN12548&lang_cd=ja /secured/assets/documents/en/application-note/AN12548.pdf Application Note N 645036621402383989 2023-06-18 pdf Y en Sep 27, 2019 645036621402383989 Application Note Y N AN12548: MPC-LS-VNP-RDB Auto Gateway Solution Demo Use Cases. クイック・リファレンス・ガイド Quick Reference Guide 1 5 0 English Get started with the MPC-LS-VNP reference design board for accelerating the development of next-generation service-oriented gateways. 1567083480425717355970 PSP 399.6 KB None None documents None 1567083480425717355970 /docs/en/quick-reference-guide/MPC-LS-VNP-RDB_QSG.pdf 399648 /docs/en/quick-reference-guide/MPC-LS-VNP-RDB_QSG.pdf MPC-LS-VNP-RDB_QSG documents N N 2019-08-29 MPC-LS-VNP reference design – Quick Start Guide /docs/en/quick-reference-guide/MPC-LS-VNP-RDB_QSG.pdf /docs/en/quick-reference-guide/MPC-LS-VNP-RDB_QSG.pdf Quick Reference Guide N 803735842453594974 2022-12-07 pdf N en Aug 29, 2019 803735842453594974 Quick Reference Guide Y N MPC-LS-VNP reference design – Quick Start Guide サポート情報 Supporting Information 1 6 2 English NXP Enables Service-Oriented Gateways for Connected Vehicle Data 1551311552634701885293 PSP 3.4 MB None None documents None 1551311552634701885293 /docs/en/supporting-information/MPC-LS-VehicleNetworkProcessing.pdf 3377190 /docs/en/supporting-information/MPC-LS-VehicleNetworkProcessing.pdf MPC-LS-VehicleNetworkProcessing documents N N 2019-02-27 MPC-LS Vehicle Network Processing /docs/en/supporting-information/MPC-LS-VehicleNetworkProcessing.pdf /docs/en/supporting-information/MPC-LS-VehicleNetworkProcessing.pdf Supporting Information N 371282830530968666 2022-12-07 pdf N en Aug 7, 2019 371282830530968666 Supporting Information Y N MPC-LS Vehicle Network Processing false 0 MPC-LS-VNP-RDB downloads ja true 0 Y PSP アプリケーション・ノート 1 /secured/assets/documents/en/application-note/AN12548.pdf 2019-09-27 1569588817425710654832 PSP 4 Sep 27, 2019 Application Note AN12548: This application note explains steps to run demo use cases on MPC-LS-VNPRDB. Registration without Disclaimer /secured/assets/documents/en/application-note/AN12548.pdf English documents 2695617 None 645036621402383989 2023-06-18 Y /webapp/Download?colCode=AN12548&lang_cd=ja AN12548: MPC-LS-VNP-RDB Auto Gateway Solution Demo Use Cases. /secured/assets/documents/en/application-note/AN12548.pdf documents 645036621402383989 Application Note N en Extended Y pdf 0 Y N AN12548: MPC-LS-VNP-RDB Auto Gateway Solution Demo Use Cases. 2.7 MB AN12548 N 1569588817425710654832 クイック・リファレンス・ガイド 1 /docs/en/quick-reference-guide/MPC-LS-VNP-RDB_QSG.pdf 2019-08-29 1567083480425717355970 PSP 5 Aug 29, 2019 Quick Reference Guide Get started with the MPC-LS-VNP reference design board for accelerating the development of next-generation service-oriented gateways. None /docs/en/quick-reference-guide/MPC-LS-VNP-RDB_QSG.pdf English documents 399648 None 803735842453594974 2022-12-07 N /docs/en/quick-reference-guide/MPC-LS-VNP-RDB_QSG.pdf MPC-LS-VNP reference design – Quick Start Guide /docs/en/quick-reference-guide/MPC-LS-VNP-RDB_QSG.pdf documents 803735842453594974 Quick Reference Guide N en None Y pdf 0 N N MPC-LS-VNP reference design – Quick Start Guide 399.6 KB MPC-LS-VNP-RDB_QSG N 1567083480425717355970 サポート情報 1 /docs/en/supporting-information/MPC-LS-VehicleNetworkProcessing.pdf 2019-02-27 1551311552634701885293 PSP 6 Aug 7, 2019 Supporting Information NXP Enables Service-Oriented Gateways for Connected Vehicle Data None /docs/en/supporting-information/MPC-LS-VehicleNetworkProcessing.pdf English documents 3377190 None 371282830530968666 2022-12-07 N /docs/en/supporting-information/MPC-LS-VehicleNetworkProcessing.pdf MPC-LS Vehicle Network Processing /docs/en/supporting-information/MPC-LS-VehicleNetworkProcessing.pdf documents 371282830530968666 Supporting Information N en None Y pdf 2 N N MPC-LS Vehicle Network Processing 3.4 MB MPC-LS-VehicleNetworkProcessing N 1551311552634701885293 ユーザ・ガイド 2 2019-08-28 1567002314766734827745 1 Dec 22, 2022 User Guide ユーザ・ガイド Let's take your MPC-LS-VNP-RDB for a test drive!
WARNING: The MPC-LS-VNP-RDB enclosure provides thermal management.
Do not run the RDB with the enclosure open without proper cooling. Refer to the MPC-LS-VNP-RDB User Manual for cooling recommendations. Y GS-MPC-LS English 0 User Guide 2025-01-06 /document/guide/getting-started-with-the-mpc-ls-vnp-rdb:GS-MPC-LS Getting Started with the MPC-LS-VNP-RDB GS-MPC-LS PSP 132339537837198660 User Guide en Y t792 HTML GS-MPC-LS 1567002314766734827745 2019-08-28 /document/guide/Get%20Started%20with%20the%20MPC-LS:GS-MPC-LS 1567033334097700540381 PSP 2 Aug 28, 2019 User Guide ユーザ・ガイド Y link None /document/guide/Get%20Started%20with%20the%20MPC-LS:GS-MPC-LS English kb None User Guide 2022-12-07 /document/guide/Get%20Started%20with%20the%20MPC-LS:GS-MPC-LS Get started with the MPC-LS-VNP-RDB N /document/guide/Get%20Started%20with%20the%20MPC-LS:GS-MPC-LS documents 132339537837198660 User Guide N en None Y N t792 LINK 0 N Get started with the MPC-LS-VNP-RDB Y null kb GS-MPC-LS-LINK N /document/guide/Get%20Started%20with%20the%20MPC-LS:GS-MPC-LS 1567033334097700540381 リファレンス・マニュアル 1 /secured/assets/documents/en/reference-manual/MPC-LS-VNP-RD-UM.pdf 2019-07-24 1563988546105721346432 PSP 3 Sep 27, 2019 Reference Manual User Manual for the MPC-LS-VNP-RDB reference design Registration without Disclaimer /secured/assets/documents/en/reference-manual/MPC-LS-VNP-RD-UM.pdf English documents 8554218 None 500633505221135046 2023-06-18 Y /webapp/Download?colCode=MPC-LS-VNP-RD-UM&lang_cd=ja MPC-LS Vehicle Network Processing reference design – User Manual /secured/assets/documents/en/reference-manual/MPC-LS-VNP-RD-UM.pdf documents 500633505221135046 Reference Manual N en Extended Y pdf 0 Y N MPC-LS Vehicle Network Processing reference design – User Manual 8.6 MB MPC-LS-VNP-RD-UM N 1563988546105721346432 true Y Designs
