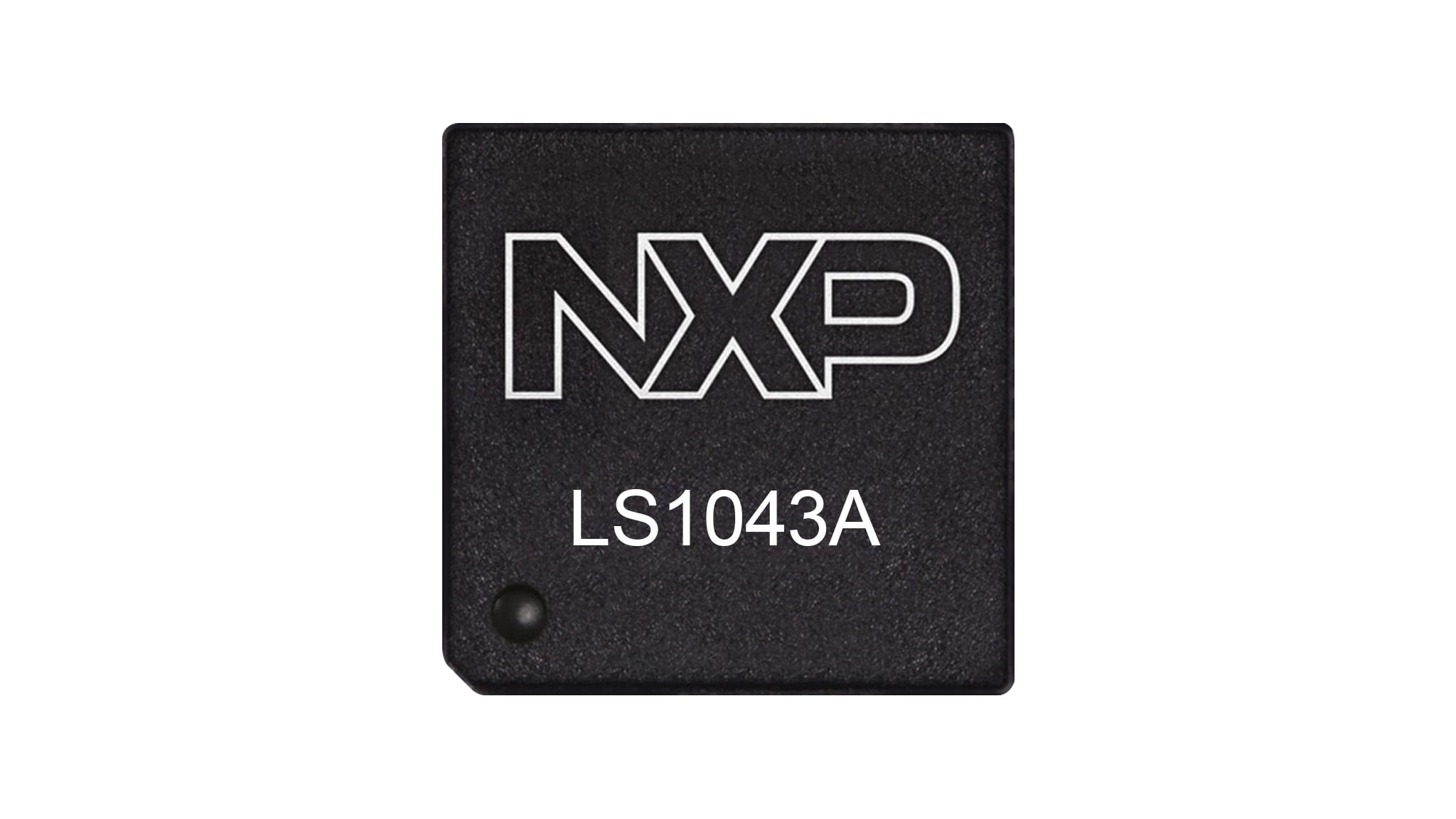

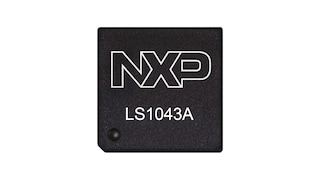

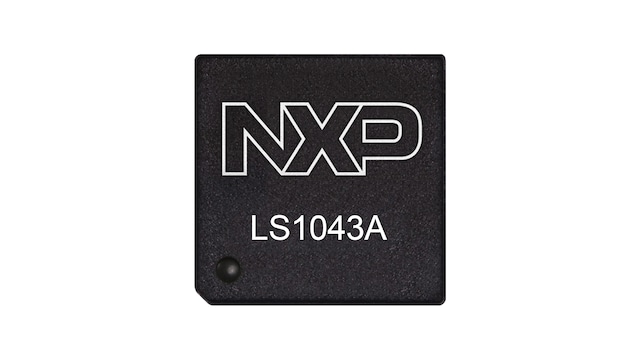

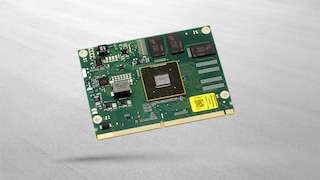

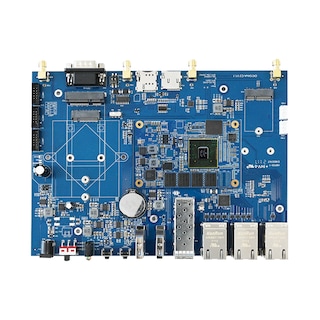

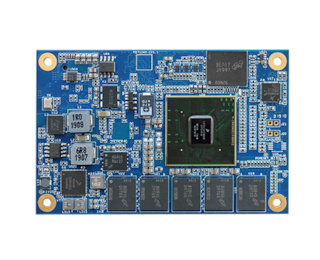

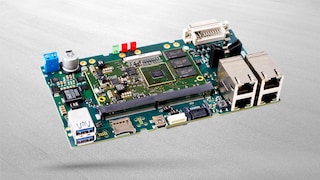

Layerscape® 1043A and 1023A Processors

LS1043A アクティブ
NXP Priority Support: Helping You to Get to Market Faster

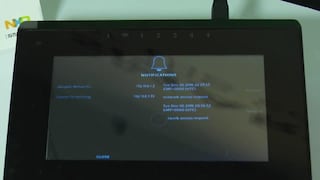

動画の上をクリックすると再生されます。

The LS1043A processor was NXP's first quad-core, 64-bit Arm®-based processor for embedded networking. LS1023A (two-core version) and LS1043A (four-core version) deliver greater than 10 Gbps of performance in a flexible I/O package supporting fanless designs. This SoC is a purpose-built solution for small-form-factor networking, industrial and automotive applications with BOM optimizations for economical low layer PCB, lower-cost power supply and single clock design.

The new 0.9V versions of the LS1043A and LS1023A deliver additional power savings for applications such as Wireless LAN and to Power over Ethernet systems. The 23x23 package options allow for pin-compatible design, enabling scaling to the LS1046A (quad A72 processor) or LS1088A (octal A53 core processor).

The LS1043A delivers a performance boost over dual-core Arm 32-bit products and continues the QorIQ legacy of I/O flexibility and integrated QUICC Engine® for legacy glue-less HDLC, TDM or Profibus support.

Layerscape processors are part of NXP's EdgeVerse™ edge computing platform.

ブロック図

LS1043A BD

LS1043A Processors Block Diagram
図を取得する PDF

Features

Core Complex

  • Quad (LS1043A) or Dual (LS1023A) Arm® Cortex®-A53 64-bit cores
  • 1 GHz to 1.6 GHz
  • 32/32 I/D Cache KB L1 and 1 MB L2 cache

Networking Elements

  • Up to seven 1x GbE or 1x 10GbE and five x GbE
  • Four-lane SerDes up to 10 GHz multiplexed across controllers supporting:
    • Three PCI Express® Gen 2 interfaces
    • SATA 3.0 Interface
    • uQUICC Engine

Accelerators and Memory Control

  • DPAA Parse, Classify and Distribution Engines
  • Integrated security engine
  • DDR 3L/4

Basic Peripherals and Interconnect

  • Three USB 3.0 interfaces with PHY
  • QuadSPI
  • IFC Flash
  • Quad I²C
  • Trust Zone

Additional Features

  • QorIQ Platform's Trust Architecture
  • Arm SMMU for hardware-enhanced virtualization
  • 0.9V options for lowest power designs
  • 23x23 package options for pin compatible performance scaling
