OM13029
アクティブ -

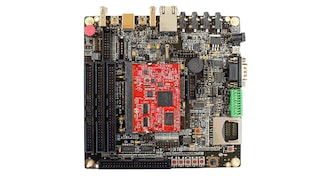

EA LPC4088 Eval Board.
- 1 x LPC4088 OEM board
- 1 x OEM Base board
- 1 x USB cable, type A to mini-B
- 1 x Headset with microphone
Development Kit for LPC4088

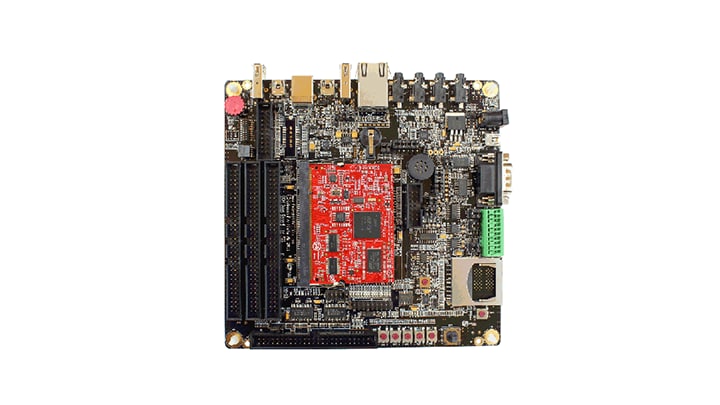

The LPC4088 OEM Board from Embedded Artists is equipped with NXP®'s Cortex-M4 based LPC4088 microcontroller suitable for a wide range of applications that requires advanced communication and high-quality graphics displays. The kit comprises a plug-in module (the “OEM board”) with the LPC4088 microcontroller and memory, and a baseboard which provides access to the microcontroller’s rich set of peripherals. This kit is ideal for engineers who want to fully explore and prototype with the LPC4088.
製品詳細
対応製品
プロセッサ＆マイクロコントローラ
LPC4000 Cortex-M4
- LPC4088FBD144: Mid-range 32-bit Microcontroller (MCU) based on Arm® Cortex®-M4 Core
- LPC4088FBD208: Mid-range 32-bit Microcontroller (MCU) based on Arm® Cortex®-M4 Core
- LPC4088FET180: Mid-range 32-bit Microcontroller (MCU) based on Arm® Cortex®-M4 Core
- LPC4088FET208: Mid-range 32-bit Microcontroller (MCU) based on Arm® Cortex®-M4 Core
- LPC4072FET80: Mid-range 32-bit Microcontroller (MCU) based on Arm® Cortex®-M4 Core
- LPC4074FBD144: LPC4074FBD144
- LPC4074FBD80: LPC4074FBD80
- LPC4076FBD144: Mid-range 32-bit Microcontroller (MCU) based on Arm® Cortex®-M4 Core
- LPC4076FET180: Mid-range 32-bit Microcontroller (MCU) based on Arm® Cortex®-M4 Core
- LPC4078FBD100: 32-Bit Arm® Cortex®-M4 MCU; Up to 512 KB Flash, 96 KB SRAM; USB Device/Host/OTG; Ethernet; EMC; SPIFI
- LPC4078FBD144: 32-Bit Arm® Cortex®-M4 MCU; Up to 512 KB Flash, 96 KB SRAM; USB Device/Host/OTG; Ethernet; EMC; SPIFI
- LPC4078FBD208: 32-Bit Arm® Cortex®-M4 MCU; Up to 512 KB Flash, 96 KB SRAM; USB Device/Host/OTG; Ethernet; EMC; SPIFI
- LPC4078FBD80: 32-Bit Arm® Cortex®-M4 MCU; Up to 512 KB Flash, 96 KB SRAM; USB Device/Host/OTG; Ethernet; EMC; SPIFI
- LPC4078FET180: 32-Bit Arm® Cortex®-M4 MCU; Up to 512 KB Flash, 96 KB SRAM; USB Device/Host/OTG; Ethernet; EMC; SPIFI
- LPC4078FET208: 32-Bit Arm® Cortex®-M4 MCU; Up to 512 KB Flash, 96 KB SRAM; USB Device/Host/OTG; Ethernet; EMC; SPIFI
Features
Microcontroller
- Program Flash 128 MB NAND FLASH + 512 kB internal
- Data Memory 32 MB SDRAM + 96 KB internal SRAM + 4 KB internal EPROM
- 32-bit data bus to SDRAM (16-bit on special order)
- SPIFI Memory 32 Mbit QSPI flash
- Ethernet 100/10 M Ethernet interface based on SMSC LAN8720 Ethernet PHY
- 12 MHz crystal for CPU and 32.768 kHz crystal for RTC
- 200 position expansion connector (as defined in SODIMM standard), 0.6 mm pitch
- Buffered 32-bit databus
Cortex-M4 LPC4088
Memory
- Parallel NOR flash on external memory bus
- 16-bit register and LEDs on external memory bus
Connectivity
- USB1: OTG or Host interface and connector
- USB2: Device or Host interface and connector
Sensors
- 3-axis accelerometer (I²C connected)
- LM75 temperature sensor (I²C connected)
Audio
- I²S audio codec (mic in, line in, line out, headphone out)
- Speaker output on analog output from OEM Board, or from I²S audio codec
Support
- LCD expansion connector with control signals for touchscreen interface
- Provision for NXP JN5148 RF module (former Jennic) interface (RF module not included)
Size
- 200 position, 0.6 mm pitch SODIMM connector for OEM Board
- Expansion connector with all OEM Board signals
- Ethernet connector (RJ45)
- CAN interface and connector (provision for second CAN interface)
- MMC/SD interface and connector
- RS422/485 interface and connector
- SWD/JTAG connector, trace connector and pads for ETM connector
- Serial Expansion Connector, 14-pos connector with UART/I²C/SPI/GPIO pins
- Optional coin cell battery for RTC and LED on ALARM output (coin cell not included)
- 5-key joystick, 5 push-buttons
- 9 LEDs (8 via I²C and one on ISP-ENABLE)
- Trimming potentiometer to analog input
- USB-to-serial bridge on UART #0 (FT232R) and ISP functionality
- Reset push button and LED
