NXP S32R372 RADAR Processing MCU 141BGA Evaluation Board

S32R372EVB アクティブ

画像にカーソルを合わせると拡大表示されます。

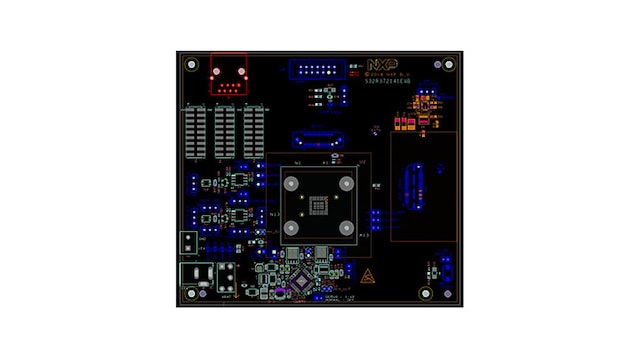

The S32R372 141BGA Evaluation board provides a basis for application development using the S32R372 RADAR processing microcontroller in the 141BGA package. The standalone, socketed design allows rapid prototyping of the application in a small and easy to use package. High speed debug and MIPI-CSI2 connections allow for interoperability with NXP's range of RADAR RF parts for RADAR application development.

製品詳細

Features

Connectivity

  • Standard 14-pin JTAG debug connector and 34-pin Nexus Aurora connector

Power Management

  • Single 12 V external power supply input with two onboard regulators providing all of the necessary EVB and MCU voltages
  • Power supplied to the EVB via a 2.1mm barrel style power jack or a 2-way level connector

User components

  • 3x user LEDs, freely connectable
  • 2x CAN FD dedicated interfaces
  • Main power switch and regulator status LEDs
  • User reset switch with reset status LED

Support

  • Support for the 141MAPBA package via a socket for simple device interchange during development
  • Test points (surface mount loops) placed throughout the EVB
  • MIPI-CSI2 high-speed connector intended for use with Eagle MR3003 RADAR front-end EVK (Evaluation Kit) or the Dolphin TEF810X front-end EVK (via separate adapter)
  • Flexible MCU clocking options allow provision of an external clock from the RF front end via the MIPI-CSI2 connector or 40 MHz EVB clock oscillator circuit (default)
  • GPIO breakout 2.54 mm headers for access to all configurable device GPIO pins

購入オプション

S32R372141EVB-Image

クリックして展開

  • S32R372141EVB
    アクティブ

  • NXP S32R372 RADAR Processing MCU 141BGA Evaluation Board.

    • 12V DC power supply
    • S32R372EVB
    • S32R372 141BGA Microcontroller
  • $375.00 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 3
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
