高性能レーダーに対応するS32R26およびS32R27マイクロコントローラ

S32R2X
アクティブ

  • 代わりに、S32R294 MCU製品を使用してください。これは既存のS32R製品ファミリを拡張するもので、MPC5775K、S32R274、S32R372などのデバイスが既に含まれています。まだS32R37 MCU製品を必要とされるお客様は、NXPサポートまでお問い合わせください。

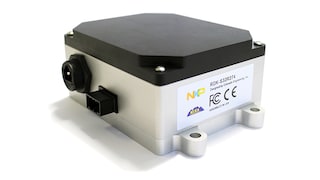

S32R274 Design Kit Introduction

動画の上をクリックすると再生されます。

S32R264とS32R274は、自動車およびインダストリアル用の高性能レーダー用途に対応する、AEC-Q100グレード1認定を取得した32ビットPower Architecture®ベースのマイクロコントローラです。

S32R264とS32R274のどちらのMCUも、高度なレーダー信号処理機能を備えながら、一般的なソフトウェア・タスクや車載バス・インターフェースを処理するマイクロコントローラ機能が統合されています。信号処理アクセラレーションを強力なマルチコア・アーキテクチャと組み合わせることで、最新のビームフォーミング高速チャープ変調レーダー・システムに要求される高度な演算要件を達成しています。​

S32R264 MCUとS32R274 MCUは、従来のMPC577X製品と比較して同じ消費電力あたりの性能が4倍以上に高まっており、次世代の車載レーダー・モジュールの集積度を大幅に高めることができます。

ブロック図

S32R2xブロック図

S32R2x Block Diagram
図を取得する PDF

特長

主な特長

  • デュアルPower Architecture® e200z7 32ビットCPU
  • デュアルPower Architecture e200z4 32ビットCPU、チェッカー・コア搭載（ロックステップ動作時に使用可能）
  • 2 MBフラッシュ、ECC付き
  • 1.5 MB SRAM、ECC付き
  • レーダー信号処理ツール・ボックス (SPT 2.0)
  • レーダー・インターフェース：MIPI-CSI2 (4データ・レーン)
  • セーフティ：ISO 26262 SEooC、ASIL Dまで
  • セキュリティ：CSE2 (Cryptographic Services Engine)
  • -40～150 °C（接合部）温度
  • インターフェース：Zipwire、SAR-ADC x 2、SPI x 2、I2C x 2、FlexCAN x 3（CAN FD x 2を含む）、Flexray™、LINFlexD、イーサネット
  • AFEPLL
  • GLONASS帯域でのEMCパフォーマンスの向上（S32R264使用時）
  • SDPLL
  • レーダー・インターフェース： ΣΔ-ADC（12ビット、10 MSps x 4）およびDAC (10 MSps)

購入/パラメータ

4 結果

マッチしていない 4 NRND

パーツ

説明を表示

注文

コンピュータ支援設計 モデル

状況

標準価格

コア・タイプ

動作周波数[最大](MHz)

Flash (kB)

SRAM (kB)

Serial Communication

I2S

CAN

イーサネット

Timers [Number, bits]

PWM [Number, bits]

ADC [Number, bits]

DAC [Number, bits]

電源電圧 [最小 - 最大] (V)

Ambient Operating Temperature (Min to Max) (℃)

Junction Temperature (Min to Max) (℃)

パッケージタイプ

Package Pitch (mm)

パッケージ端子数

安全保障機能安全

ASIL Certification

FS32R274KCK2MMM
データ・シート

アクティブ

10K @ US$16.08

2 x e200z4, 2 x e200z7

240

2000

1500

1 x FlexRay, 1 x LINFlexD, 1 x Zipwire, 2 x I²C, 2 x SPI

2

3

1 x 10/100 BaseT

16 x 16, 5 x 32

12 x 16

2 x 12

1 x 12

0.95 to 1.5

-40 to 125

-40 to 150

LFBGA257

0.8

257

ISO 26262

up to ASIL D

FS32R274KCK2VMM
データ・シート

アクティブ

10K @ US$15.38

2 x e200z4, 2 x e200z7

240

2000

1500

1 x FlexRay, 1 x LINFlexD, 1 x Zipwire, 2 x I²C, 2 x SPI

2

3

1 x 10/100 BaseT

16 x 16, 5 x 32

12 x 16

2 x 12

1 x 12

0.95 to 1.5

-40 to 105

-40 to 130

LFBGA257

0.8

257

ISO 26262

up to ASIL D

FS32R274KSK2MMM
データ・シート

アクティブ

10K @ US$19.37 - 10K @ US$31.56

2 x e200z4, 2 x e200z7

240

2000

1500

1 x FlexRay, 1 x LINFlexD, 1 x Zipwire, 2 x I²C, 2 x SPI

2

3

1 x 10/100 BaseT

16 x 16, 5 x 32

12 x 16

2 x 12

1 x 12

0.95 to 1.5

-40 to 125

-40 to 150

LFBGA257

0.8

257

ISO 26262

up to ASIL D

FS32R274VCK2VMM
データ・シート

アクティブ

10K @ US$13.98

2 x e200z4, 2 x e200z7

200

2000

1500

1 x FlexRay, 1 x LINFlexD, 1 x Zipwire, 2 x I²C, 2 x SPI

2

3

1 x 10/100 BaseT

16 x 16, 5 x 32

12 x 16

2 x 12

1 x 12

0.95 to 1.5

-40 to 105

-40 to 130

LFBGA257

0.8

257

ISO 26262

up to ASIL D
