S08RN Tower Module Development Board

TWR-S08RN60 アクティブ

画像にカーソルを合わせると拡大表示されます。

The TWR-S08RN60 module is a development board for the S9S08RN60, which are ideal for Automotive Body Applications. It is designed to enable rapid prototyping and development for applications requiring a low cost 8bit MCU, Connectivity through LIN, Basic Motor control and Basic Touch sensing requirements.

The TWR-S08RN60 operates as a standalone debug tool and can also be combined and used as part of the modular Tower® System development platform.

製品詳細

対応製品

プロセッサ＆マイクロコントローラ

8ビットS08 MCU

  • S08RN: 8-bit EEPROM with TSI for Body Electronics MCUs

Features

Microcontroller

  • S9S08RN60 MCU

Connectivity

  • LIN Connector
  • Sockets for touch sensing and motor control daughter card expansion

Support

  • On-board OSBDM debug support with Mini-B USB connector

User Components

  • Potentiometer for ADC input
  • 4 touch pads each with LED indicator
  • Reset button and 3 functional switches
  • 8 MHz Crystal for system clock

購入オプション

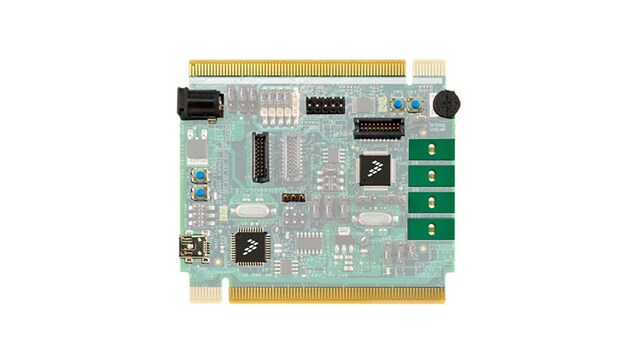

TWR-S08RN60-Image

クリックして展開

  • TWR-S08RN60
    アクティブ

  • Tower Bd for S08RN60.

    • Part Number TWR-S08RN60 contains:
      • TWR-S08RN60 board with a S9S08RN60 8-bit MCU
      • DVD with IDE software, training materials and collateral
      • USB cable
      • NXP Warranty Card
    • Part Number TWR-S08RN60-KIT also contains:
      • TWR-ELEV: Tower System Elevator Module
      • TWR-PROTO: Prototyping Module with perfboard area
  • の数量に対して 1
代理店からの注文

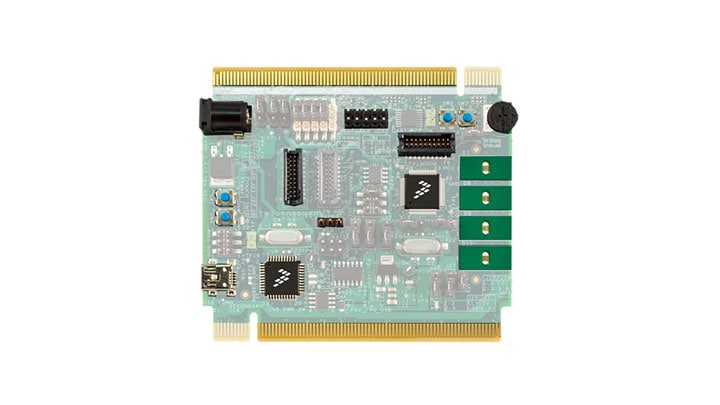

TWR-S08RN60-KIT-Image

クリックして展開

  • の数量に対して 1
N true 0 TSPTWR-S08RN60ja 4 アプリケーション・ノート Application Note t789 1 エラッタ Errata t522 1 ファクト・シート Fact Sheet t523 1 ユーザ・ガイド User Guide t792 1 ja 2 1 0 English TWRS08RN60QSG: The TWR-S08RN60 Tower<sup>&#174;</sup> System module demonstrates the capability of the MC9S08RN60 8-bit MCU targeted for automotive body electronics applications. It can function as a stand-alone, low-cost platform for the evaluation of MC9S08RN60 devices. The S08RN family is pin compatible and integrates a touch-sensing interface (TSI), EEPROM and a motor control flex timer to simplify designs and help reduce system costs. 1348870798982706333626 TSP 556.3 KB None None documents Y None 1348870798982706333626 /docs/en/user-guide/TWRS08RN60QSG.pdf 556294 /docs/en/user-guide/TWRS08RN60QSG.pdf TWRS08RN60QSG N N 2013-01-10 TWR-S08RN60 - Quick Start Guide /docs/en/user-guide/TWRS08RN60QSG.pdf /docs/en/user-guide/TWRS08RN60QSG.pdf User Guide N Y 132339537837198660 2023-06-18 pdf N en Dec 5, 2012 User Guide t792 ユーザ・ガイド User Guide Y N TWR-S08RN60 - Quick Start Guide 2 1 English 1314234617250734366912 TSP 214.6 KB None None documents None 1314234617250734366912 /docs/en/fact-sheet/S08RNFS.pdf 214552 /docs/en/fact-sheet/S08RNFS.pdf S08RNFS N N 2011-08-29 S08RN Fact Sheet /docs/en/fact-sheet/S08RNFS.pdf /docs/en/fact-sheet/S08RNFS.pdf Fact Sheet N Y 736675474163315314 2022-12-07 pdf N en Sep 25, 2012 Fact Sheet t523 ファクト・シート Fact Sheet Y N S08RN Fact Sheet false ja 0 false ja アプリケーション・ノート Application Note 1 3 0 English AN4875SW.zip /docs/en/application-note-software/AN4875SW.zip /docs/en/application-note-software/AN4875SW.zip AN4875: This application note is an introduction to the S08RN MCU family for automotive solutions. This document gives an explanation of the main modules of the S08RN family so that a project can be started. 1392886246749716628325 TSP 293.6 KB None None documents None 1392886246749716628325 /docs/en/application-note/AN4875.pdf 293629 /docs/en/application-note/AN4875.pdf AN4875 documents N N 2014-02-20 AN4875, Getting Started with S08RN60 - Application Notes /docs/en/application-note/AN4875.pdf /docs/en/application-note/AN4875.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Feb 19, 2014 645036621402383989 Application Note N N AN4875, Getting Started with S08RN60 - Application Notes エラッタ Errata 1 4 Rev 03 JAN 2014 English This document lists the silicon errata on mask 1N53H 1389345716830735390994 TSP 93.4 KB None None documents None 1389345716830735390994 /docs/en/errata/S08RN60_1N53H.pdf 93380 /docs/en/errata/S08RN60_1N53H.pdf S08RN60_1N53H documents N N 2014-01-10 Mask Set Errata for Mask 1N53H /docs/en/errata/S08RN60_1N53H.pdf /docs/en/errata/S08RN60_1N53H.pdf Errata N 155452329886410597 2022-12-07 pdf N en Jan 10, 2014 155452329886410597 Errata N N Mask Set Errata for Mask 1N53H false 0 TWR-S08RN60 downloads ja true 0 Y TSP アプリケーション・ノート 1 /docs/en/application-note/AN4875.pdf 2014-02-20 1392886246749716628325 TSP 3 Feb 19, 2014 Application Note AN4875: This application note is an introduction to the S08RN MCU family for automotive solutions. This document gives an explanation of the main modules of the S08RN family so that a project can be started. None /docs/en/application-note/AN4875.pdf English documents 293629 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4875.pdf AN4875, Getting Started with S08RN60 - Application Notes /docs/en/application-note/AN4875.pdf documents 645036621402383989 Application Note N en None N pdf 0 N N AN4875, Getting Started with S08RN60 - Application Notes 293.6 KB AN4875 N 1392886246749716628325 エラッタ 1 /docs/en/errata/S08RN60_1N53H.pdf 2014-01-10 1389345716830735390994 TSP 4 Jan 10, 2014 Errata This document lists the silicon errata on mask 1N53H None /docs/en/errata/S08RN60_1N53H.pdf English documents 93380 None 155452329886410597 2022-12-07 N /docs/en/errata/S08RN60_1N53H.pdf Mask Set Errata for Mask 1N53H /docs/en/errata/S08RN60_1N53H.pdf documents 155452329886410597 Errata N en None N pdf Rev 03 JAN 2014 N N Mask Set Errata for Mask 1N53H 93.4 KB S08RN60_1N53H N 1389345716830735390994 ファクト・シート 1 /docs/en/fact-sheet/S08RNFS.pdf 2011-08-29 1314234617250734366912 TSP 2 Sep 25, 2012 Fact Sheet ファクト・シート None /docs/en/fact-sheet/S08RNFS.pdf English 214552 None Fact Sheet 2022-12-07 N /docs/en/fact-sheet/S08RNFS.pdf S08RN Fact Sheet /docs/en/fact-sheet/S08RNFS.pdf documents 736675474163315314 Fact Sheet N Y en None Y t523 pdf 1 N N S08RN Fact Sheet 214.6 KB S08RNFS N 1314234617250734366912 ユーザ・ガイド 1 /docs/en/user-guide/TWRS08RN60QSG.pdf 2013-01-10 1348870798982706333626 TSP 1 Dec 5, 2012 User Guide ユーザ・ガイド TWRS08RN60QSG: The TWR-S08RN60 Tower<sup>&#174;</sup> System module demonstrates the capability of the MC9S08RN60 8-bit MCU targeted for automotive body electronics applications. It can function as a stand-alone, low-cost platform for the evaluation of MC9S08RN60 devices. The S08RN family is pin compatible and integrates a touch-sensing interface (TSI), EEPROM and a motor control flex timer to simplify designs and help reduce system costs. Y None /docs/en/user-guide/TWRS08RN60QSG.pdf English 556294 None User Guide 2023-06-18 N /docs/en/user-guide/TWRS08RN60QSG.pdf TWR-S08RN60 - Quick Start Guide /docs/en/user-guide/TWRS08RN60QSG.pdf documents 132339537837198660 User Guide N Y en None Y t792 pdf 0 N N TWR-S08RN60 - Quick Start Guide 556.3 KB TWRS08RN60QSG N 1348870798982706333626 true Y Tools
