Evaluation Kit - 33879,Configurable Octal Serial Switch

FRDM-33879A-EVB アクティブ

画像にカーソルを合わせると拡大表示されます。

This EVALUATION KIT supports the MC33879 device, which is an 8-output hardware-configurable, high side/low side switch with 16-bit serial peripheral interface (SPI) control. Two of the outputs may be controlled directly via microprocessor for PWM applications. The 33879 incorporates SMARTMOS® technology, with CMOS logic, bipolar/MOS analog circuitry, and DMOS power MOSFETs. The 33879 controls various inductive, incandescent, or LED loads by directly interfacing with a microcontroller.

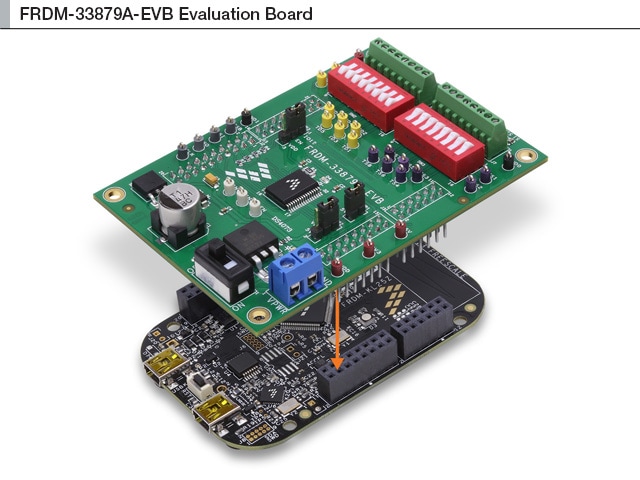

This Evaluation kit may be used with the FRDM-KL25Z. The FRDM-KL25Z can be used as a Freedom SPI Dongle. All other FRDM boards currently online are also compatible with this board.

製品詳細

対応製品

パワーマネージメント

コンフィギュラブル・スイッチ

  • MC33879: Configurable Octal Serial Switch

バッテリー・セルコントローラ

  • MC33774: 18チャネルのリチウムイオン・バッテリー・セル・コントローラIC、ASIL D対応

Features

Key Features

  • RDS(ON) of 0.75 Ohms at 25 °C typical
  • Short-circuit detect and current limit with automatic retry
  • Independent over-temperature protection

Power Management

  • Designed to operate 5.5 V ≤ VPWR ≤ 27.5 V
  • 16-bit SPI for control and fault reporting, 3.3 V / 5.0 V compatible
  • Outputs are current limited (0.6 A to 1.2 A) to drive incandescent lamps
  • Output voltage clamp, + 45 V (low side) and - 20 V (high side) during inductive switching
  • Internal reverse battery protection on VPWR
  • Loss of ground or supply will not energize loads or damage IC
  • Maximum 5.0 µA IPWR standby current at 13 V VPWR

Components

  • On/Off control of open load detect current (LED application)

購入オプション

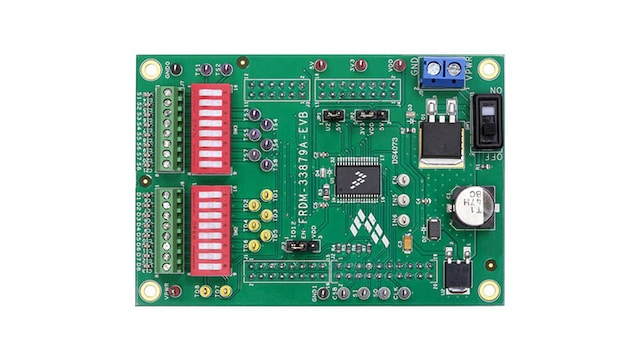

FRDM-33879A-EVB-Image

クリックして展開

  • FRDM-33879A-EVB
    アクティブ

  • Freedom Expansion Kit - MC33879, Configurable Octal Serial Switch W/ Open Load Detect.

    • Assembled and tested evaluation board/module in anti-static bag.
    • Four Arduino® R3 female/male connectors (2 each 2X8, 1 each 2X6, 1 each 2X10)
    • Quick Start Guide, Analog Tools
    • Warranty card
  • $136.62 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
