PT2000 Evaluation Kit with KL25Z for 3 Cylinder with Freewheeling

KITPT2000FRDM3C アクティブ

画像にカーソルを合わせると拡大表示されます。

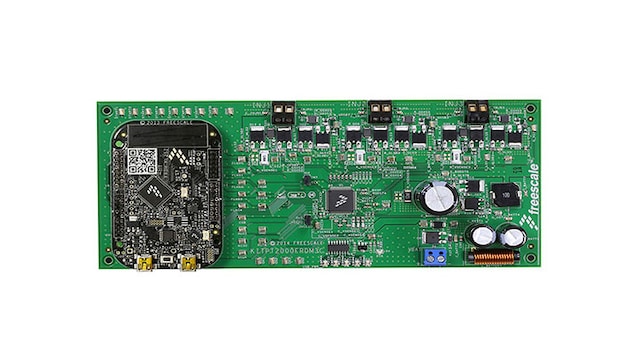

The KITPT2000FRDM3C evaluation board (EVB) allows you to exercise all the functions of the PT2000 direct injection pre-driver circuit. A PC communicates through USB to the EVB through a FRDM-KL25Z freedom board used as a SPIdongle. The NXP® SPIGen (version 7.0 and above) program provides the user interface to the PT2000 SPI port and allows the user to program the Code RAM and Data Registers, send commands to the IC and receive status from the IC.

製品詳細

対応製品

パワーマネージメント

パワートレイン＆エンジン制御

  • PT2000: Programmable Solenoid Controller Gate Driver

Features

KITPT2000FRDM3C

  • PT2000 Programmable Solenoid Pre-Driver Circuit
  • FRDM-KL25Z for SPI communication and IO control
  • Power-conditioning circuitry
  • External MOSFETs used to control 3 injectors with freewheeling
  • +12 V VBAT supply provides the power to the two internal voltage regulators, VCCP and VCCP2.5
  • DC-to-DC control

PT2000

  • Battery voltage range, 5.5 < VBATT < 72 V
  • Predrive operating voltage up to 72 V
  • High side/low side predrive PWM capability up to 100 kHz
    • All predrivers have four selectable slew rates
  • Twelve selectable, predefined VDS/VSRC monitoring thresholds
  • Encryption for microcode protection
  • Integrated 1.0 MHz back-up clock
  • End of injection detection

購入オプション

KITPT2000FRDM3C-Image

クリックして展開

  • KITPT2000FRDM3C
    アクティブ

  • Freedom Platform - PT2000, Programmable Gate Driver.

    • KITPT2000FRDM3C Hardware
    • FRDM-KL25Z Hardware (Pre-Programmed)
    • Cable, USB A-M to B-M mini (2)
    • Quick Reference Guide
  • の数量に対して 1
代理店からの注文
