Programmable Solenoid Controller Gate Driver

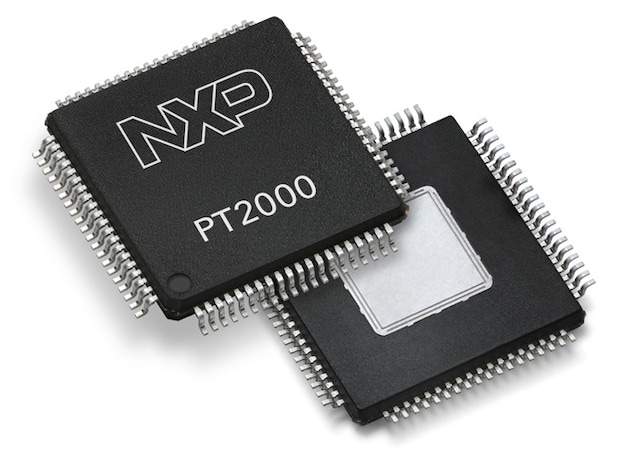

PT2000 アクティブ

画像にカーソルを合わせると拡大表示されます。

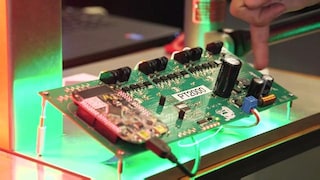

The PT2000 programmable gate driver for solenoid control integrates six microcores, seven external MOSFET high-side pre-drivers, and eight external MOSFET low-side pre-drivers. Two low-side drivers can be used as DC/DC converters. Microcores allows six parallel tasks to run independently from the main system microcontroller (MCU). The PT2000 also included diagnostics, automatic DC/DC control, current measurement and end of injection detection.

ブロック図

PT2000: 8-Channel Programmable Solenoid Controller Gate Driver

PT2000 Simplified Block Diagram
図を取得する PDF

Features

Key Features

  • Battery voltage range, 5.0 V < VBATT < 72 V
  • Pre-driver operating voltage up to 72 V and selectable slew rates
  • 7 high-side pre-drive PWM capability up to 100 kHz (30 nC)
  • 6 low-side pre-drive PWM capability up to 100 kHz (30 nC)
  • 2 low-side pre-drive PWM capability up to 400 kHz (30 nC) can be used for DC/DC
  • 12 selectable, pre-defined VDS monitoring thresholds
  • Encryption for microcode protection
  • Integrated End of Injection detection

購入/パラメータ

1 結果

マッチしていない 0 NRND

パーツ

説明を表示

注文

コンピュータ支援設計 モデル

状況

製品機能

End of Injection Detection

パッケージタイプ

パッケージ端子数

標準価格

Frequency (Max) (kHz)

チャネル数

保護

電源電圧 [最小] (V)

電源電圧 [最大] (V)

SPI [bits]

Number of High Side Pre Driver

Number Low Side Pre Driver

Ambient Operating Temperature (Min to Max) (℃)

MC33PT2000AF
データ・シート

アクティブ

powertrain control, pre-driver

Y

HLQFP80

80

1K @ US$5.15

200

6

drain to source voltage/voltage source, open load, overcurrent, overtemperature, overvoltage protect, short-circuit, undervoltage, undervoltage lockout

5

72

16

7

8

-40 to 125
