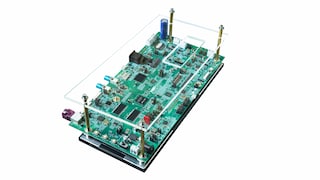

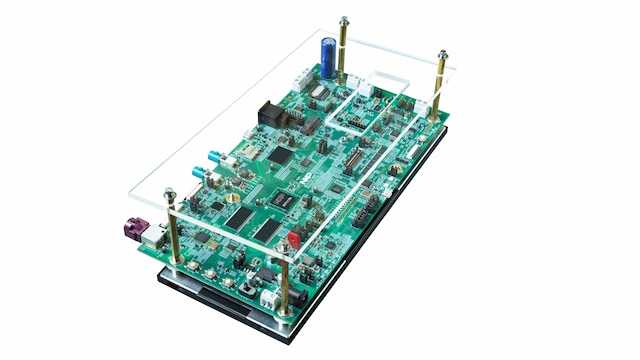

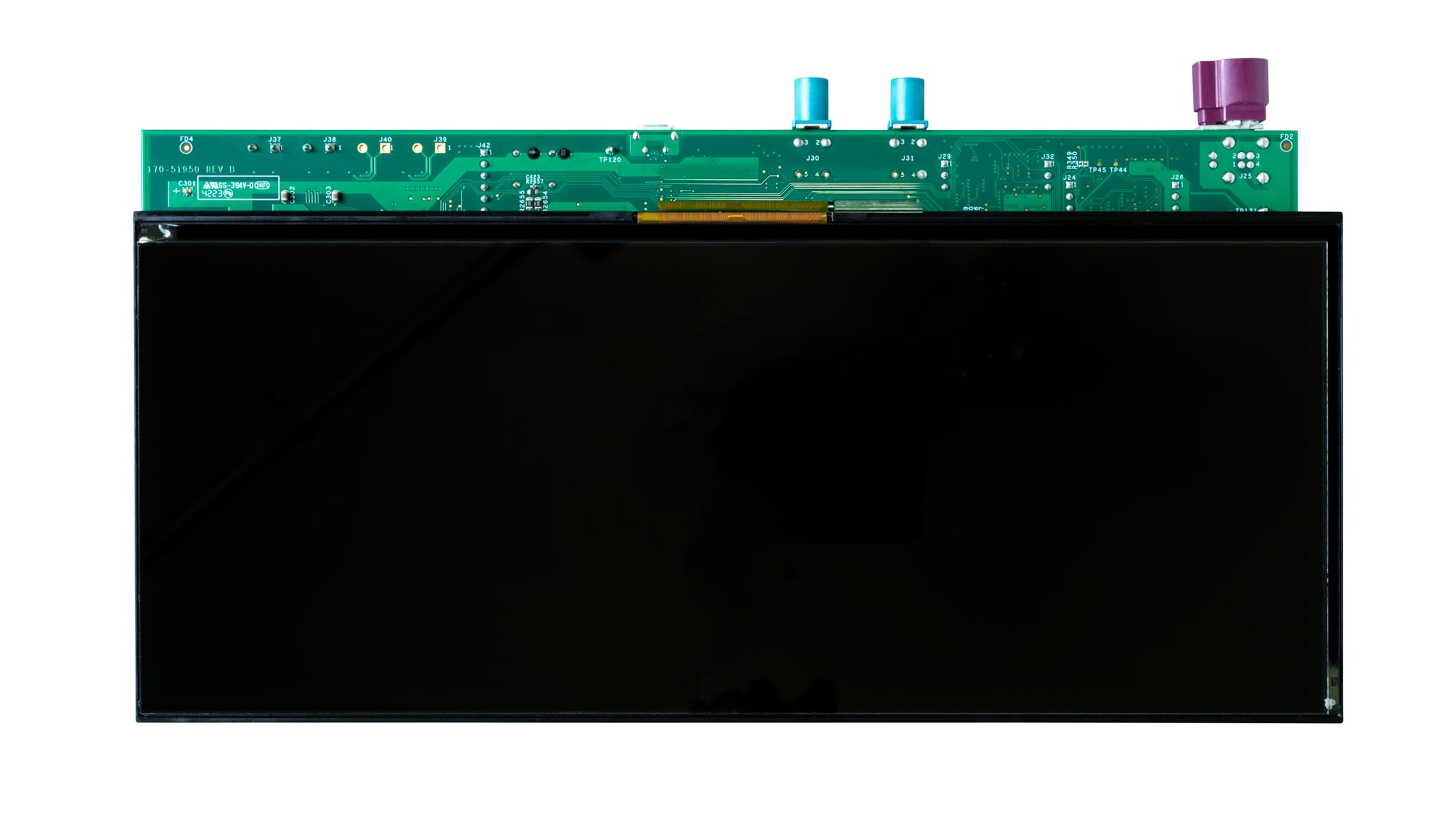

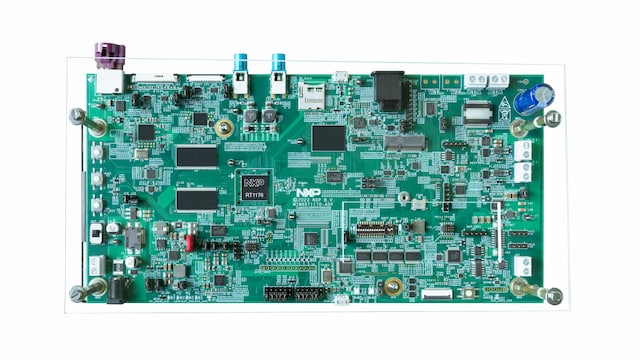

Automotive Development Platform Based on i.MX RT1170

i.MXRT1170-ADP

画像にカーソルを合わせると拡大表示されます。

i.MX RT1176 Automotive Development Platform (ADP) targets to offer a solid foundation to quickly enable designs in the automotive market, including Infotainment, In-vehicle experience, Two wheeler Digital Connected Cluster, HUD, Standalone small Cluster, HMI, entry-level DMS, voice command, etc.

ブロック図

MIMXRT1176-ADP

i.MX RT1170
図を取得する PDF

対応製品

ワイヤレス・コネクティビティ

Bluetooth Low Energy

  • KW45: KW45：32ビットBluetooth® 5.3長距離MCU、CAN FDおよびLINバス・オプションあり、Arm® Cortex®-M33コア

Wi-Fi®＋Bluetooth®＋802.15.4

  • AW611: 2.4/5 GHzデュアルバンド1x1 Wi-Fi® 6 (802.11ax) + Bluetooth® 5.4車載ソリューション

インターフェース

CANシグナル改善

  • TJA1463: スリープ・モード対応のCANシグナル改善機能トランシーバ

車載用イーサネットPHY

  • TJA1103: TJA1103、ASIL B準拠車載イーサネット100BASE-T1 PHYトランシーバ

プロセッサ＆マイクロコントローラ

i.MX RTクロスオーバーMCU

  • i.MX-RT1170: i.MX RT1170：Arm® Cortex®コア搭載1 GHzクロスオーバーMCU

S32K 車載汎用MCU

  • S32K1: S32K1 車載向け汎用マイクロコントローラ

パワーマネージメント

PMIC

  • PF5020: 車載アプリケーション向けマルチチャネル (5) PMIC：高電力 x 4および低消費電力 x 1、ASIL Bセーフティ・レベルに適合

Features

Hardware

  • i.MX RT1170 Auto part number (MIMXRT1176AVM8A)
  • Cortex-M7 up to 600 MHz under 125C; 800 MHz under 105C
  • PMIC PF5020 compliant with ASIL B and Dual Buck FS5600
  • S32K MCU compliant with ASIL-B
  • Automotive displays via LCDIF, MIPI DSI interfaces. RGB-to-LVDS interface, MIPI-DSI Serializer
  • Automotive camera via MIPI CSI interface, MIPI-CSI Deserializer
  • Audio (Microphone/Speaker)
  • Connectivity (M.2 connector WiFi/BT, Ethernet with safety PHY, CAN, USB)
  • Various memory interfaces (QSPI Flash, Octal SPI flash, HyperRAM, SDRAM, eMMC/SDCard)
  • 64 MB octal SPI flash and 64 MB 32 bit SDRAM for high performance application

Software

  • BSP based on SDK 2.15.1
  • Examples for drivers of peripherals
  • AW61x WiFi/BT stack library on ADP
  • LVGL based GUI example
  • 2-Wheeler example with Bluetooth bridge enabled (A2DP, HFP, H2H)
  • DMS example on ADP
  • NXP SBL OTA solution on ADP
  • QtMCU adaptation layer on ADP

購入オプション

MIMXRT1176-ADP-Image

クリックして展開

  • MIMXRT1176-ADP
    アクティブ

  • Automotive Development Platform Based on i.MX RT1170.

  • $1000.00 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 3
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
代理店からの注文
