S12VR Window Lift StarterTRAK Reference Design

TRK-S12VR-WLFT-1

画像にカーソルを合わせると拡大表示されます。

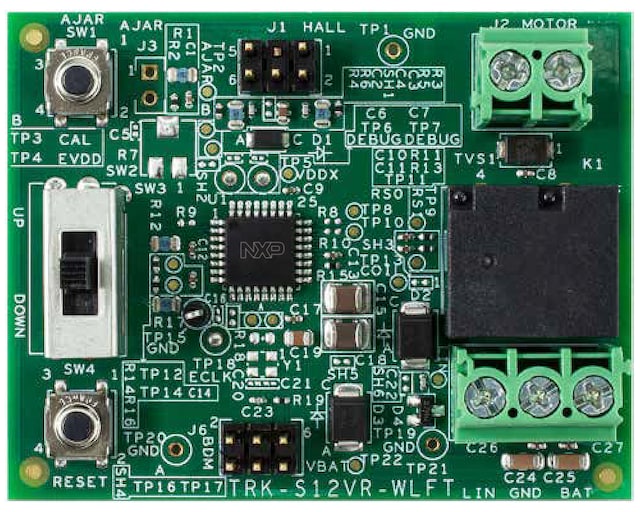

The TRK-S12VR-WLFT is a reference design board engineered for window lift and relay-based DC motor control.

Based on the 16-bit S12 MagniV® S12VR mixed-signal microcontrollers, the TRK-S12VR-WLFT drives a DC relay-based motor and features anti-pinch and window stall detection, via Hall effect encoder.

StarterTRAK TRK-S12VR-WLFT Development Platform - Fact Sheet

製品詳細

ブロック図

S12VR Window Lift StarterTRAK

S12VR Window Lift StarterTRAK Reference Design
図を取得する PDF

Features

Key Features

  • StarterTRAK is designed with a low amount of external components, high voltage capabilities with small space requirement
  • Relay diagnostic through HVI wake up pins (state can be sent through LIN)
  • Anti-pinch, motor stall detection, via Hall effect encoder
  • Operating voltage range from 8V to 18V
  • Window command switch, features express up/down
  • Ajar switch driven through the HS0 (switch status can be sent through LIN and the switch can be disabled by time or a LIN command)

Interfaces

  • LIN connector

Debug

  • Anti-pinch SW can be debugged through the SWD connector interface provided

購入オプション

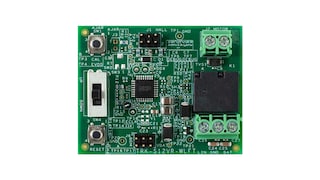

TRK-S12VR-WLFT-Image

クリックして展開

  • TRK-S12VR-WLFT
    アクティブ

  • Reference design featuring the S12VR as a window lifter.

  • Kit contains

    • TRK-S12VR-WLFT reference design board
    • TRK-S12VR-WLFT reference design - Quick Start Guide
    • DVD with software, training materials, and collateral
  • $149.00 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
