Smart Access Platform Solution

SMART-ACCESS-PLATFORM アーカイブス
  • このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。

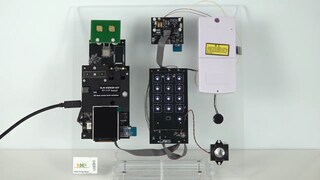

動画の上をクリックすると再生されます。

The Smart Access Platform showcases NXP’s smart access control technologies in a modular fashion to demonstrate multiple use cases. This solution is based on Matter, UWB, face recognition, NFC, fingerprint and password that can all be used either as a standalone or in combination for enabling multi-factor security. The modularity and flexibility of this platform empowers you to select the technologies needed for your product’s security, connectivity and cost requirements

The Smart Access Platform integrates multiple smart lock solutions which include pin pad and fingerprint matching algorithm running on high-efficiency LPC55S69 MCU, NXP’s Edge Ready turnkey face recognition solution based on iMXRT106F/iMXRT117F crossover MCUs and a variety of connectivity options, which include K32W041 Matter over Thread, QN9090 Bluetooth Low Energy solution, SR150 secure UWB solution for IoT devices and CLRC663 low-power NFC solution.

製品詳細

ブロック図

図を選択する。:

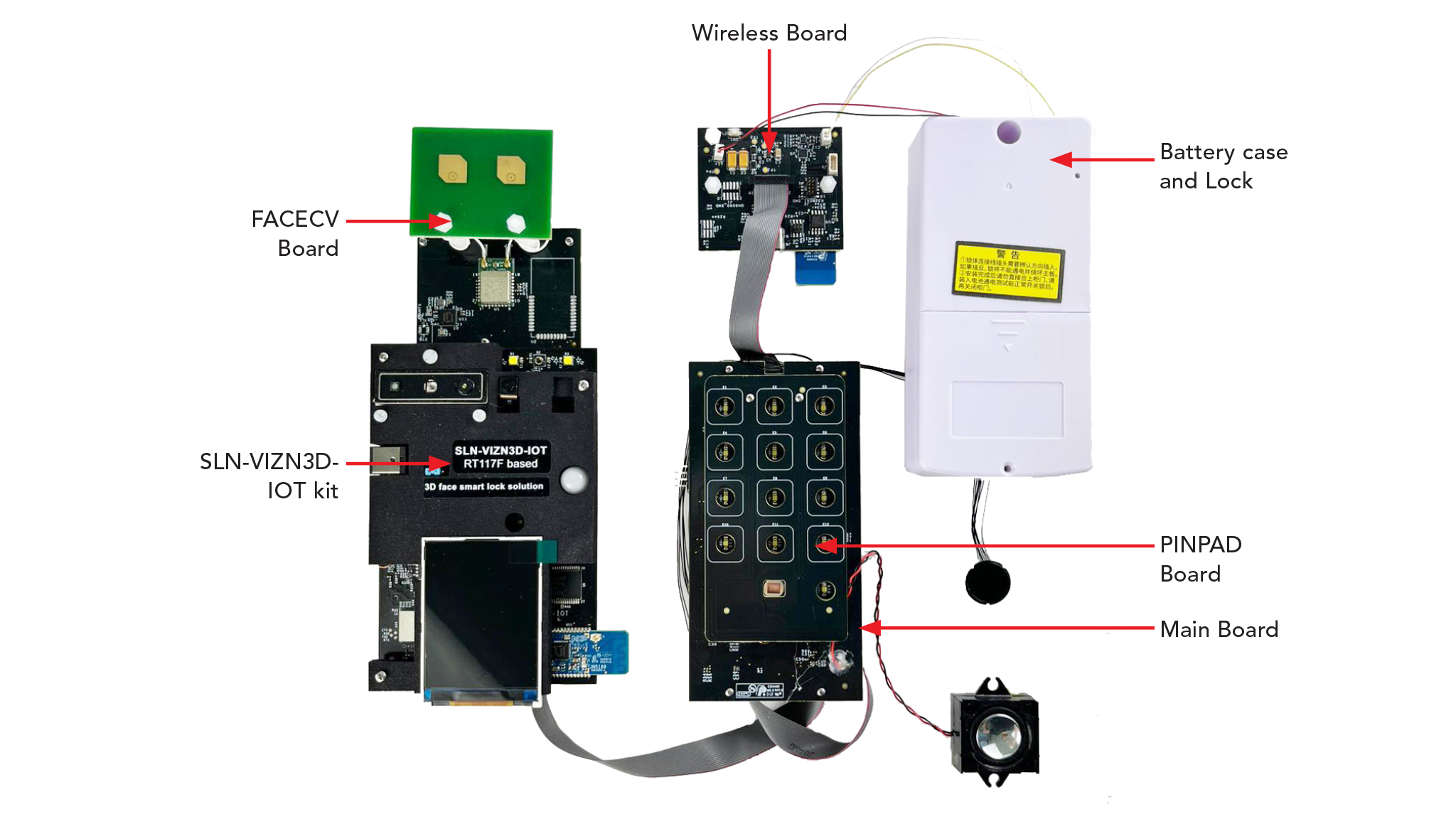

ハードウェア

Smart Access Block Diagram

Smart Access Platform Solution Block Diagram

NXP EdgeReady Smart Access Platform Block Diagram
図を取得する PDF

Features

Smart Lock Main System Control

  • Low-power LPC55S69 Arm® Cortex®-M33 smart lock solution with sensor aggregation, HMI interface, voice prompt, fingerprint matching algorithm and NFC
  • User Data Storage

Matter Access Control

  • Matter over Thread network
  • Access control through app via Matter boarder router

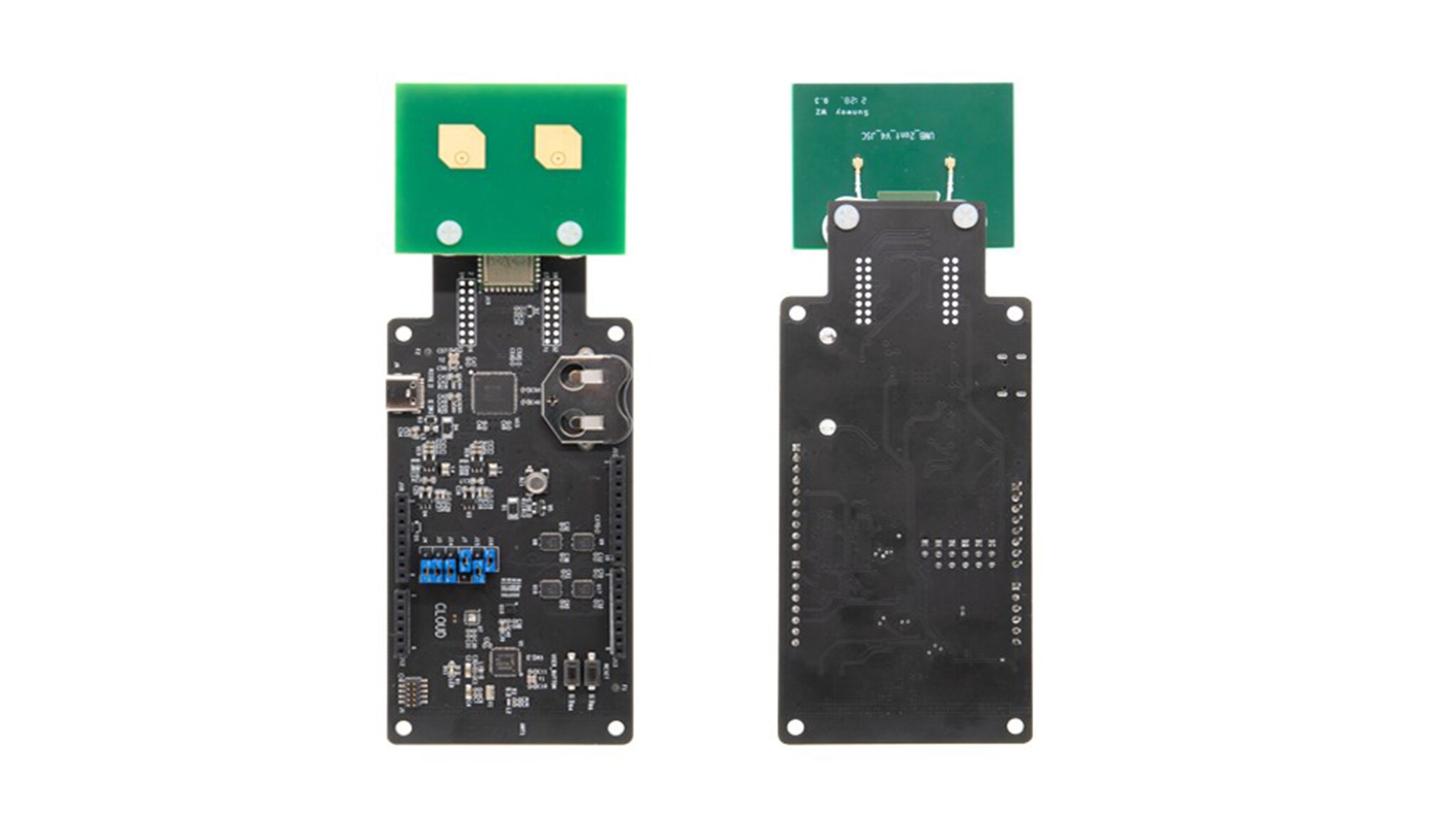

UWB Access Control

  • Access Control through UWB Phone
  • Remote Wake-up via BLE

BLE Access Control

  • Access Control though Phone App
  • User Management (ex. Add, Delete and Rename users)

Vision Access Control

  • Offline face detection and recognition
  • 2D and 3D liveness detection and anti-spoofing for security
  • Based on advanced SLN-VIZN3D-IOT turnkey solution
