Tower System Module for MC56F826xx and MC56F827xx

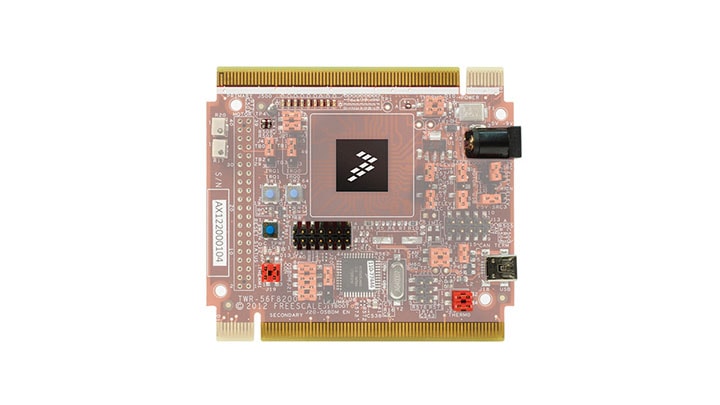

The NXP TWR-56F8200 is a standalone development board ideal for motor and digital power control applications.
It can be used in conjunction with the Tower® System peripheral boards, including the LV3PH motor control kit (TWR-MC-LV3PH module). The board includes the NXP MC56F82748 DSC preloaded with an application demonstrating the ADC and an FIR filter application that will sense heat at the four corners of the module.
Other demo applications and complete instructions and software on how to turn a 3-phase BLDC motor using the LV3PH motor control kit are available
製品詳細
対応製品
プロセッサ＆マイクロコントローラ
32ビット56800EX/EFコア
- MC56F82xxx: MC56F826xx and MC56F827xx Digital Signal Controllers
Features
Microcontroller
- Integrates to the Tower peripherals boards, including the TWR-MC-LV3PH module.
MC56F82748 DSC in a 64 LQFP package.
Connectivity
- CAN transceiver, header, and termination
- Nine LEDs controlled by the MC56F82748 DSC
- MC56F82748 is surrounded by easy access scope probes for each pin of the device
- All signals are also available on the headers
Motor control board connector for the APMOTOR56F8000E motor control board.
Sensors
- Preloaded with application demonstrating the ADC and an FIR filter application
Four thermistors for single-ended or differential analog inputs to the MC56F84789 DSC.
