Getting Started with GreenBox 3 Real-Time Development Platform
このドキュメントの内容
-
Out of the Box
-
Powering on GreenBox 3
-
Under the Hood
サインイン 進行状況を保存するには アカウントをお持ちでない方 アカウントを作成する。
お客様の GreenBox 3リアルタイム開発プラットフォーム
1. Out of the Box
GreenBox 3 is a versatile development platform for the S32Z and S32E high-performance real-time processors which integrates processing, peripherals, networking and connectivity interfaces in a rugged enclosure. The GreenBox 3 is ideal for development and demonstrations of integrated and isolated real-time applications, for domain and zonal control, safety processing and vehicle electrification.
1.1 Get to Know GreenBox 3
Pictured are the front panel connectors of GreenBox 3. These connectors will be used to help get started with GreenBox 3 with more details in the next section. The main featured processor of GreenBox 3 is the S32E288, which is a part of the S32E processor family.
2. Powering on GreenBox 3
Upon unpacking GreenBox 3, please notice that there is an SD card already inserted in the front panel connector labeled "uSDHC" slot. The SD card contains the basic software project that performs the minimum initialization to boot all of the cores of the S32E288 processor, communicates through UART with a host PC and toggles a GPIO pin to blink the User LED, which is also featured on the front panel connector of GreenBox 3.
2.1 Connect Power Supply
Also included with the shipping components of GreenBox 3 is a 12 V DC power supply. Connect the board with the 12 V DC power supply as shown below. Please keep the board powered off for now.
2.2 Connect USB Cable

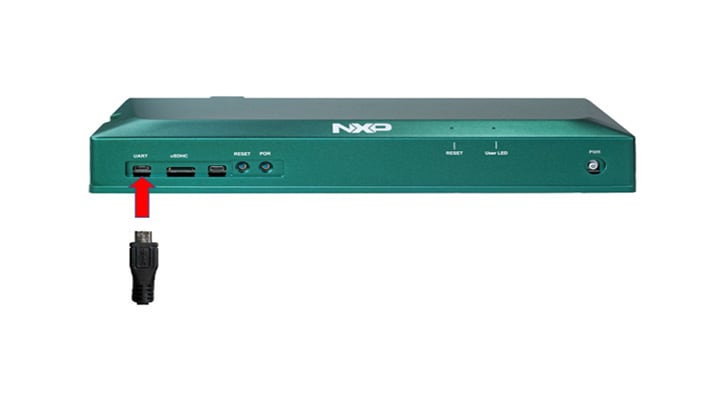

On the front side of GreenBox 3 take one end of the USB cable and insert it into the "UART" connector. Take the other end of the USB cable and insert it into your PC.
2.3 Start Preferred Serial Terminal
Install and open any serial communication terminal. Configure the terminal to be:
- 115200 Baud Rate
- 8 data bits
- No parity
- One stop bit
2.4 Power on the Device

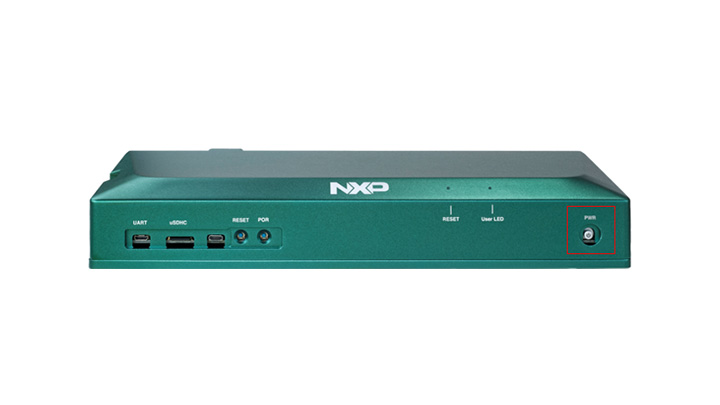

Power on the device by pressing the PWR button.
2.5 Observe

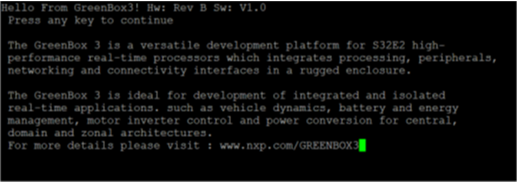

A greeting message of "Hello From GreenBox 3!" will be displayed on the terminal window. Notice that the terminal will prompt you to press any key. Once any keyboard key is pressed, the rest of the program executes that blink the User LED.
3. Under the Hood
Contained in the GreenBox 3 chassis is the printed circuit board (PCB). To access the PCB, jumper settings and additional peripherals, use a hex/allen key to remove the four screws on the bottom of the chassis. Once unscrewed, access to the entirety of GreenBox 3 is allowed.
3.1 GreenBox 3 PCB

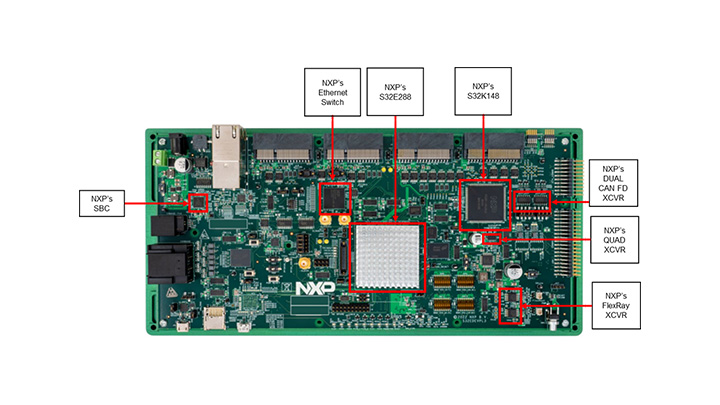

There are many integrated circuits (IC) featured in GreenBox 3. Each provides a specific purpose to allow easy development with GreenBox 3. For more in depth information about the additional ICs, jumper descriptions, software access and additional peripherals, please refer to the GreenBox 3 user manual.
Virtual COM Port Enablement
Virtual COM Port Enablement

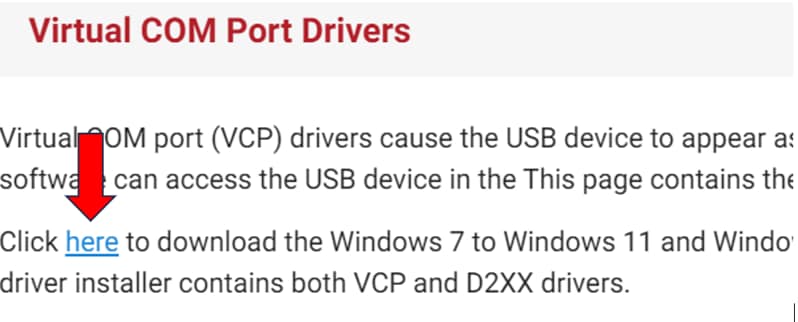

This step is only needed if you discovered your PC did not automatically configure or did not provide a COM port for the UART of GreenBox 3. If this is the first time you are using virtual COM ports, you need to configure your PC accordingly. Use the following link:
Virtual COM Port DriversFollow the necessary steps when prompted from the installer.
Installing Serial Terminal
Installing Serial Terminal

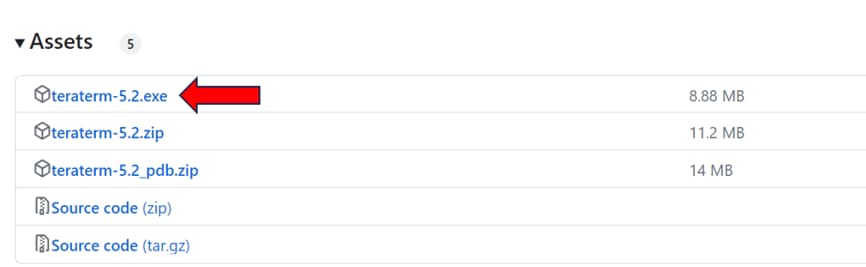

This step is only needed if you discovered your PC did not automatically configure or did not provide a COM port for the UART of GreenBox 3. If this is the first time you are using virtual COM ports, you need to configure your PC accordingly. Use the following link: Download Serial Terminal
Follow the necessary steps when prompted from the installer.
