Getting Started with the TEA2093DB2202 Evaluation Board

最終更新日時： Mar 9, 2023サポート TEA2093 Synchronous Rectification Evaluation Board

このドキュメントの内容

  • 1

    Get Started

  • 2

    Know the Board

  • 3

    Configure the Hardware

お客様の TEA2093 Synchronous Rectification Evaluation Board

このドキュメントの内容

1. Get Started

This page will help guide you through the process of learning about your TEA2093 evaluation board.

1.1 Box Contents

  • TEA2093DB2202 add-on board

1.2 Required Equipment

  • AC mains source
  • Power analyzer
  • Electronic load
  • Oscilloscope for observing operation behavior
  • Current probe
  • Differential probe (for high side SR)

1.3 Additional Hardware

  • An existing switch mode power supply board with an asymmetrical half bridge or standard flyback topology and a diode rectifier at the secondary side

次へKnow the Board

2. Know the Board

2.1 Know the Board

The TEA2093DB2202 evaluation board contains a TEA2093TS SR controller in a TSOP-6 package and a 100 V / 2.7 mΩ MOSFET in a TDSON-FL package. It replaces the secondary-side rectification part of an SMPS with an asymmetrical half bridge or standard flyback topology and can be placed at the low (ground) side as well as at the high side of the secondary transformer winding.

Additionally, the TEA2093DB2202 evaluation board contains an option to replace the mounted MOSFET by a MOSFET in a TO-220 package.

The TEA2093TS can generate its own supply voltage or operate with an external applied voltage. Both options can be configured through jumpers at the board.

前へGet Started
次へConfigure the Hardware

3. Configure Hardware

3.1 Connecting the Board to an Existing SMPS

Remove the secondary side rectifier diode from your switch mode power supply and solder the SOURCE to the anode connection and the DRAIN to the cathode connection of the diode. Configure the jumpers as described in section 7 of user manual UM11772.

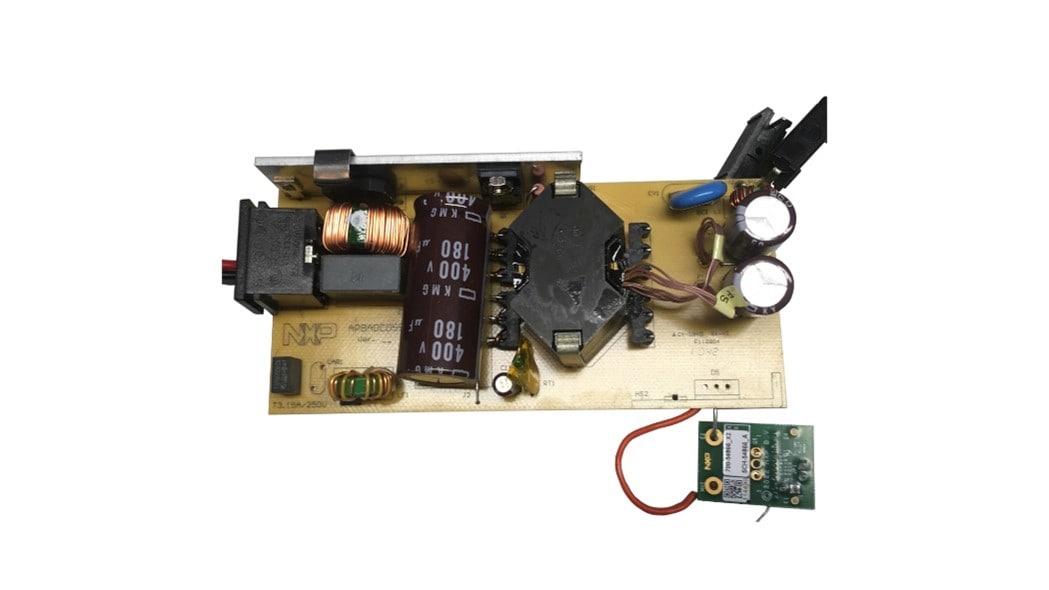

Figure 1.Connecting TEA2093DB2202 to an Existing SMPS

3.2 Connecting the Oscilloscope

The operation of the TEA2093 in the power supply can be evaluated by measuring:

For high side connection

  • The SOURCE connection
  • The GATE to SOURCE signal with a differential probe
  • The current through the MOSFET

For low (ground) side connection

  • The DRAIN connection
  • The GATE signal
  • The current through the MOSFET

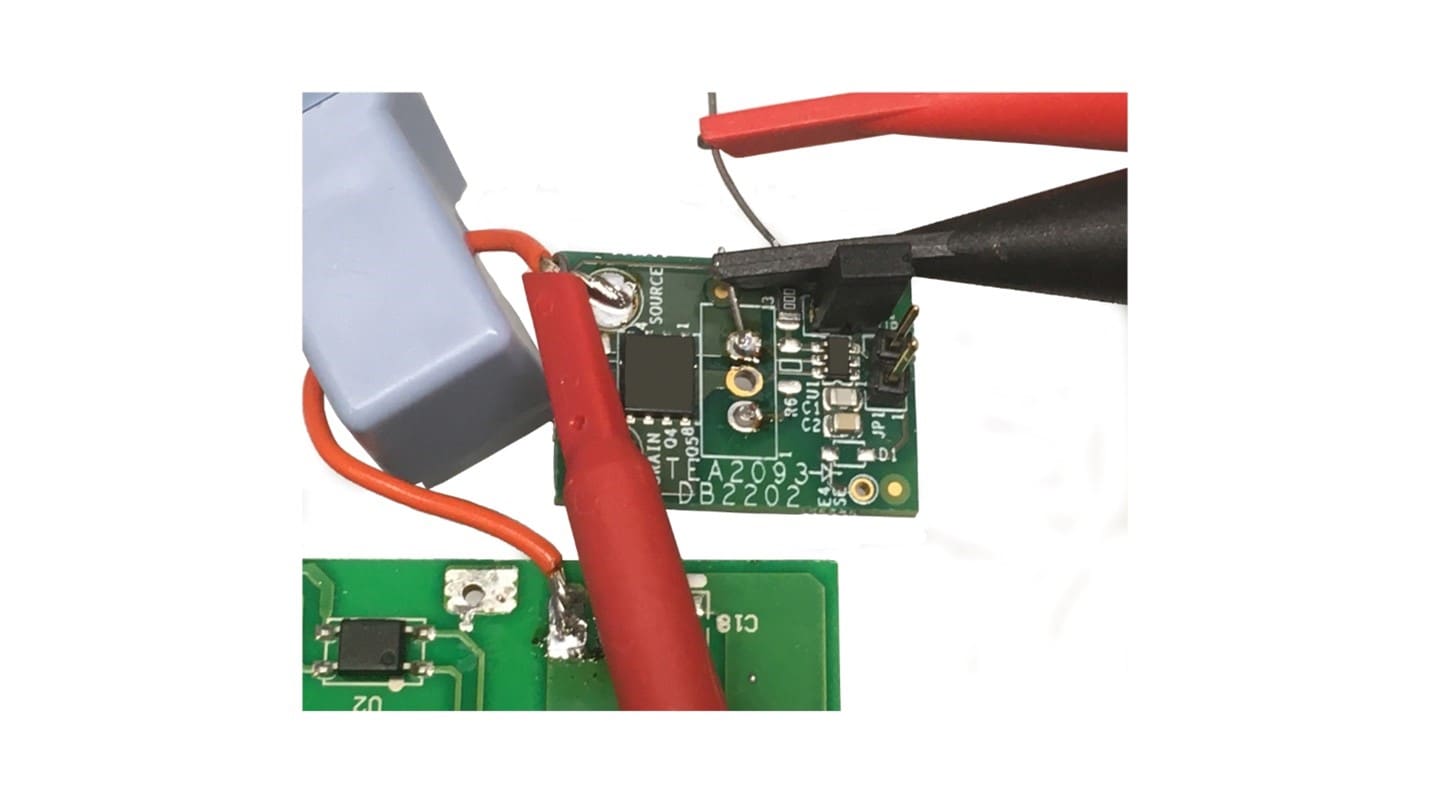

Figure 2.Connecting the Oscilloscope

3.3 Oscilloscope Signals

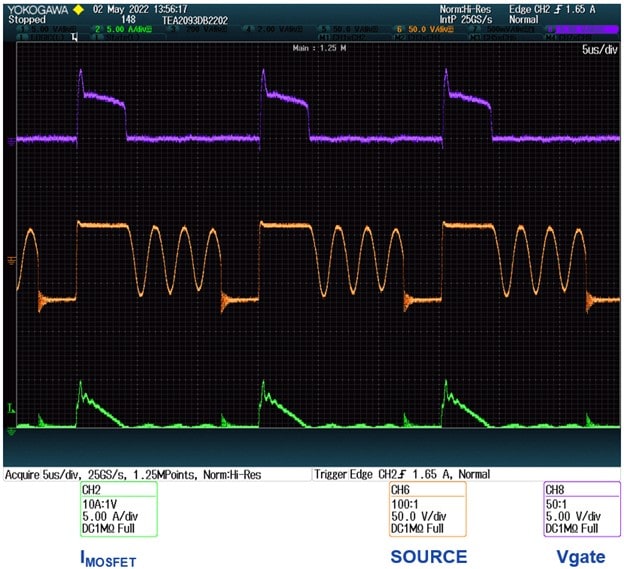

Operation in continuous conduction mode in a flyback with high side rectification

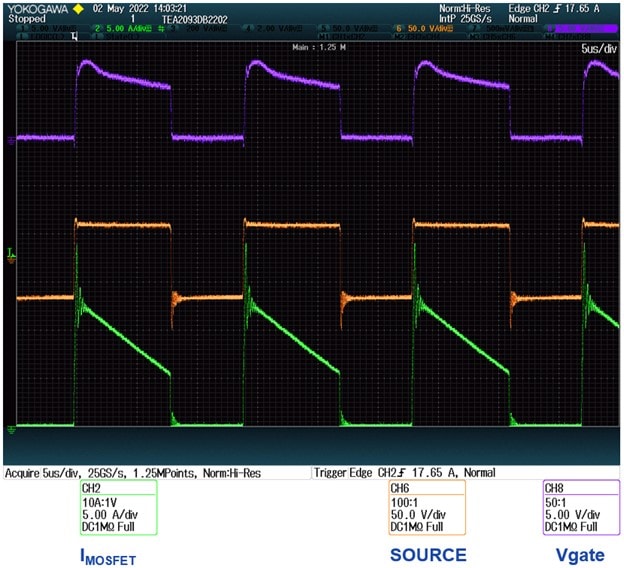

Operation in quasi resonant mode in a flyback with high side rectification

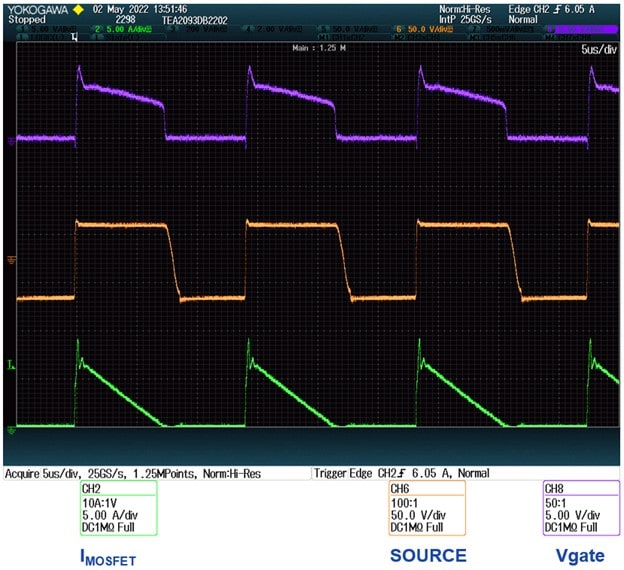

Operation in discontinuous mode in a flyback with high side rectification
