Configure HardwareThe NXP analog product development boards provide an easy-to-use platform for evaluating NXP products. The boards support a range of analog, mixed-signal and power solutions. They incorporate monolithic integrated circuits and system-in-package devices that use proven high-volume technology. NXP products offer longer battery life, a smaller form factor, reduced component counts, lower cost and improved performance in powering state-of-the-art systems.
This page will guide you through the process of setting up and using the TJA1103EVB board.
The TJA1103EVB contents include:
Something went wrong! Please try again.
In addition to the kit contents, the following hardware is necessary or beneficial when working with this board.
Something went wrong! Please try again.
The software used to communicate to the board via USB can be downloaded from NXP's website.
The software provides easy access to all settings within the PHY allowing interaction with all function modules. It is designed in such a way that basic functionality can be used via simple self explanatory dialogs and controls while at the same time giving access to all available registers, therefore not restricting the user to some predefined examples.
The following functions are supported by specifically guided dialogs:
In addition, the following dialogs allow generic access:
Something went wrong! Please try again.
Something went wrong! Please try again.
The TJA1103EVB is intended to provide an easy way to get to know and start working with the TJA1103A PHY. The EVB is designed in such a way that all configuration options can be selected via jumpers and all logic pins can be accessed via pin headers. The onboard FTDI USB to SMI/JTAG/GPIO chip and the supply-via-USB option allows operation without any external components.
Something went wrong! Please try again.

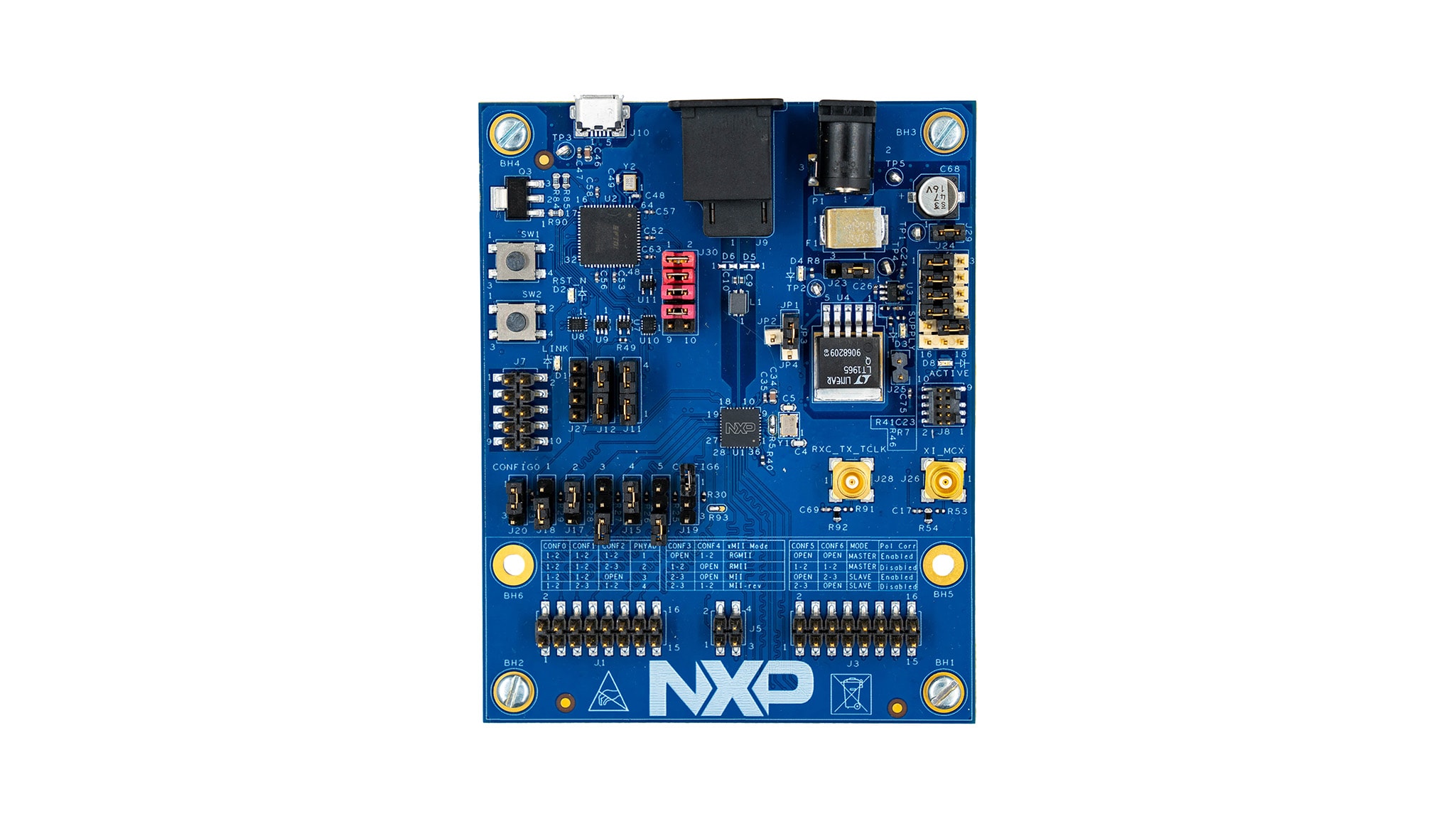

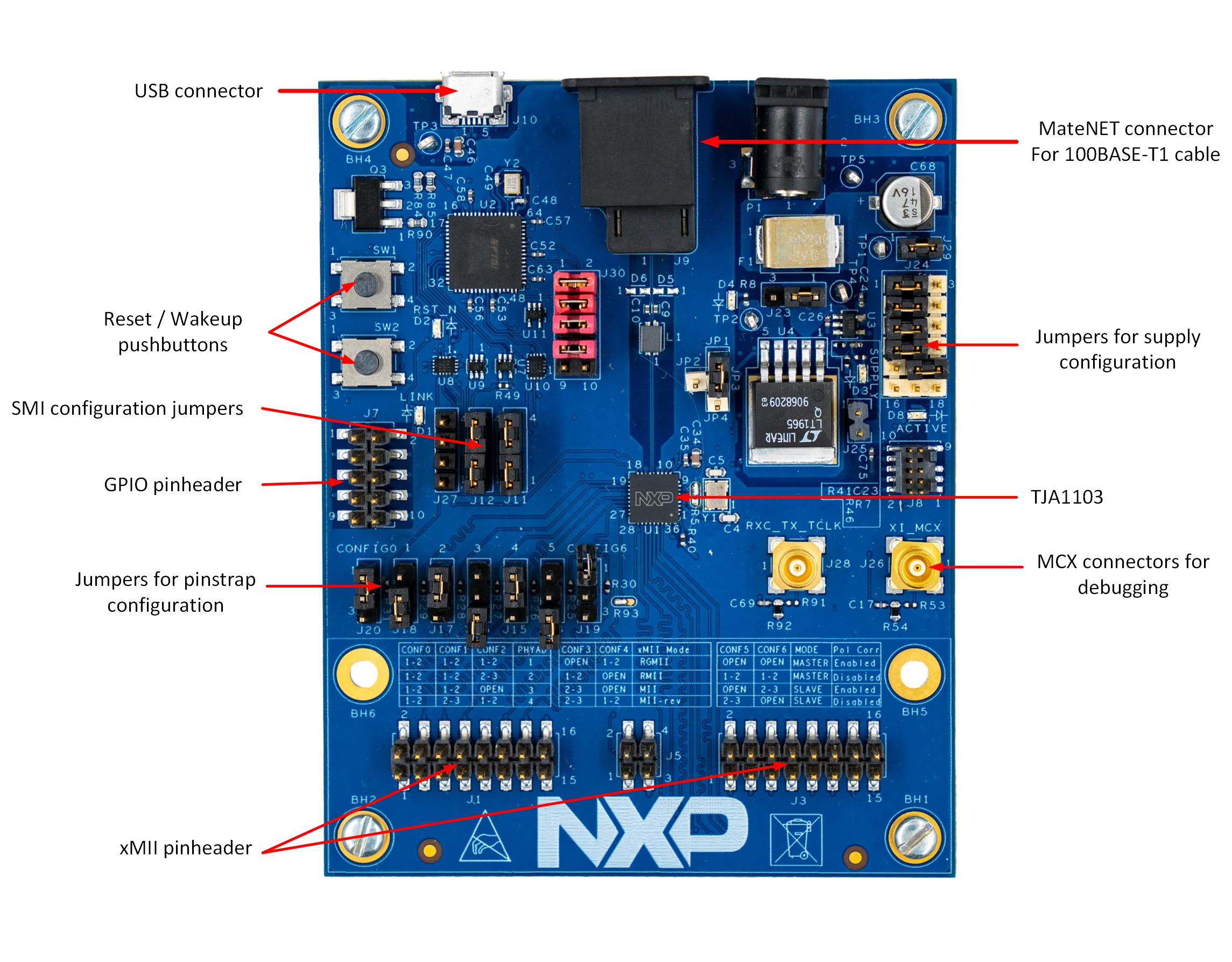

Overview of the TJA1103EVB board
Something went wrong! Please try again.
Jumper number | Default configuration | Function |
---|---|---|
J11 |
1-2, 3-4 | SMI routing |
J12 |
1-2, 3-4 | |
J20 |
1-2 | Pinstrap configuration |
J18 |
2-3 | |
J17 |
- | |
J16 |
- | |
J15 |
1-2 | |
J14 |
- | |
J19 |
- | |
JP1-4 |
1-3 | Adjustable supply voltage selector |
J23 |
2-3 | Input supply selector |
J25 |
- | LDO shutdown override |
J11
and J12
to either of the
following settings:
J11
/J12
or J5
