SOT2163-1: DHVQFN18

概要

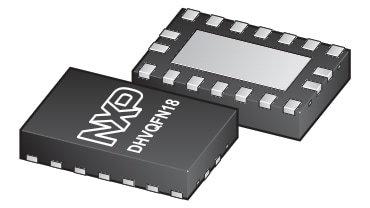

DHVQFN18: DIL-compatible thermal enhanced very thin quad flatpack; no leads;18 terminals; body 3.0 x 4.5 x 0.85 mm

パッケージバージョン	パッケージ名	マウント	端子位置	パッケージスタイル	外形寸法図	端子数	材料
SOT2163-1	DHVQFN18	surface mount	quad	DHVQFN	3 x 4.5 x 0.85	18	plastic

メーカーコード	参照コード	Issue Date
98ASA01851D		2022-12-06

製品

パーツ	説明	Quick access
TJA1446BHG	High-Speed CAN FD transceiver with partial networking, watchdog, RESET, FAIL-SAFE/LIMP and GPIO pins [ASIL B, 3.3 V VIO]	View parametrics
TJA1446AHG	High-Speed CAN FD transceiver with partial networking, watchdog, RESET, FAIL-SAFE/LIMP and GPIO pins [ASIL B, 1.8 V VIO]	View parametrics
TJA1445BHG	High-Speed CAN FD transceiver with partial networking and GPIO pins [ASIL B]	View parametrics
TJA1446CHG	High-Speed CAN FD transceiver with partial networking, watchdog, RESET, FAIL-SAFE/LIMP and GPIO pins [ASIL B, 5 V VIO]	View parametrics
TJA1465BHG	CAN SIC transceiver with partial networking and GPIO pins [ASIL B]	View parametrics
TJA1466CHG	CAN SIC transceiver with partial networking, watchdog, RESET pin, FAIL-SAFE/LIMP pin and GPIO pins [ASIL B, 1.8 V VIO]	View parametrics
TJA1466BHG	CAN SIC transceiver with partial networking, watchdog, RESET pin, FAIL-SAFE/LIMP pin and GPIO pins [ASIL B, 1.8 V VIO]	View parametrics
TJA1466AHG	CAN SIC transceiver with partial networking, watchdog, RESET pin, FAIL-SAFE/LIMP pin and GPIO pins [ASIL B, 1.8 V VIO]	View parametrics
