Features
Battery Cell Controller, Advanced, 6 Channels, TPL, LQFP48.
Package
HLQFP48 LQFP64, plastic, low profile quad flat package; 64 terminals; 0.5 mm pitch; 10 mm x 10 mm x 1.4 mm body.
特徴

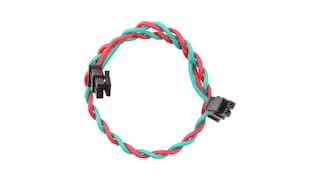

Electrical transport protocol link (ETPL), two-wire, twisted, 20 cm-long cable
購入オプション
BATT-TPLCABLE20
アクティブ
12NC: 935434855598
詳細
操作機能
| パラメータ | 値 |
|---|---|
Security Status | COMPANY PUBLIC |
Description | Electrical transport protocol link (ETPL), two-wire, twisted, 20 cm-long cable |
環境
| Part/12NC | 鉛フリー | EU RoHS | ハロゲンフリー | REACH SVHC | Weight (mg) |
|---|---|---|---|---|---|
BATT-TPLCABLE20(935434855598) | Not Available | Compliant | Not Available | Compliant | 453592.0 |
品質
| Part/12NC | 安全保障機能安全 |
|---|---|
BATT-TPLCABLE20 (935434855598) | No |
配送
| Part/12NC | 関税分類番号（米国)免責事項: |
|---|---|
BATT-TPLCABLE20 (935434855598) | 854449 |
詳細 RD33774PDSTEVB
The RD33771CDSTEVB evaluation board (EVB) features the MC33771C, a 14-channel battery cell controller for automotive and industrial Li-ion battery applications. It supports cell voltage measurement, passive cell balancing and GPIOs.
The kit is designed to support customer development and evaluation. The device can be connected to NXP's 14-cell battery emulator or a customer Li-ion battery module with 7~14 logic cells in series. Up to 63 RD33771CDSTEVB can be connected within a daisy chain. The battery cell information is transferred to the microcontroller unit (MCU) through an isolated differential communication bus using the FRDMDUAL33664EVB.
