QorIQ® Qonverge BSC9131 Single-Core Processor and Single-Core DSP

BSC9131 アクティブ
Qonverge BSC9131を使用するマルチモードLTEおよびWiFiフェムトセル - デモ

動画の上をクリックすると再生されます。

The QorIQ® Qonverge BSC9131 processor is a highly integrated device targeting small cell base station, enterprise VoIP, smart grid control, military/defense and industrial applications.

The BSC9131 device combines Power e500 and StarCore® SC3850 core technologies with MAPLE-B2F specialist DSP acceleration processing, addressing the need for a high-performance, low-cost, integrated solution, that handles a broad range of specialist DSP functions with complimentary high-performance general purpose processing.

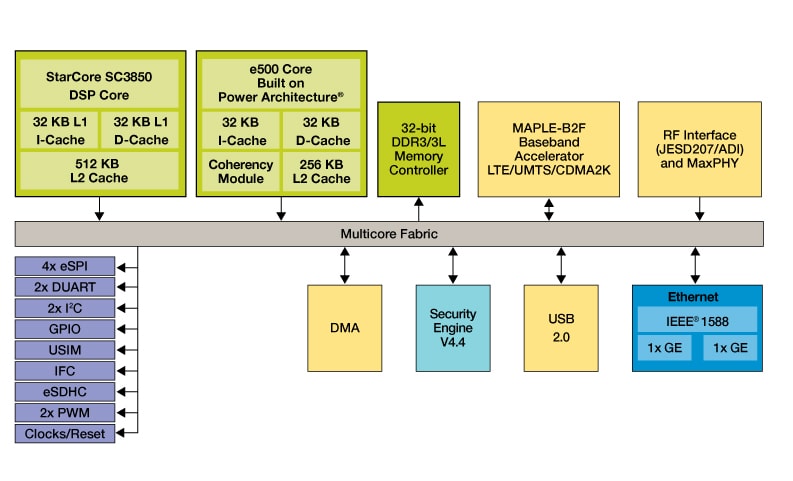

ブロック図

BSC9131 BD

QorIQ Qonverge BSC9131 Processor
図を取得する PDF

Features

  • Power Architecture subsystem including one e500 processor and 256-Kbyte shared L2 cache
  • StarCore® SC3850 DSP subsystem including 512-Kbyte private L2 cache
  • The MAPLE-B2F multi-accelerator platform engine supports functions that enable LTE-FDD/TDD, WiMAX, WCDMA/HSPA+ and CDMA2K wireless standards, as well as common DSP function acceleration including FFT, DFT and Turbo Viterbi coding
  • DDR3 memory interface with 32-bit data width (40 bits including ECC), up to 800-MHz data rate
  • Integrated Flash controller for NOR, NAND, and FPGA support
  • Trust architecture secure boot
  • Integrated security acceleration (SEC)
  • Two RF interfaces supporting JESD207 (ADI)
  • Support of MaxPhy interface (Maxim)
  • Two triple-speed Gigabit-Ethernet controllers featuring network acceleration including IEEE Std 1588v2™ hardware support
  • USB 2.0 host and device controller
  • DMA controller with four bidirectional channels that serves both the Power Architecture cores and DSP domains
  • UART, SPI, eSDHC, USIM, and I2C controllers
  • GPIO, Sixteen 32-bit timers

購入/パラメータ

1-10 の 12 結果

除外 12 NRND

パーツ

説明を表示

コンピュータ支援設計 モデル

状況

パッケージ端子数

パッケージタイプ

コア・タイプ

コア：コア数 - 仕様

動作周波数[最大](MHz)

L2 Cache (Max) (KB)

イーサネット・タイプ

Ambient Operating Temperature (Min to Max) (℃)

BSC9131NJE1HHHB
データ・シート

置き換え部品: BSC9131NJE7HHHB

生産終了 (EOL)

520

FBGA520

SC3850, e500

1

800

256

1GBaseT, SGMII

-40 to 105

BSC9131NJE7HHHB
データ・シート

生産終了 (EOL)

520

FBGA520

—

—

—

—

—

—

BSC9131NJN1HHHB
データ・シート

生産終了 (EOL)

520

FBGA520

SC3850, e500

1

800

256

1GBaseT, SGMII

-40 to 105

BSC9131NLE1HHHB
データ・シート

置き換え部品: BSC9131NLE7HHHB

生産終了 (EOL)

520

FBGA520

SC3850, e500

1

800

256

1GBaseT, SGMII

0 to 105

BSC9131NLE7HHHB
データ・シート

生産終了 (EOL)

520

FBGA520

—

—

—

—

—

—

BSC9131NSE1KHKB
データ・シート

生産終了 (EOL)

520

FBGA520

SC3850, e500

1

1000

256

1GBaseT, SGMII

0 to 105

BSC9131NSN1KHKB
データ・シート

置き換え部品: BSC9131NSN7KHKB

生産終了 (EOL)

520

FBGA520

SC3850, e500

1

1000

256

1GBaseT, SGMII

0 to 105

BSC9131NSN7KHKB
データ・シート

生産終了 (EOL)

520

FBGA520

—

—

—

—

—

—

BSC9131NXE1KHKB
データ・シート

置き換え部品: BSC9131NXE7KHKB

生産終了 (EOL)

520

FBGA520

SC3850, e500

1

1000

256

1GBaseT, SGMII

-40 to 105

BSC9131NXE7KHKB
データ・シート

生産終了 (EOL)

520

FBGA520

—

—

—

—

—

—
