Power Architecture® processor ( COP ) Probe Tips for CodeWarrior® TAP

CWH-CTP-COP-YE
アクティブ

画像にカーソルを合わせると拡大表示されます。

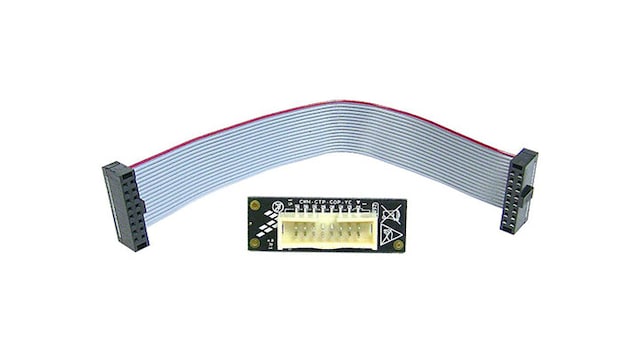

The NXP® CWH-CTP-COP-YE is a removable probe tip targeted for Power Architecture® processors (see Supported Devices for precise list). This probe tip connects the Power Architecture microprocessor target system’s JTAG port to the CodeWarrior® TAP base unit’s 30-pin target connector.

This tip is compatible with the CodeWarrior TAP CWH-CTP-BASE-HE base unit. Base units do not come with a probe tip so you must have at least one of these to debug your device.

対応製品

プロセッサ＆マイクロコントローラ

Qonvergeプラットフォーム

  • B4420: QorIQ® Qonverge B4420 Baseband Processor
  • B4860: QorIQ® B4860 Baseband Processor
  • BSC9131: QorIQ® Qonverge BSC9131 Single-Core Processor and Single-Core DSP
  • BSC9132: QorIQ® Qonverge BSC9132 Dual-Core Processor and Dual-Core DSP

Tシリーズ

  • T2080: QorIQ® T2080 and T2081 Multicore Communications Processors
  • T4240: QorIQ® T4240/T4160/T4080 Multicore Communications Processors

PowerQUICC II (MPC82xx)

  • MPC8240: Integrated Host Processor with Integrated PCI
  • MPC8241: Integrated Host Processor with Integrated PCI
  • MPC8245: Integrated Host Processor with Integrated PCI
  • MPC8247: PowerQUICC® II Processor with PCI, USB, Communications Processor Module
  • MPC8248: PowerQUICC® II Processor with PCI, USB, Security, Communications Processor Module
  • MPC8250: PowerQUICC® II Processor with PCI, 128-ch. HDLC, 10/100 Ethernet
  • MPC8255: PowerQUICC® II Processor with 128-ch. HDLC, UTOPIA II, 10/100 Ethernet
  • MPC8260: PowerQUICC® II Processor with 256-ch. HDLC, UTOPIA II, 10/100 Ethernet
  • MPC8264: PowerQUICC® II Processor with 256-ch. HDLC, UTOPIA II, 10/100 Ethernet, IMA
  • MPC8265: PowerQUICC® II Processor with PCI, 256-ch. HDLC, UTOPIA II, 10/100 Ethernet
  • MPC8266: PowerQUICC® II Processor with PCI, 256-ch. HDLC, UTOPIA II, 10/100 Ethernet, IMA
  • MPC8270: PowerQUICC® II Processor with PCI, USB, 128-ch. HDLC, 10/100 Ethernet
  • MPC8271: PowerQUICC® II Processor with PCI, USB, Communications Processor Module with UTOPIA
  • MPC8272: PowerQUICC® II Processor with PCI, USB, Security, Communications Processor Module with UTOPIA
  • MPC8275: PowerQUICC® II Processor with PCI, USB, 128-ch. HDLC, UTOPIA II Ports, 10/100 Ethernet
  • MPC8280: PowerQUICC® II Processor with PCI, USB, 256-ch. HDLC, UTOPIA II Ports, 10/100 Ethernet, IMA

PowerQUICC II Pro (MPC83xx)

  • MPC8306: Low-Power PowerQUICC® II Pro Processor with DDR2, eSDHC, 128-ch. HDLC/TDM, 10/100 Ethernet, USB, IEEE® 1588
  • MPC8308: Low-Power PowerQUICC® II Pro Processor with DDR2, eSDHC, PCI Express, eTSEC, USB, IEEE® 1588
  • MPC8309: Low-Power PowerQUICC® II Pro Processor with DDR2, eSDHC, 128-ch. HDLC/TDM, 10/100 Ethernet, USB, IEEE® 1588
  • MPC8313E: Low-Power PowerQUICC® II Pro Processor with DDR2, PCI, 1 GB Ethernet, Security, USB
  • MPC8314E: Low-Power PowerQUICC® II Pro Processor with DDR2, TDM, PCI, PCI Express, 1 GB Ethernet, Security, USB
  • MPC8315E: Low-Power PowerQUICC® II Pro Processor with DDR2, TDM, PCI, PCI Express, SATA, 1 GB Ethernet, Security, USB
  • MPC8321: Low-Power PowerQUICC® II Pro Processor with DDR2, TDM, PCI, Security, USB, QUICC Engine®
  • MPC8321E: Low-Power PowerQUICC® II Pro Processor with DDR2, TDM, PCI, Security, USB, QUICC Engine®
  • MPC8323: Low-Power PowerQUICC® II Pro Processor with DDR2, TDM, PCI, Security, USB, QUICC Engine® with UTOPIA
  • MPC8323E: Low-Power PowerQUICC® II Pro Processor with DDR2, TDM, PCI, Security, USB, QUICC Engine® with UTOPIA
  • MPC8343E: PowerQUICC® II Pro Processor with DDR2, Dual PCI, 1 GB Ethernet, Dual USB, Security
  • MPC8347E: PowerQUICC® II Pro Processor with DDR2, PCI, 1 GB Ethernet, Dual USB, Security
  • MPC8349E: PowerQUICC® II Pro Processor with DDR2, Dual PCI, 1 GB Ethernet, Dual USB, Security
  • MPC8358E: PowerQUICC® II Pro Processor with DDR2, TDM, PCI, Security, USB, QUICC Engine® with 1 GB Ethernet, UTOPIA
  • MPC8360E: PowerQUICC® II Pro Processor with DDR2, TDM, PCI, Security, USB, QUICC Engine® with 1 GB Ethernet, UTOPIA
  • MPC8377E: PowerQUICC® II Pro Processor with DDR2, PCI, PCI Express, SATA, 1 GB Ethernet, USB, Security
  • MPC8378E: PowerQUICC® II Pro Processor with DDR2, PCI, PCI Express, 1 GB Ethernet, USB, Security
  • MPC8379E: PowerQUICC® II Pro Processor with DDR2, PCI, SATA, 1 GB Ethernet, USB, Security

PowerQUICC III (MPC85xx)

  • MPC8533E: MPC8533E PowerQUICC® III Processor
  • MPC8535E: PowerQUICC® III Processor with DDR2/3, eSDHC, PCI, PCI Express, SATA, SerDes, 1 GB Ethernet, USB, Security
  • MPC8536E: MPC8536E Communications Processors
  • MPC8541E: PowerQUICC® III Processor with TDM, DDR, PCI, 1 GB Ethernet, Security, CPM with UTOPIA
  • MPC8543E: PowerQUICC® III Processor with DDR2, PCI, PCI Express®, Serial RapidIO, SerDes, 1 GB Ethernet, Security
  • MPC8544E: PowerQUICC® III Processor with DDR2, PCI, PCI Express®, SerDes, 1 GB Ethernet, SGMII, Security
  • MPC8545E: PowerQUICC® III Processor with DDR2, PCI, PCI Express®, SerDes, 1 GB Ethernet, Security
  • MPC8547E: PowerQUICC® III Processor with DDR2, PCI, PCI Express®, SerDes, 1 GB Ethernet, Security
  • MPC8548E: PowerQUICC® III Processor with DDR2, PCI, PCI Express®, Serial RapidIO, SerDes, 1 GB Ethernet, Security
  • MPC8555E: PowerQUICC® III Processor with TDM, DDR, PCI, 1 GB Ethernet, Security, CPM with UTOPIA
  • MPC8560: PowerQUICC® III Processor with TDM, DDR, PCI, PCIx Express®, RapidIO, 1 GB Ethernet, Security, CPM with UTOPIA
  • MPC8569E: PowerQUICC® III Processor with DDR2/3
  • MPC8572E: PowerQUICC® III Processor with DDR2/3, Pattern Matching Engine, PCI Express®

もっと見る

Features

  • Expansion Port
    • Removable probe tip
    • Low cost and economical to order several spares
    • Allows base unit to work with several different target types

購入オプション

CWH-CTP-COP-YE-Image

クリックして展開

  • CWH-CTP-COP-YE
    アクティブ

  • CodeWarrior TAP removable probe tip for Power Architecture with JTAG port (order with base unit).

  • $67.85 USD
  • の数量に対して 1
    • 在庫: 在庫あり
    • 在庫: 5
    • 配送: 通常 1～2営業日以内に配送
カートに入れる
