NFC Wireless Charging Communication Receiver Frontend
NFC Wireless Charging Transmitter Front-End

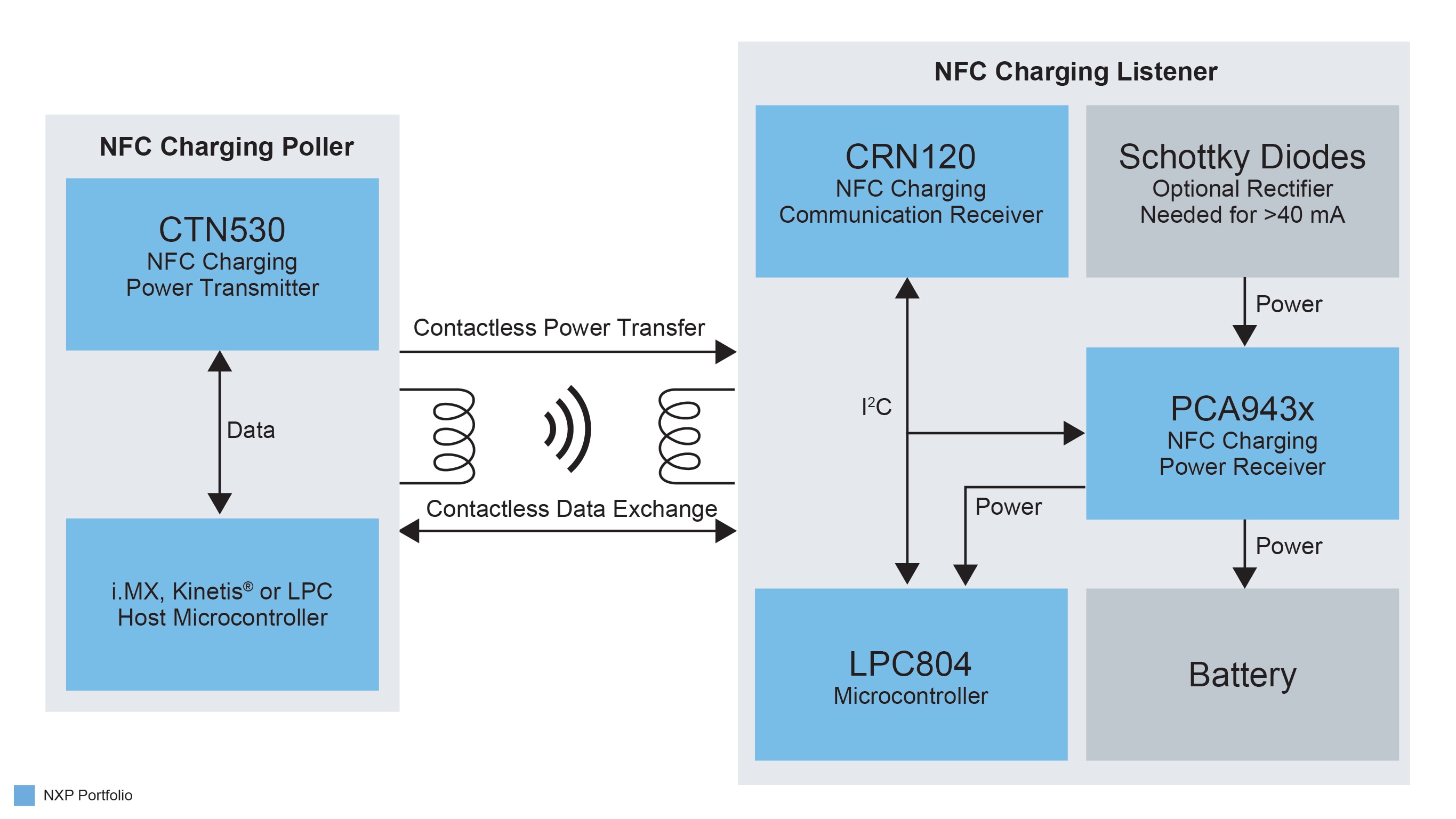

Designed for higher power at lower cost, the CTN530 follows the NFC Forum standard for wireless charging. Supporting I²C, SPMI and UART, the CTN530 is compatible with popular MCUs, including LPC, Kinetis and i.MX. It is built to be used in charging applications like stylus pens, smart glasses, wearables and hearables.
製品詳細
Features
Power
- Up to 350mA, supporting up to 1.75W
Battery Life
- Supply voltage: 2.5 to 5.5 V
- Power-save modes: hard power-down, standby
- Supporting low-power device discovery (LPCD)
Multiple interfaces to support a broad range of microcontrollers
- Host interfaces: SPI, I2C, UART
- Up to 8 GPOs
