DSI 2.02 Sensor Interface

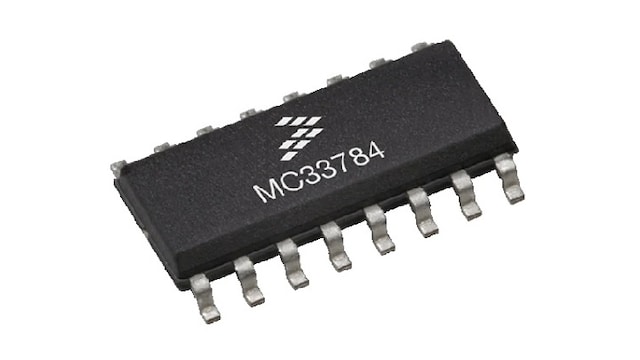

MC33784
アクティブ

画像にカーソルを合わせると拡大表示されます。

The NXP® MC33784 is a follower distributed system interface bus (DBUS), version 2.02 compatible device optimized as a sensor interface.

  • Contains circuits to power sensors such as accelerometers and to digitize the analog level from the sensor
  • The device is controlled by commands over the bus, and returns measured data and other information over the bus
  • Tools: Limited Evaluation boards available; contact sales

ブロック図

Freescale MC33784 Network Transceivers

NXP<sup>&#174;</sup> MC33784 Network Transceivers Block DiagramV
図を取得する PDF

Features

Key Features

  • DSI version 2.02 compatible
  • 2-channel, 10-bit analog-to-digital converter (ADC)
  • 3 pins configurable as logic inputs or outputs
  • Provides regulated +5.0v output for sensor power from bus
  • On-board clock (no external elements required)
  • Includes bus switches on bus and bus return

購入/パラメータ

1 結果

マッチしていない 0 NRND

パーツ

説明を表示

注文

コンピュータ支援設計 モデル

状況

製品機能

データ・レート（最大）（Kbps）

負荷電源電圧（最小）（V）

負荷電源電圧（最大）（V）

電源電圧 [最小] (V)

電源電圧 [最大] (V)

Ambient Operating Temperature (Min to Max) (℃)

MCZ33784EF
データ・シート

アクティブ

comm transceivers

200.0

4.9

5.1

6

30

-40 to 125

N true 0 PSPMC33784ja 4 アプリケーション・ノート Application Note t789 2 データ・シート Data Sheet t520 1 ファクト・シート Fact Sheet t523 1 ja 1 1 3.0 English The 33784 is a follower, Distributed System Interface Bus (DBUS), version 2.02 compatible device. 1217452031759715571385 PSP 1.1 MB None None documents None 1217452031759715571385 /docs/en/data-sheet/MC33784.pdf 1060265 /docs/en/data-sheet/MC33784.pdf MC33784 N N 2016-10-31 MC33784, DSI 2.02 Sensor Interface /docs/en/data-sheet/MC33784.pdf /docs/en/data-sheet/MC33784.pdf Data Sheet N Y 980000996212993340 2022-12-07 pdf N en Nov 6, 2009 Data Sheet t520 データ・シート Data Sheet Y N MC33784, DSI 2.02 Sensor Interface false ja ja アプリケーション・ノート Application Note 2 2 3.0 English This application note provides guidelines for handling and assembly of SOIC package during Printed Circuit Board (PCB) assembly. 10jsBvfc PSP 3.5 MB None None documents None 10jsBvfc /docs/en/application-note/AN2409.pdf 3536520 /docs/en/application-note/AN2409.pdf AN2409 documents N N 2016-10-31 AN2409, Small Outline Integrated Circuit (SOIC) Package - Application Note /docs/en/application-note/AN2409.pdf /docs/en/application-note/AN2409.pdf Application Note N 645036621402383989 2024-01-19 pdf N en Oct 21, 2014 645036621402383989 Application Note Y N AN2409, Small Outline Integrated Circuit (SOIC) Package - Application Note 3 1.0 English The MC33781 and MC33784 together constitute NXP Semiconductors's implementation of the Distributed System Interface (DSI) Bus Standard, Version 2.02. 1225311007711718167766 PSP 1.0 MB None None documents None 1225311007711718167766 /docs/en/application-note/AN3670.pdf 1013814 /docs/en/application-note/AN3670.pdf AN3670 documents N N 2016-10-31 AN3670, Implementing a DSI Network Using the MC33781 and the MC33784 /docs/en/application-note/AN3670.pdf /docs/en/application-note/AN3670.pdf Application Note N 645036621402383989 2024-01-19 pdf N en Oct 29, 2008 645036621402383989 Application Note Y N AN3670, Implementing a DSI Network Using the MC33781 and the MC33784 ファクト・シート Fact Sheet 1 4 9 English AIRBAGFS: Freescale is a leading semiconductor supplier for next-generation airbag applications with custom and standard microcontrollers (MCU), analog and sensor products. We offer solutions for point-to-point and bus-based satellite interface architectures with the established distributed system interface (DSI) as well as the emerging peripheral sensor interface (PSI5) architectures. 1208540600963727452987 PSP 366.7 KB None None documents None 1208540600963727452987 /docs/en/fact-sheet/AIRBAGFS.pdf 366678 /docs/en/fact-sheet/AIRBAGFS.pdf AIRBAGFS documents N N 2016-10-31 Automotive Airbag Safety Systems - Fact Sheet /docs/en/fact-sheet/AIRBAGFS.pdf /docs/en/fact-sheet/AIRBAGFS.pdf Fact Sheet N 736675474163315314 2025-02-24 pdf N en Sep 12, 2016 736675474163315314 Fact Sheet Y N Automotive Airbag Safety Systems - Fact Sheet false 0 MC33784 downloads ja true 1 Y PSP アプリケーション・ノート 2 /docs/en/application-note/AN2409.pdf 2016-10-31 10jsBvfc PSP 2 Oct 21, 2014 Application Note This application note provides guidelines for handling and assembly of SOIC package during Printed Circuit Board (PCB) assembly. None /docs/en/application-note/AN2409.pdf English documents 3536520 None 645036621402383989 2024-01-19 N /docs/en/application-note/AN2409.pdf AN2409, Small Outline Integrated Circuit (SOIC) Package - Application Note /docs/en/application-note/AN2409.pdf documents 645036621402383989 Application Note N en None Y pdf 3.0 N N AN2409, Small Outline Integrated Circuit (SOIC) Package - Application Note 3.5 MB AN2409 N 10jsBvfc /docs/en/application-note/AN3670.pdf 2016-10-31 1225311007711718167766 PSP 3 Oct 29, 2008 Application Note The MC33781 and MC33784 together constitute NXP Semiconductors's implementation of the Distributed System Interface (DSI) Bus Standard, Version 2.02. None /docs/en/application-note/AN3670.pdf English documents 1013814 None 645036621402383989 2024-01-19 N /docs/en/application-note/AN3670.pdf AN3670, Implementing a DSI Network Using the MC33781 and the MC33784 /docs/en/application-note/AN3670.pdf documents 645036621402383989 Application Note N en None Y pdf 1.0 N N AN3670, Implementing a DSI Network Using the MC33781 and the MC33784 1.0 MB AN3670 N 1225311007711718167766 データ・シート 1 /docs/en/data-sheet/MC33784.pdf 2016-10-31 1217452031759715571385 PSP 1 Nov 6, 2009 Data Sheet データ・シート The 33784 is a follower, Distributed System Interface Bus (DBUS), version 2.02 compatible device. None /docs/en/data-sheet/MC33784.pdf English 1060265 None Data Sheet 2022-12-07 N /docs/en/data-sheet/MC33784.pdf MC33784, DSI 2.02 Sensor Interface /docs/en/data-sheet/MC33784.pdf documents 980000996212993340 Data Sheet N Y en None Y t520 pdf 3.0 N N MC33784, DSI 2.02 Sensor Interface 1.1 MB MC33784 N 1217452031759715571385 ファクト・シート 1 /docs/en/fact-sheet/AIRBAGFS.pdf 2016-10-31 1208540600963727452987 PSP 4 Sep 12, 2016 Fact Sheet AIRBAGFS: Freescale is a leading semiconductor supplier for next-generation airbag applications with custom and standard microcontrollers (MCU), analog and sensor products. We offer solutions for point-to-point and bus-based satellite interface architectures with the established distributed system interface (DSI) as well as the emerging peripheral sensor interface (PSI5) architectures. None /docs/en/fact-sheet/AIRBAGFS.pdf English documents 366678 None 736675474163315314 2025-02-24 N /docs/en/fact-sheet/AIRBAGFS.pdf Automotive Airbag Safety Systems - Fact Sheet /docs/en/fact-sheet/AIRBAGFS.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 9 N N Automotive Airbag Safety Systems - Fact Sheet 366.7 KB AIRBAGFS N 1208540600963727452987 true Y Products
