Absolute, Integrated Pressure Sensor (15 to 400 kPa)

MPXx6400 アクティブ

The MPxx6400 family (MPXH6400A and MPXHZ6400A) of pressure sensors offers high reliability of on-chip integration in a small form factor, targeting automotive and industrial applications.

  • Delivers a state-of-the-art, monolithic, signal-conditioned silicon pressure sensor
  • Combines advanced micro-machining techniques, thin-film metallization and bipolar semiconductor processing to provide an accurate high-level analog output signal, proportional to applied pressure
  • Provides a high-output signal and temperature compensation
  • Presents a logical and economical choice for your system designs

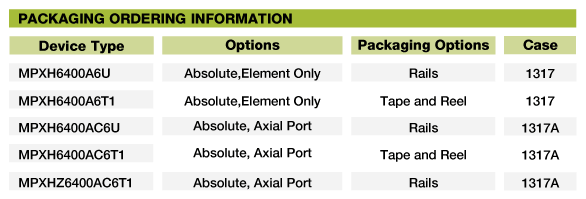

ブロック図

MPXx6400 Absolute, Integrated Pressure Sensor (15 to 400kPa)

MPXx6400 Absolute, Integrated Pressure Sensor (15 to 400kPa)
図を取得する PDF

Features

Key Features

  • Improved accuracy at high temperature
  • Durable thermoplastic (PPS) surface mount package
  • Temperature compensated from -40° to +125 °C
  • Ideally suited for microprocessor or microcontroller-based systems
  • 1.5 percent maximum error over 0° to 85 °C
  • Available in small and super small outline packages
