QorIQ® P5040/5021 64-bit Dual- and Quad-Core Communications Processors
- このページでは、新規設計を推奨しない製品に関する情報を掲載しています。
P5040 device is "Not recommended for new designs", please use the replacement families Power Architecture (T4080), Arm Architecture (LS1046, LS2044, LS2080).
The QorIQ® P5 family delivers scalable, 64-bit processing with single-, dual-, and quad-core devices. With frequencies scaling up to 2.2 GHz, a tightly coupled cache hierarchy for low latency, and integrated hardware acceleration, the P5040 (quad-core) and P5021 (dual-core) devices are ideally suited for compute-intensive, power-conscious control plane applications.
製品詳細

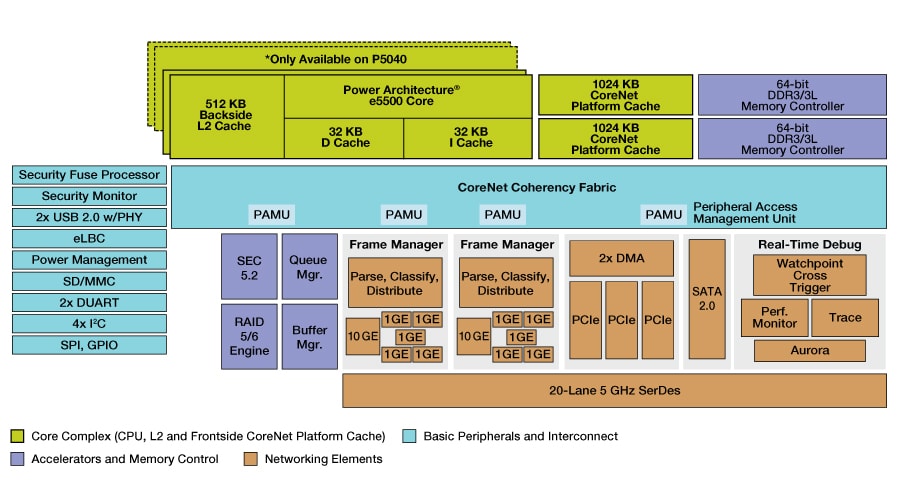

Features
Core Complex
- Four (P5040) or two (P5021) single-threaded e5500 cores built on Power Architecture® technology
- Up to 2.2 GHz with 64-bit ISA support (Power Architecture v2.06-compliant)
- Three levels of instruction: user, supervisor, hypervisor
- Hybrid 32-bit mode to support legacy software and transition to 64-bit architecture
- 2.0 MB configures as dual 1 MB platform cache
Networking Elements
- SerDes
- 20 lanes at up to 5 Gbps
- Supports SGMII, XAUI, PCI Express® (PCIe) rev1.1/2.0, SATA
- Ethernet interfaces
- Two 10 Gbps Ethernet MACs
- Ten 1 Gbps Ethernet MACs
Accelerators and Memory Control
- Two 64-bit DDR3/3L SDRAM memory controllers with ECC and interleaving support
- Up to 1600MT/s
- DPAA incorporating acceleration for the following functions
- Packet parsing, classification, and distribution (FMAN)
- Queue management for scheduling, packet sequencing and congestion management (QMAN)
- Hardware buffer management for buffer allocation and de-allocation (BMAN)
- Cryptography acceleration (SEC 5.2) at up to 20Gbps
- RAID 5 and 6 storage accelerator with support for end-to-end data protection information
Basic Peripherals and Interconnect
- Three PCIe 2.0/3.0 controllers
- Two serial ATA (SATA 2.0) controllers
- Two high-speed USB 2.0 controllers with integrated PHY
- Enhanced secure digital host controller (SD/MMC/eMMC)
- Four I²C controllers
- Two DUARTs
- Integrated flash controller supporting NAND and NOR flash
- Two 4-channel DMA engines
Additional Features
- Support for hardware virtualization and partitioning enforcement
- Extra privileged level for hypervisor support
- QorIQ® trust architecture 1.1
- Secure boot, secure debug, tamper detection, volatile key storage
比較表
| P5040 | P5021 | |
|---|---|---|
| Cores | 4 | 2 |
| Core Frequency | 1.8 to 2.2 GHz | 1.8 to 2.2 GHz |
| L2 Cache | 512 KB | 512 KB |
| L3/Platform Cache | 2 MB | 2 MB |
| DDR3 | 2x 64-bit | 2x 64-bit |
| GbE | 10x 1 GbE 2x 10 GbE | 10x 1 GbE 2x 10 GbE |
| SERDES | 20 Lanes | 20 Lanes |
| Security | Trust | Trust |
