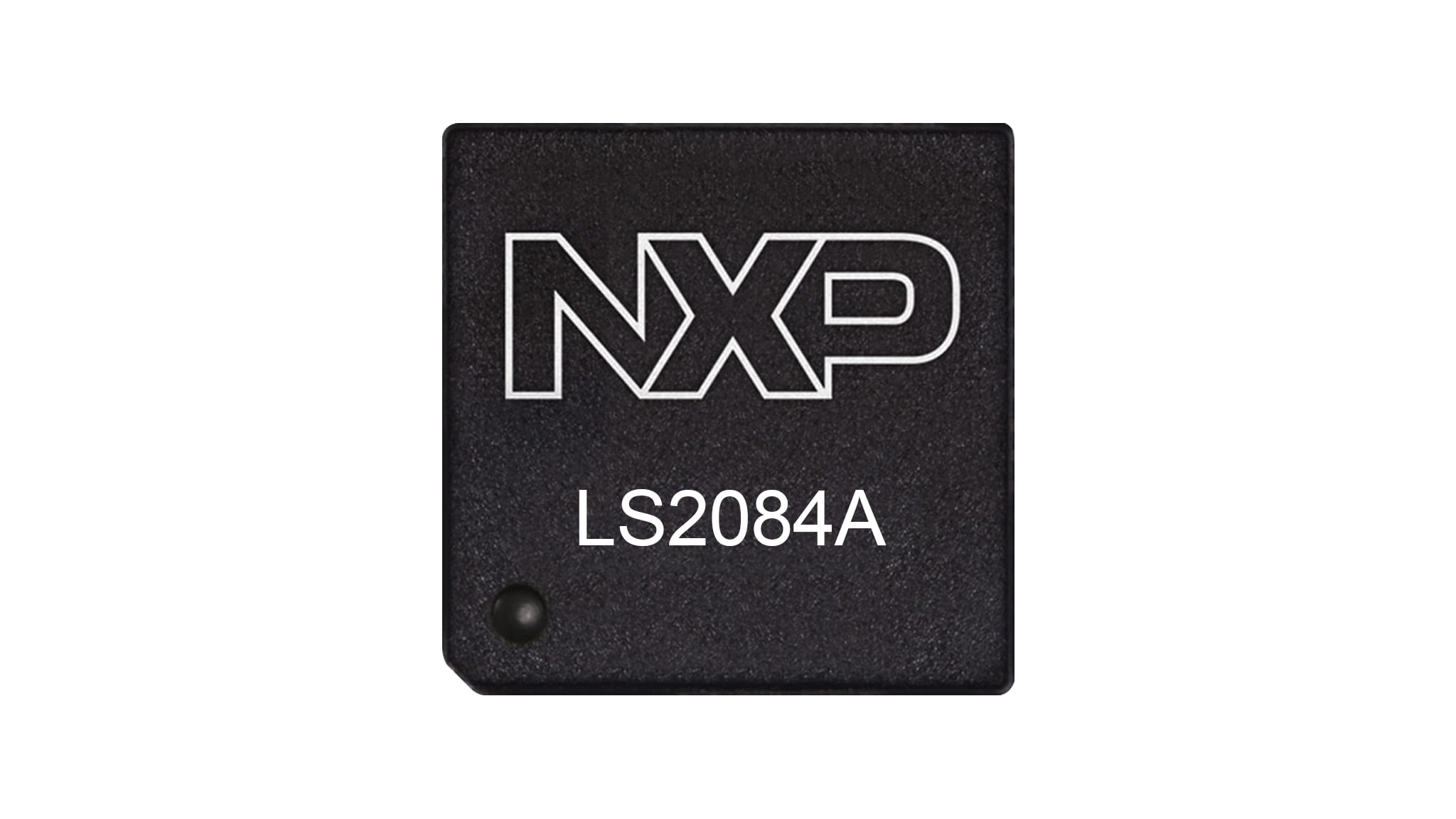

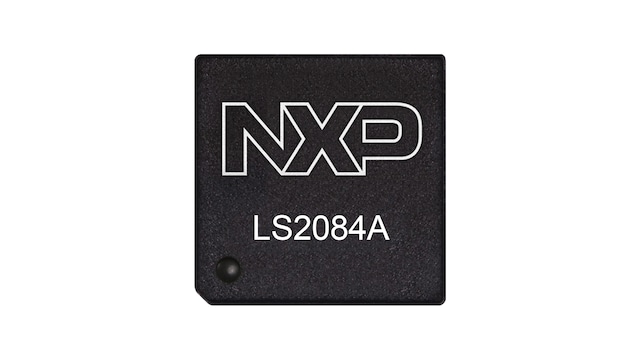

Layerscape 2084A and 2044A Multicore Processors
The LS2 family of processors delivers unprecedented performance and integration for tomorrow's smarter, more capable networks. The eight-core LS2084A and the four-core LS2044A multicore processors offer Arm® Cortex®- A72 cores with the advanced, high-performance datapath and network peripheral interfaces required for networking, telecom/datacom, wireless infrastructure, military, aerospace and automotive applications.
The next-generation datapath architecture, combined with a powerful software toolkit, provides a higher level of hardware abstraction and makes software development quick and simple.
This combination balances ease-of-use with high-performance processing in a Linux® environment that is familiar to any software programmer. Customers can fully exploit the underlying hardware and easily adapt to network changes for real-time 'soft' control over the network.
Layerscape processors are part of NXP's EdgeVerse™ edge computing platform.
製品詳細
Features
Core Complex
- Eight 64-bit Arm Cortex-A72 CPUs
- Up to 2 GHz,
- Clusters of two cores sharing 1 MB L2 cache
- 1 MB L3 platform cache
- Two 64-bit DDR4 SDRAM memory controllers
- ECC and interleaving support,
- Up to 2.1 GT/s
Networking Elements
- Wire Rate I/O processor, featuring:
- 8x 10 GbE
- 8x 1 GbE
- L2 switching on the Ethernet interface
- XAUI/XFI/KR and SGMII
- MACSec on up to four 1/10 GbE
- 2x SATA 3.0
- 4x PCIe Gen 3 controllers
- SR-IOV support, Root Complex
Accelerators and Memory Control
- 20 Gb/s SEC crypto acceleration
- 10 Gb/s Pattern Matching Engine
- 20 Gb/s Data Compression Engine
- 4 PCIe controllers (Gen3) supporting 1x8, 4x4, 4x2, 4x1 lane configurations
Basic Peripherals and Interconnect
- Support for hardware virtualization and partitioning enforcement
- Implements trust architecture combined with TrustZone®
- Service processor (SP) provides pre-boot initialization and secure-boot capabilities
- 2x USB 3.0 with PHY
- Enhanced secure digital host controller
- Serial peripheral interface (SPI) controller
- Quad Serial peripheral interface (QSPI) controller
- Four I²C controllers
- Two DUARTs
- Integrated flash controller (IFC 2.0) supporting NAND and NOR flash
