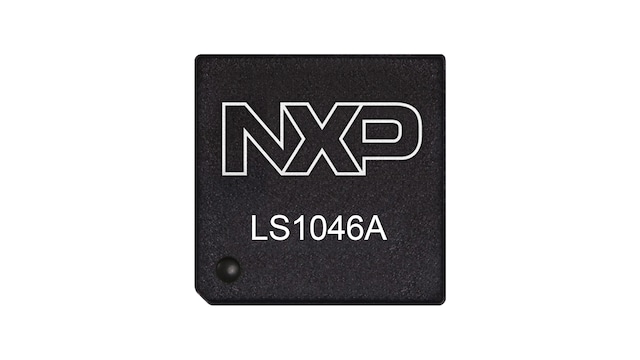

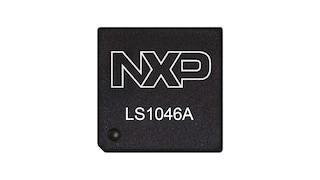

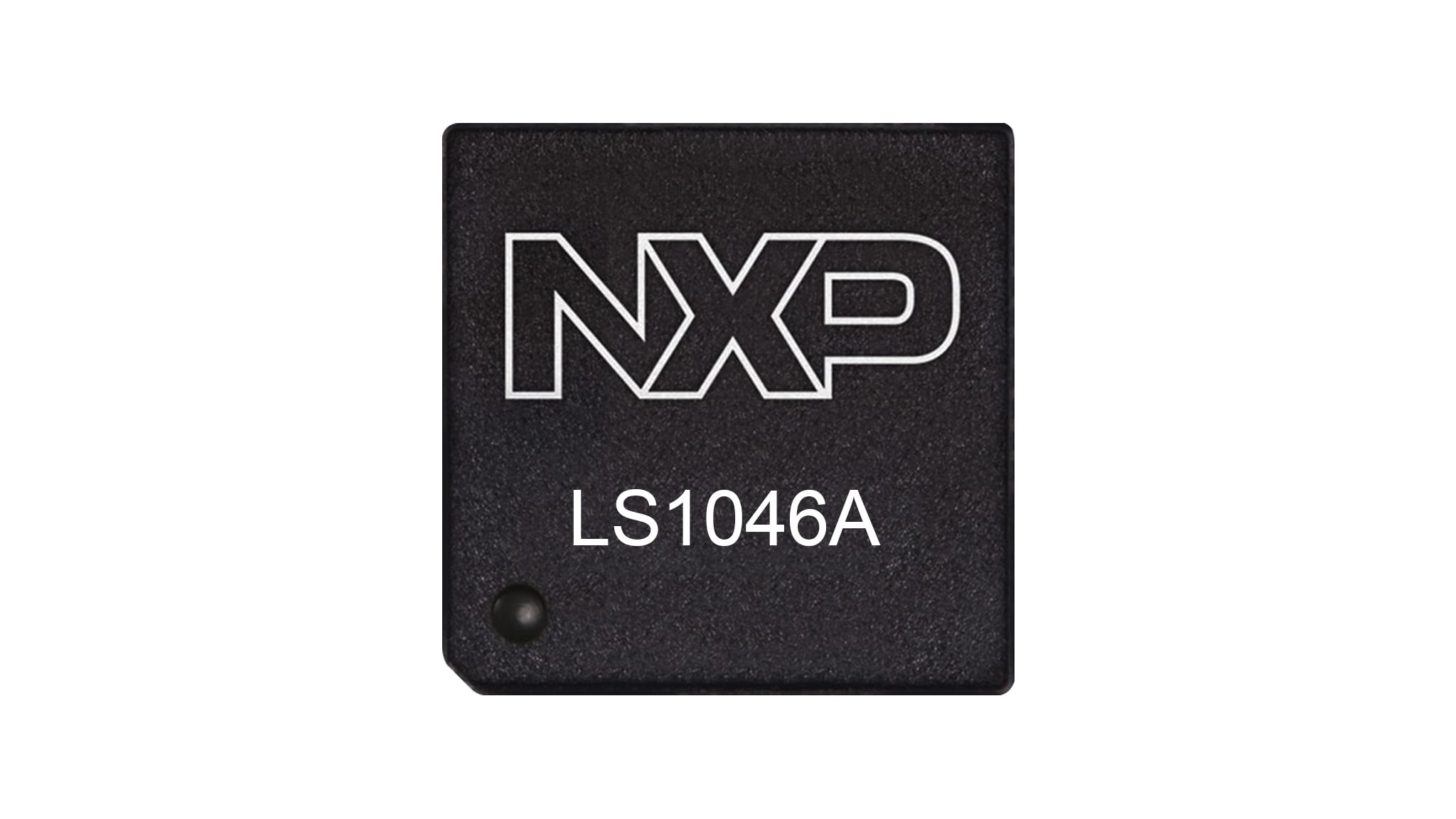

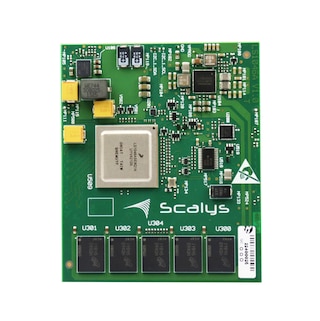

Layerscape® 1046A and 1026A Processors

LS1046A アクティブ
Building Automation

動画の上をクリックすると再生されます。

The LS1046A and LS1026A processors integrate quad and dual 64-bit Arm® Cortex®-A72 cores respectively with packet processing acceleration and high-speed peripherals. They are pin-compatible with LS1023A, LS1043A and LS1088A SoC to provide performance scaling for 64-bit Arm, ranging from dual-A53 through octal-A53 to quad-A72 core processors, while maintaining hardware and software compatibility.

Layerscape processors are part of NXP's EdgeVerse™ edge computing platform.

Both devices are proven certifiable to the Arm SystemReady ES  standard to ensure interoperability with standard operating systems and hypervisors.

ブロック図

LS1046A Processors Block Diagram

LS1046A Processors Block Diagram
図を取得する PDF

Features

Core Complex

  • Four Cortex-A72 cores
  • 2MB L2 cache

Networking Elements

  • 2x 10 GbE, 1x 2.5 GbE, and 5x GbE
  • Eight-lane SerDes up to 10 GHz multiplexed across controllers supporting:
    • Three PCI Express® Gen 2 interfaces
    • SATA 3.0 Interface

Accelerators and Memory Controllers

  • DPAA Parse, Classify, and Distribution Engines
  • Integrated security engine
  • DDR4

Basic Peripherals and Interconnect

  • 3x PCIe 3.0 Controllers, x4, x2, x1
  • 3x USB 3.0 with integrated PHY
  • SATA 3.0 controller
  • Quad SPI

Additional Features

  • QorIQ® Platform's Trust Architecture
  • Arm SMMU for hardware-enhanced virtualization
  • FCPBGA 23x23mm
  • Pin-compatible with LS1023A, LS1043A, and LS1088A
