2.45 GHz RF Energy Module

RFEM24-250 製造中止
  • このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。

画像にカーソルを合わせると拡大表示されます。

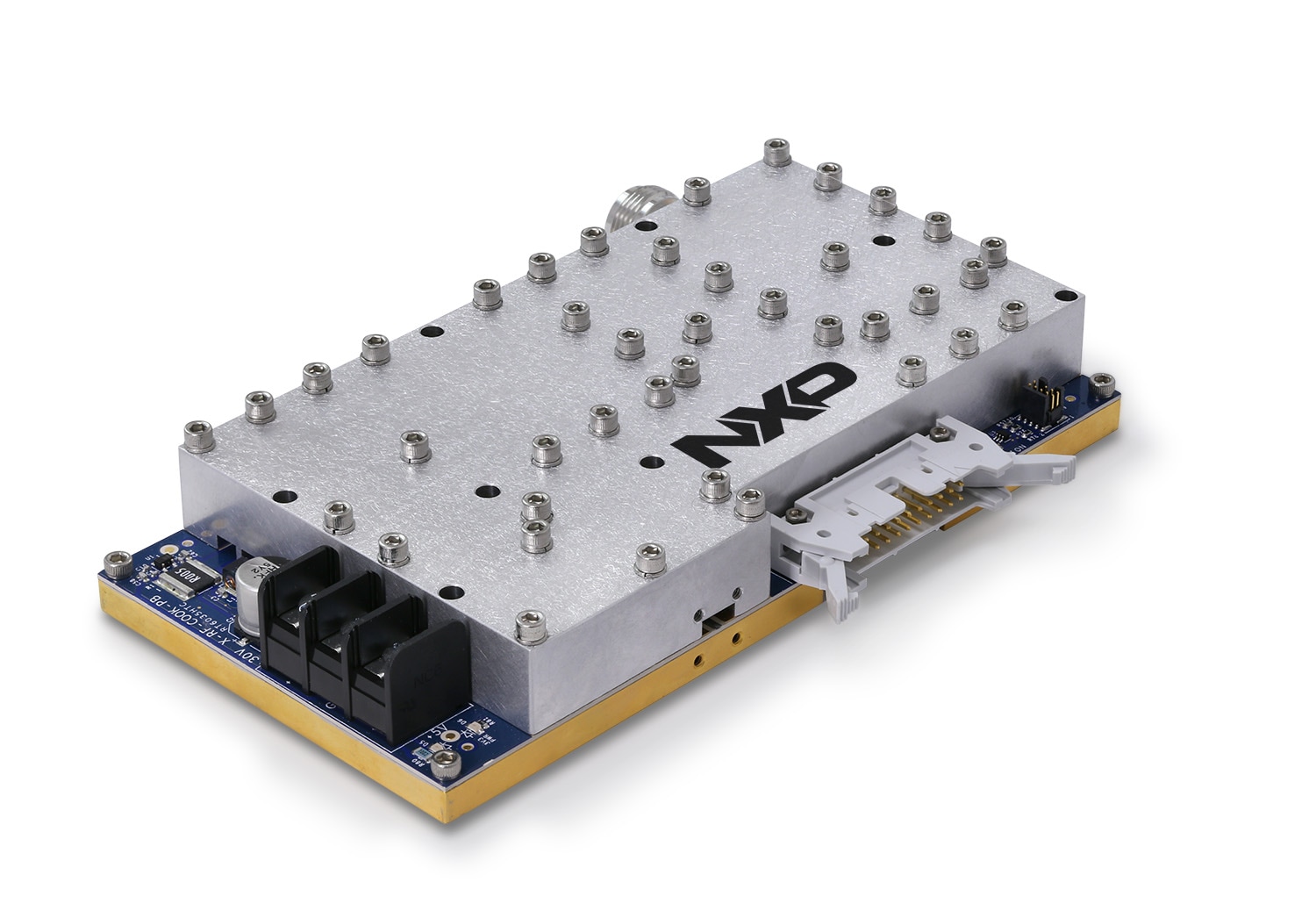

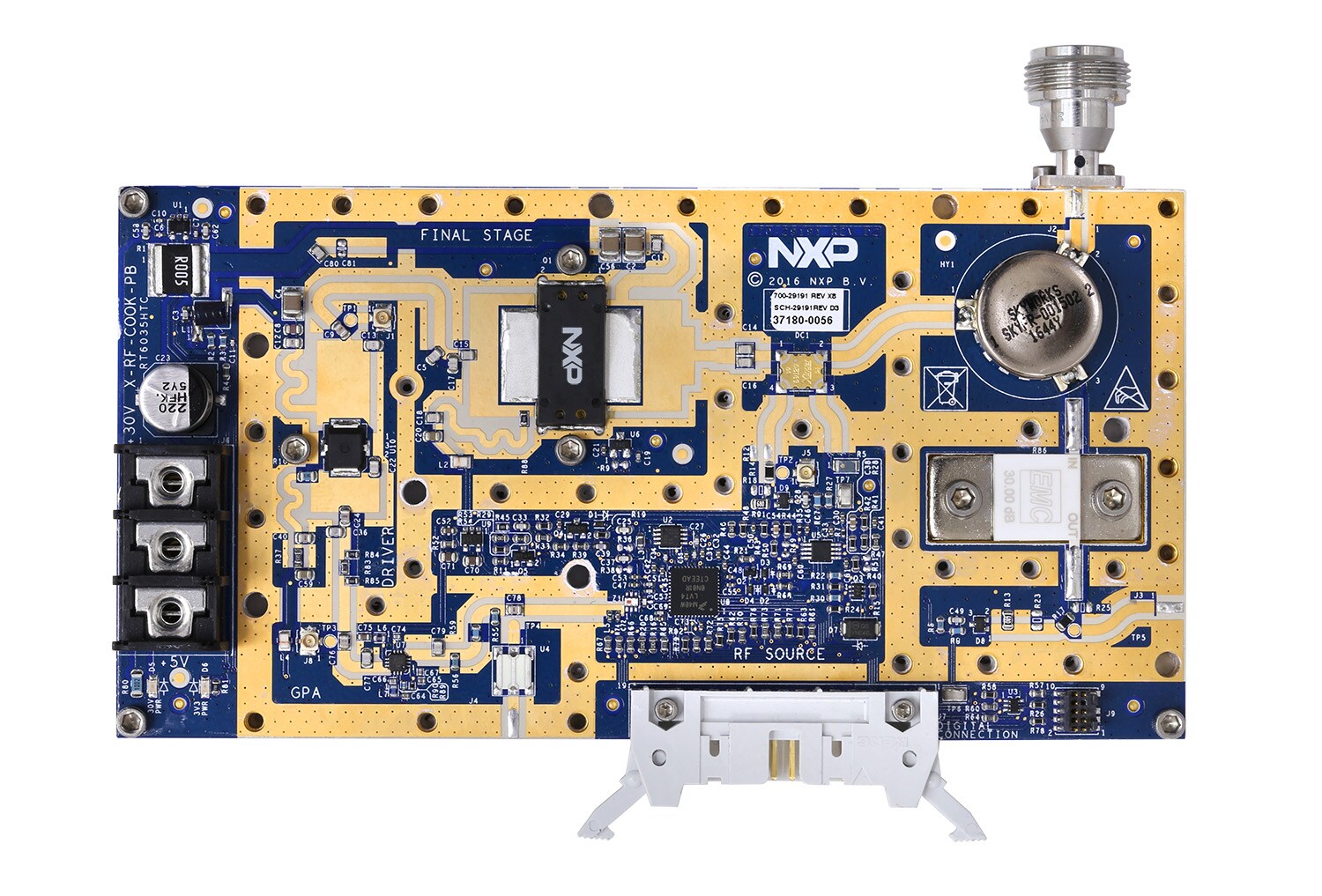

The RFEM24-250 is a fully integrated 2.45 GHz, 250 W RF generator module that includes full measurement capabilities. Its microcontroller includes an RF source that drives a 3-stage RF amplifier lineup. Its comprehensive command set controls parameters such as frequency, phase and power. The extensive measurement system provides calibrated data from multiple internal sensors and supports closed loop operations.

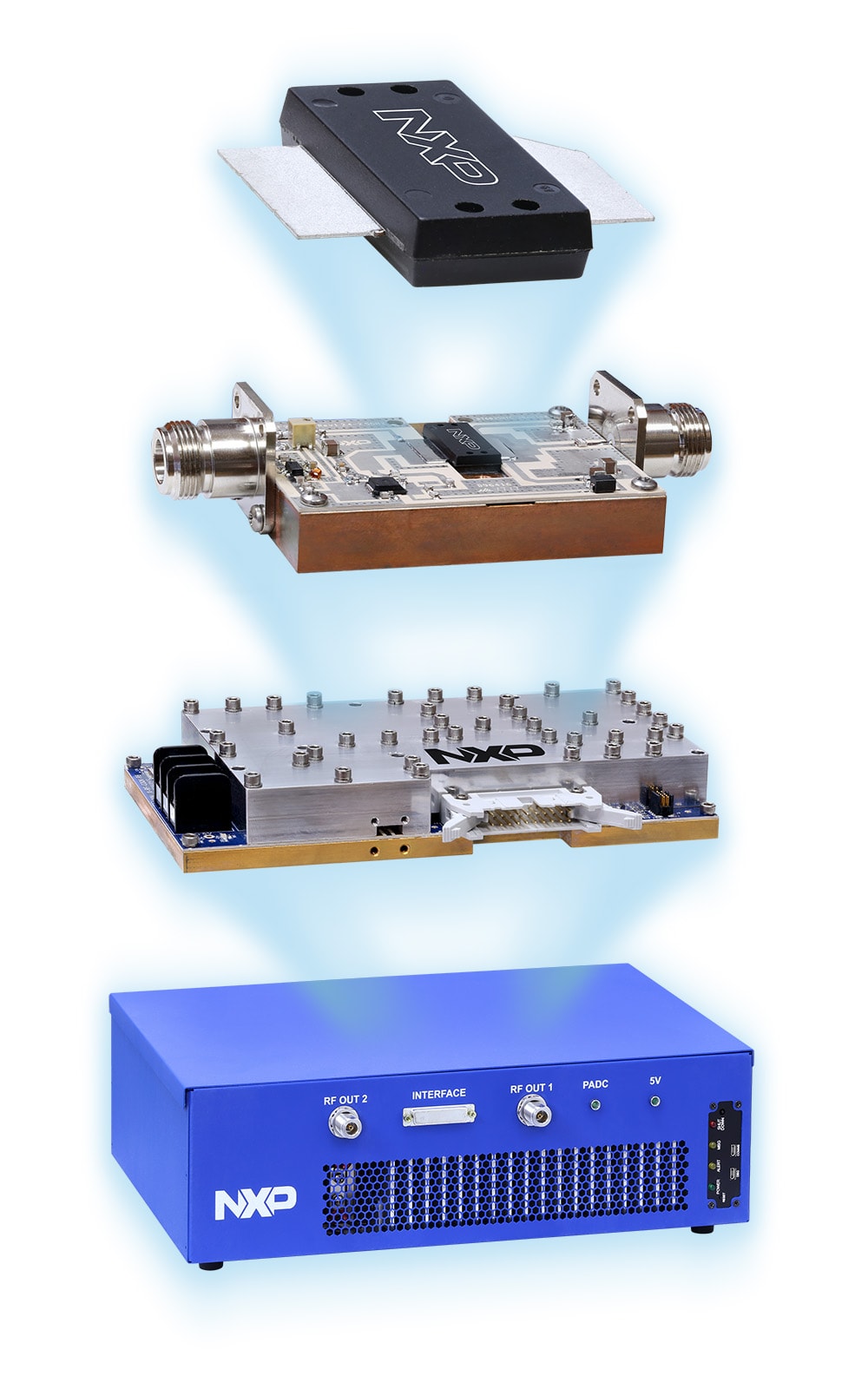

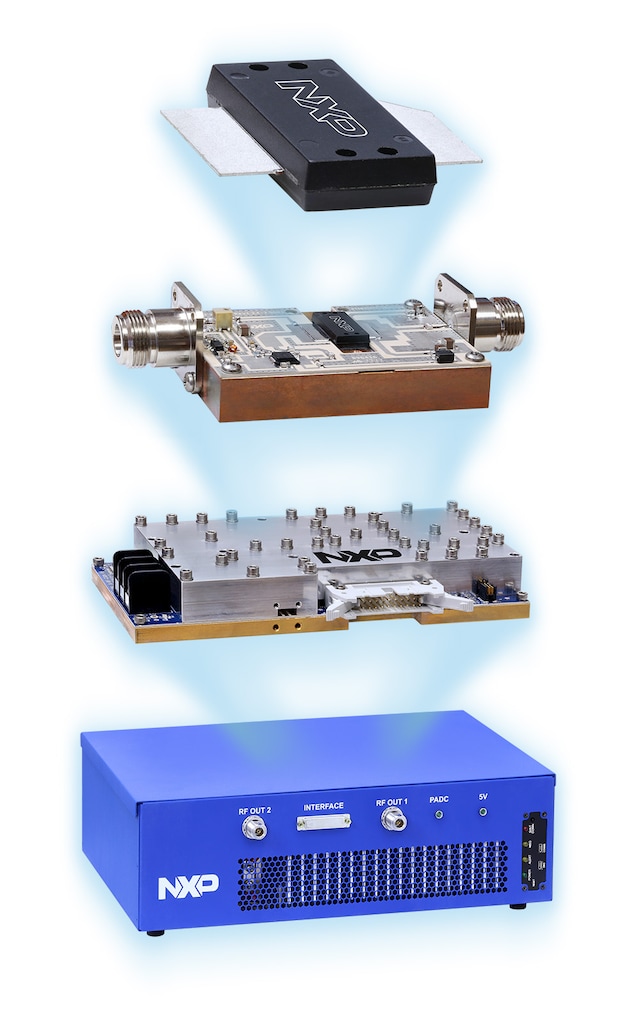

The RFEL24-500 NXP RF energy lab box is the development system for the RFEM24-250. It contains two RFEM24-250 RF energy modules, a cooling system (heatsink, fans), a 30 V, 500 W power supply unit and a USB to I²C interface.

Features

  • 2.45 GHz, 250 W RF module subsystem with integrated RF source
  • 50 ohm output port
  • I²C communications interface
  • Comprehensive sensing includes:
    • forward and reflected RF power
    • current and voltage
    • temperature
  • Integrated hardware-based fault protection
  • Up to 4 modules can be combined and synchronized

RF Performance Table

Frequency2400-2500 MHz
RF power output250 W @ 30 V
Efficiency57%
Output amplifier power24-32 V, 15 A Max
VSWRUnlimited
RF power measurement±5%
Control power5 V, 0.5 A Max
