S12A Automotive and Industrial Microcontrollers (MCUs)

S12A アクティブ

The MC9S12A512 MCU is a 16-bit device composed of standard on-chip peripherals, including a HCS12 CPU.

System resource mapping, clock generation, interrupt control and bus interfacing are managed by the system integration module (SIM).

The MC9S12A512 has full 16-bit data paths throughout, however the external bus can operate in an 8-bit narrow mode so single 8-bit wide memory can be interfaced for lower cost systems.

The inclusion of a phase-lock loop (PLL) circuit allows power consumption and performance to be adjusted.

ブロック図

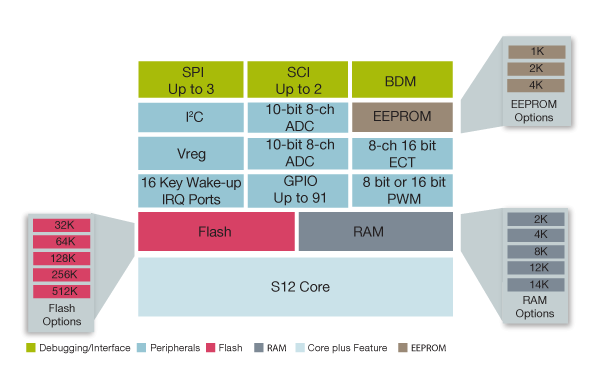

S12A Microcontroller Block Diagram

S12A Microcontroller Block Diagram
図を取得する PDF

Features

  • 16-bit HCS12 CPU
  • Upward compatible with M68HC11 instruction set
  • Interrupt stacking and programmer's model identical to M68HC11
  • Instruction pipe
  • Enhanced indexed addressing
  • Multiplexed external bus
  • Memory
  • 512 KB flash EEPROM
  • 4 KB EEPROM
  • 14 KB RAM
  • Two asynchronous serial communications interfaces (SCI)
  • Three serial peripheral interfaces (SPI)
  • Two 8-channel ADCs
  • 8-channel pulse-width modulator (PWM)
  • 29 discrete digital I/O channels (Port A, Port B, Port K and Port E)
  • 20 discrete digital I/O lines with interrupt and wake-up capability
  • Inter-IC Bus
  • 10-bit resolution
  • Software-compatible modules

購入/パラメータ

10 結果

マッチしていない 0 NRND

パーツ

説明を表示

注文

コンピュータ支援設計 モデル

状況

パッケージタイプ

パッケージ端子数

Flash (kB)

RAM (kB)

EEPROM (KB)

動作周波数[最大](MHz)

SPI

Ambient Operating Temperature (Min to Max) (℃)

汎用I/O

標準価格

MC9S12A128CFUE
データ・シート

アクティブ

HQFP80

80

128

8

2

25

2

-40 to 85

59

10K @ US$17.43
MC9S12A128CPVE
データ・シート

アクティブ

LQFP112

112

128

8

2

25

2

-40 to 85

59

10K @ US$17.98
MC9S12A256CFUE
データ・シート

アクティブ

HQFP80

80

256

12

4

25

3

-40 to 105

91

10K @ US$21.30
MC9S12A256CPVE
データ・シート

アクティブ

LQFP112

112

256

12

4

25

3

-40 to 85

91

10K @ US$21.85
MC9S12A256MPVE
データ・シート

アクティブ

LQFP112

112

256

12

4

—

3

-40 to 125

91

10K @ US$24.06
MC9S12A256VPVE
データ・シート

アクティブ

LQFP112

112

256

12

4

—

3

-40 to 105

91

10K @ US$22.96
MC9S12A32CFUE
データ・シート

アクティブ

HQFP80

80

32

4

1

25

1

-40 to 85

91

10K @ US$9.26
MC9S12A512CPVE
データ・シート

アクティブ

LQFP112

112

512

14

4

25

3

-40 to 85

59

10K @ US$25.11
MC9S12A64CFUE
データ・シート

アクティブ

HQFP80

80

64

4

1

25

1

-40 to 85

91

10K @ US$12.59
MC9S12A64CPVE
データ・シート

アクティブ

LQFP112

112

64

4

1

25

1

-40 to 85

59

10K @ US$12.76
