Graphical LCD Driver for MCUs/MPUs
The complimentary embedded graphical user interface (eGUI) allows single chip MCU systems to implement a graphical user interface and drive the latest generation of color graphics LCD panels with integrated display RAM and simple serial peripheral interface (SPI) or parallel bus interface. The eGUI supports conventional LCD panels and ColdFire® LCD MPUs. NXP® also provides a "converter utility" to change graphical bit maps and fonts into the "C" language arrays needed by the eGUI.
The eGUI has been moved to open source community under LGPL license on GitHUB (Check Additional Resources) to allow eGUI community grow up the project, since February 2014.
ソフトウェア詳細

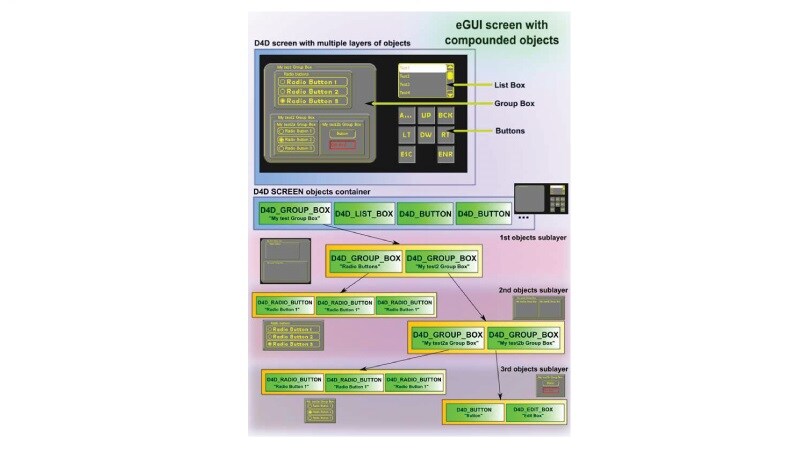

図
Features
- Can be used alone or integrated into the MQX operating system.
- Multiple platforms supported: S08, HCS12, ColdFire, Kinetis.
- Extremely low flash and RAM footprint so that it can easily be used in a small MCU system.
- Smart support for screen oriented structure of user code.
- Supports LCD displays up to 1/4 VGA for MCU and larger for MPUs supported.
- Touch screen support.
- Tower ® LCD board supported.
- Easily ported to new display/controller combinations.
