S12XS Automotive and Industrial Microcontrollers (MCUs)

S12XS アクティブ

The S12XS 16-bit MCU family is optimized for a broad range of cost-sensitive automotive body electronics applications.

Addressing customer needs for design flexibility and platform compatibility, the S12X products enable scalability, hardware and software reusability and compatibility across a broad array of automotive electronics platforms.

The S12XS automotive MCU family allows you to quickly react to market opportunities while reducing the cost of migration if application requirements change during your development cycle.

Compact packaging makes these devices suitable for space-constrained applications, such as small actuators, sensor modules and column-integrated modules.

ブロック図

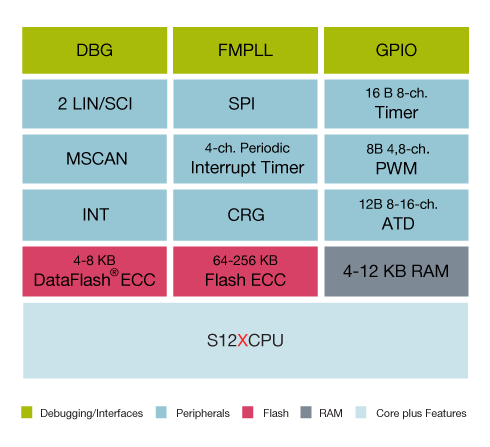

S12XS Microcontroller Block Diagram

S12XS Microcontroller Block Diagram
図を取得する PDF

Features

  • Key Features
    • DataFlash® for data storage or program memory extension
    • Reduce peripheral set for typical body applications
    • This product is included in NXP ®.s product longevity program, with assured supply for a minimum of 15 years after launch
  • Other Features
    • S12X CPU @ 40 MHz bus speed
    • 64 KB, 128 KB and 256 KB flash memory options, all with error correction code (ECC)
    • 4 KB to 8 KB DataFlash with ECC used for data or program storage
    • Choice of configurable 8-,10- or 12-bit analog-to-digital converter (ADC), capable of 3 µs conversion time
    • Support for control area network (CAN), local interconnect network (LIN) and serial peripheral interface (SPI) protocols
    • 8-channel timer with 16-bit counters
    • Excellent EMC/run and stop current performance

購入/パラメータ

1-10 の 31 結果

マッチしていない 0 NRND

パーツ

説明を表示

注文

コンピュータ支援設計 モデル

状況

パッケージタイプ

パッケージ端子数

Flash (kB)

RAM (kB)

EEPROM (KB)

ADC

ADCビット

動作周波数[最大](MHz)

CAN

SPI

電源電圧 [最大] (V)

電源電圧 [最小] (V)

Ambient Operating Temperature (Min to Max) (℃)

汎用I/O

標準価格

G9S12XS128J1MAA
データ・シート

アクティブ

HQFP80

80

128

8

8

1

8

40

1

1

5.5

3.13

-40 to 125

59

1K @ US$4.10
G9S12XS128J1MAL
データ・シート

アクティブ

LQFP112

112

128

8

8

1

16

40

1

1

5.5

3.13

-40 to 125

91

1K @ US$4.38
G9S12XS128J1VAL
データ・シート

アクティブ

LQFP112

112

128

8

8

1

16

40

1

1

5.5

3.13

-40 to 105

91

—

G9S12XS256J0CAE
データ・シート

アクティブ

LQFP64

64

256

12

8

1

8

40

1

1

5.5

3.13

-40 to 85

44

1K @ US$4.33
G9S12XS256J0CAL
データ・シート

アクティブ

LQFP112

112

256

12

8

1

16

40

1

1

5.5

3.13

-40 to 85

91

1K @ US$4.56
G9S12XS256J0MAA
データ・シート

アクティブ

HQFP80

80

256

12

8

1

8

40

1

1

5.5

3.13

-40 to 125

59

1K @ US$4.74
G9S12XS256J0MAL
データ・シート

アクティブ

LQFP112

112

256

12

8

1

8

40

1

1

5.5

3.13

-40 to 125

91

1K @ US$5.04
G9S12XS256J0VAL
データ・シート

アクティブ

LQFP112

112

256

12

8

1

8

40

1

1

5.5

3.13

-40 to 105

91

1K @ US$4.81
G9S12XS64J1VAE
データ・シート

アクティブ

LQFP64

64

64

4

4

1

8

40

1

1

5.5

3.13

-40 to 105

44

1K @ US$3.63
MC9S12XS128CAE
データ・シート

アクティブ

LQFP64

64

128

8

8

1

8

40

1

1

5.5

3.13

-40 to 85

44

1K @ US$6.07
