EdgeLock® SE051：更新機能とカスタム・アプレットのサポートを備えた実証済みで使いやすいIoTセキュリティ・ソリューション

SE051 アクティブ

EdgeLock SE051は、広く信頼されているEdgeLock SE050 Plug & Trustセキュア・エレメント・ファミリの機能を拡充した製品で、フィールドでのアプレット更新をサポートするとともに、CC EAL 6+認証済みでさらにOSレベルまでAVA_VAN.5を取得した実証済みのセキュリティを提供し、最新の攻撃に対する強力な保護を実現します。このすぐに使用可能なIoTデバイス向けセキュア・エレメントは、ICレベルでの信頼の基点をもたらし、セキュリティ・コードの実装も、危険が伴う鍵や認証情報の入力も必要としない、エッジからクラウドまでの真にエンド・ツー・エンドのセキュリティを実現します。

SEMS Liteにより将来性が確保されたセキュリティ

EdgeLock SE051は、軽量なIoT向けに最適化されたバージョンのGlobalPlatform Secure Element管理サービス (SEMS) をサポートしており、フィールドでのセキュリティ管理用の更新やアプレットのアップグレードなど、さまざまなアイテムでのEdgeLock SE051のIoTアプレットの更新や、出荷後に新しく開発されたアプレットの導入を可能にします。

独自アプレット（デバイスのソフトウェア）の開発については、最寄りのNXP担当者までお問い合わせください。

Certified EdgeLock Assurance

EdgeLock SE051はCertified EdgeLock Assuranceプログラムの一部であり、業界標準を満たすように設計され、NXPのセキュリティ・バイ・デザイン・アプローチに従っています。この製品は独立機関によって認定されています。

もっと見る

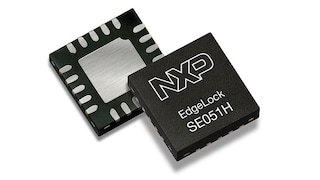

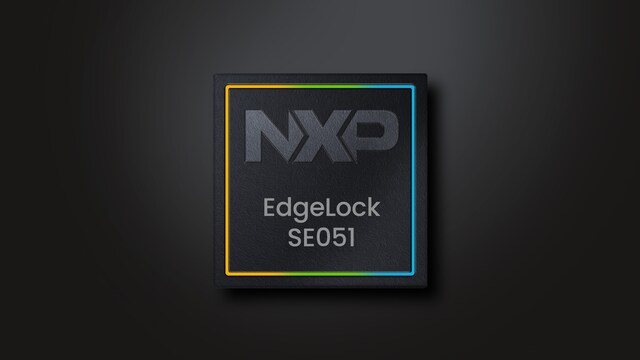

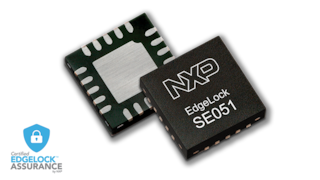

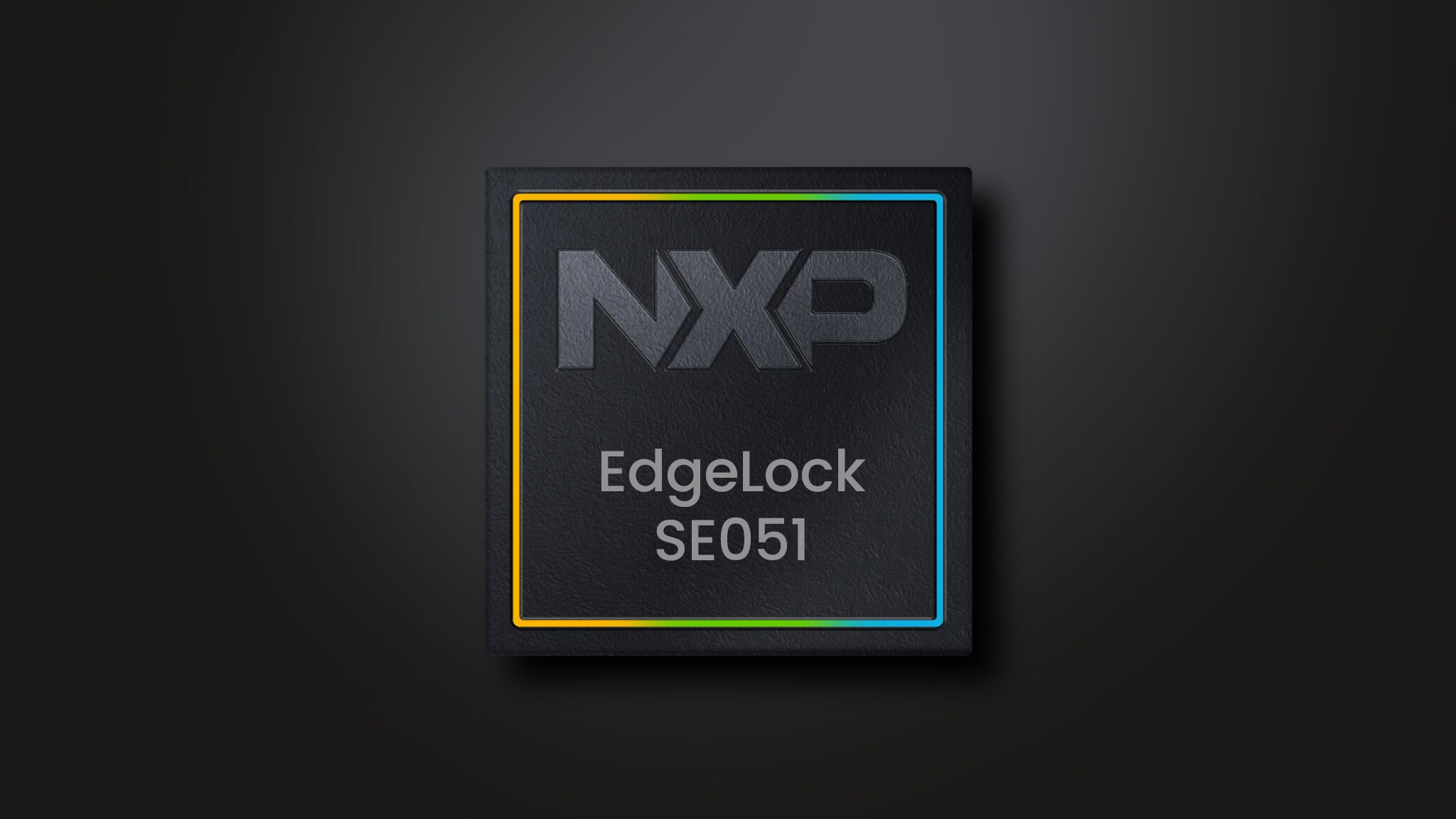

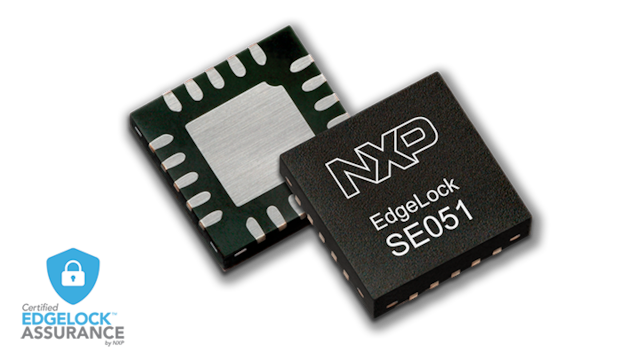

製品画像を見る

ブロック図

EdgeLock Plug & Trustミドルウェア

EdgeLock Plug & Trust Middleware
図を取得する PDF

特長

EdgeLock SE051の拡張機能（EdgeLock SE050プラットフォームに追加された機能）

  • 市場投入の迅速化やカスタマイズのための更新機能を備えたIoTセキュリティ・ソリューション
    • SE051A/CにはIoTアプレットが事前にインストールされており、迅速な導入のための完全なソフトウェア対応が可能
    • カスタム製品の独自アプレットの開発については、最寄りのNXP担当者までお問い合わせください
  • 便利なIoTアプレット更新機能を備えたSEMS Lite
  • インダストリアルIoTのユース・ケースに最適
    • IEC62443-4-2認証取得済みで、適用要件に対応
    • IEC62443-4-1認証Maturity level 3のセキュア・プロセスに準拠した製品開発ライフサイクル
  • 柔軟なユーザー・メモリ
    • SE051A/C：104 KBまでのパーソナライゼーション・オプションを備えた46 KBのユーザー・メモリ

EdgeLock SE050プラットフォームの特長

  • IoT導入のための革新的なCC EAL6+認証取得済みソリューション
  • 暗号の俊敏性：RSAおよびECC機能、長い鍵長、将来性が確保された曲線（Brain pool、Edwards、Montgomeryなど）
  • AESおよび3DESによる暗号化と復号化
  • AESモード：CBC、CTR、ECB、CCM、GCM
  • HMAC、CMAC、GMAC、SHA-1、SHA-224/256/384/512方式
  • NIST SP800-90B準拠のTRNG
  • NIST SP800-90A準拠のDRBG
  • HKDF、MIFARE® KDF、PRF (TLS-PSK)
  • 主要TPM機能のサポート
  • SCP03（アプレットおよびプラットフォーム・レベルでのバス暗号化および暗号化された認証情報の注入）
  • 電源が投入されていないデバイスでの最終段階パラメータ設定用の非接触インターフェース
  • I²Cターゲット（高速モード、3.4 Mbit/s）、I²Cコントローラ（ファストモード、400 kbit/s）
  • インダストリアル・アプリケーション向けの拡張温度範囲 (-40～+105°C)
  • スペースに制限のあるアプリケーションに最適な超薄型の小型HX2QFN20パッケージ (3 mm x 3 mm x 0.33 mm)
