UCODE 8/8m

SL3S1205-15 アクティブ

NXP's UCODE 8 and UCODE 8m ICs are products of the UCODE family. UCODE 8/8m offer high performance and features for use in the most demanding RFID tagging applications.

Particularly well suited for inventory management applications, like e.g Retail and Fashion, with its proven RF performance for any given form factor, UCODE 8/8m enables long read distance and fast inventory of dense RFID tag population. With its broadband design, it offers the possibility to manufacture true global RFID label with high performance over worldwide regulations.

The device also provides an Self Adjust Feature, a Product Status Flag for Electronic Article Surveillance (EAS) application, pre-serialized 96-bit EPC, Brand Identifier and the EPC Gen2v2 complaint Untraceable command.

ブロック図

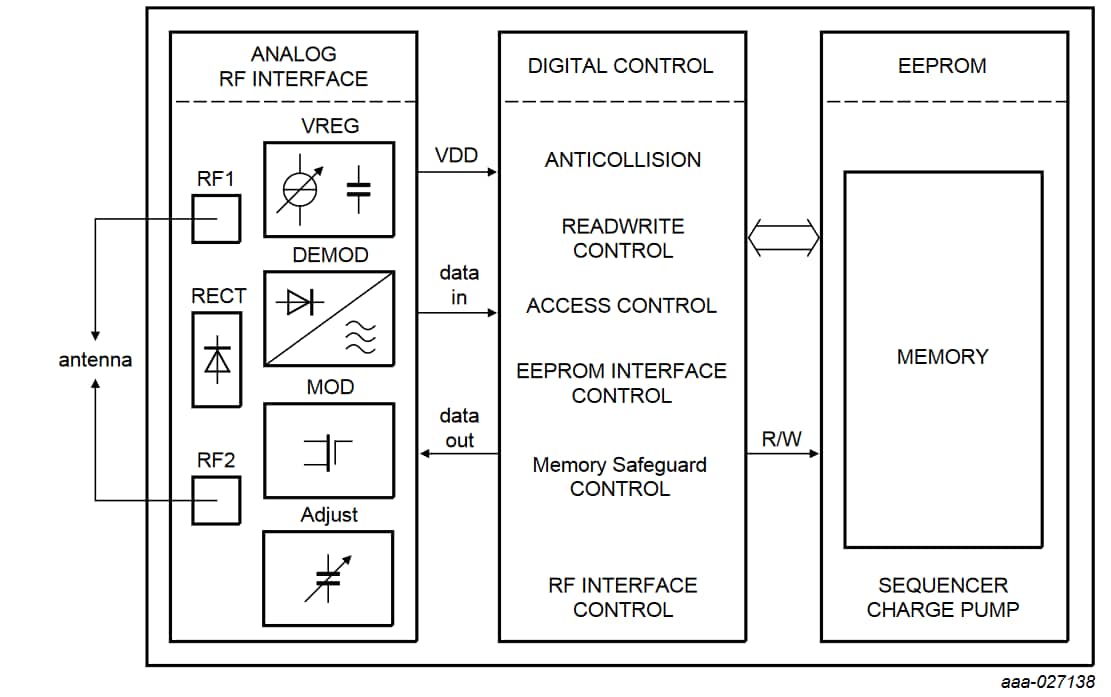

UCODE 8/8m Block Diagram

UCODE 8/8m Block Diagram
図を取得する PDF

Features

Key Features

  • Read sensitivity -23dBm
  • Write sensitivity -18dBm
  • Innovative functionality
    • Self-Adjust
    • Memory Safeguard
    • Untraceable
    • Pre-serialization for 96-bit EPC
    • Integrated Product Status Flag (PSF)
  • Compatible with single-slit antenna
  • Up to 128-bit EPC
  • 96-bit Unique Tag Identifie (TID) factory locked, including 48-bit unique serial number
  • EPC Gen2v2

Memory

  • 128-bit/96-bit (UCODE 8/UCODE 8m) of EPC memory
  • Supports pre-serialization for 96-bit EPC
  • 96-bit Tag IDentifier (TID) factory locked
  • 48-bit unique serial number factory-encoded into TID
  • 0-bit/32-bit (UCODE 8/UCODE 8m) User Memory
  • 32-bit kill password to permanently disable the tag
  • 32-bit access password
  • Wide operating temperature range: -40 °C up to +85 °C
  • EPC Gen2v2

Supported Features

  • All mandatory commands of EPC global specification V.2.0.1 are implemented inclunding:
    • (Perma) LOCK
    • Kill Command
  • Product Status Flag bit: enables the UHF RFID tag to be used as EAS (Electronic Article Surveillance) tag without the need for a back-end data base.
  • Auto Adjust for automated tag performance optimization
  • Memory Safeguard: enables countermeasures, like parity and margin checks as well as automated error correction, to ensure integrity of customer data.
  • Brand Identifier: enables product authentication verification

もっと見る
