Ultra Low Cost Linux® Processor with Arm® Cortex®-A7 Core
The i.MX 6ULZ processor is a high-performance, ultra cost-efficient consumer Linux processor featuring an advanced implementation of a single Arm® Cortex®-A7 core, which operates at speeds up to 900 MHz. The i.MX 6ULZ applications processor includes full audio suite: ESAI, I2S X 3, S/PDIF, and an integrated power management module that reduces the complexity of an external power supply and simplifies power sequencing. Each processor in this family provides various memory interfaces, including 16-bit LPDDR2, DDR3, DDR3L, raw and managed NAND flash, NOR flash, eMMC, Quad SPI and a wide range of other interfaces for connecting peripherals such as WLAN, Bluetooth® and GPS.
i.MX 6 applications processors are part of NXP's EdgeVerse™ edge computing platform.
製品詳細

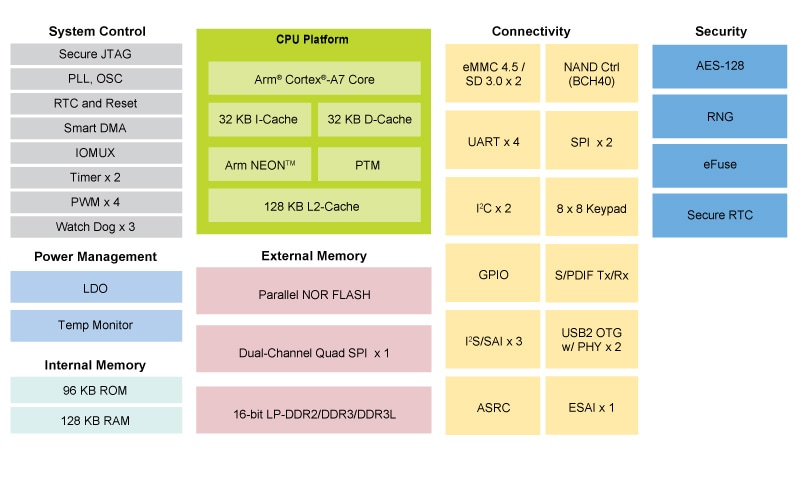

ブロック図
Features
- Cost-effective Linux Processor
- CPU Complex: Cortex-A7 core up to 900 MHz
- Flexible boot options, including support for Quad SPI and raw NAND
- Memory controller that interfaces to both DDR3 and low-power mobile DDR2 memory
- Two high-speed USB on-the-go connections with PHY
- Full audio suite: ESAI, I2S x 3, S/PDIF
- Multiple expansion card ports
- Security Block with TRNG, AES crypto engine, and secure boot
