Multimedia Applications Processors - High-Performance, Low-Power, Arm9™ Core

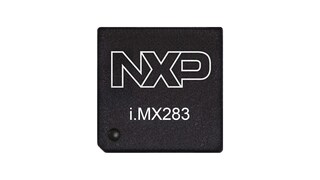

The i.MX283 applications processor offers a low-power, high-performance solution that comes optimized for the general embedded industrial and consumer markets.
- Enables applications such as media and smart energy gateways, handheld printers and scanners, and portable medical devices
- Reduces system cost and complexity and provides greater flexibility in system design
- Provides extended temperature coverage for harsh environments
- Industrial qualification and product longevity supports the full life of the product in the field
- Supported by a comprehensive suite of software and tools
製品詳細

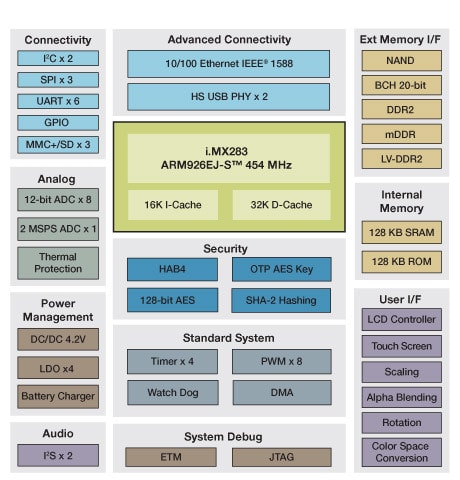

ブロック図
Features
- LCD Controller with Touchscreen
- NAND support – SLC/MLC and eMMC 4.4 managed
- Hardware BCH (up to 20-bit correction)
- 200 MHz 16-bit DDR2, LV-DDR2, mDDR external memory support
- Dual High-speed USB with embedded PHY
- 8 General purpose 12-bit ADC channels and single 2 Msps ADC channel
- Temperature sensor for thermal protection
- Multiple connectivity ports (UARTs, SSP, SDIO, SPI, I2C, I2S)
- 3.3V I/O, 10 year lifetime (Industrial)
- Package and Temperature
- 289 BGA 14x14mm .8mm
- -20C to +70C (Consumer)
- -40C to +85C (Industrial)
- This product is included in NXP's product longevity program, with assured supply for a minimum of 15 years after launch
