General Purpose Low-Noise Amplifier with Bypass Switch

MC13851 製造中止

画像にカーソルを合わせると拡大表示されます。

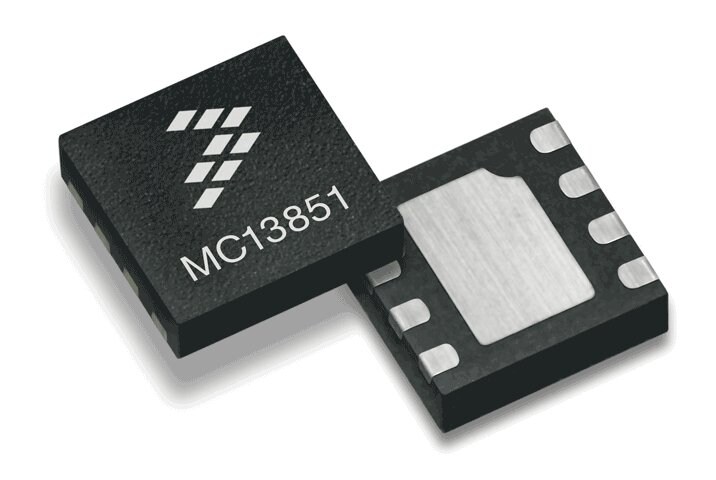

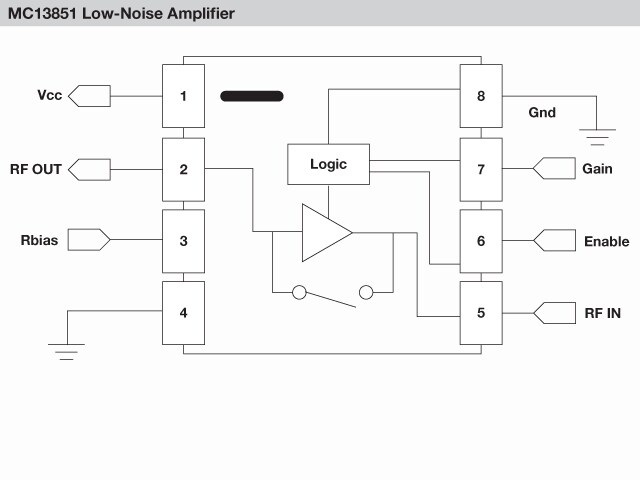

The MC13851 is a cost-effective, high IP3 low noise amplifier (LNA) with low noise figure. This is the leadless package version of the MC13821 device. An integrated bypass switch is included to preserve high input intercept performance in variable signal strength environments and boosts dynamic range. On-chip bias circuitry offers low system cost. The input and output match are external to allow maximum design flexibility. An external resistor is used to set device current which allows balancing required linearity with low current consumption.
