Evaluation Kit - MC06XS3517, Penta High Side Switch

KIT06XS3517EVBE アクティブ

画像にカーソルを合わせると拡大表示されます。

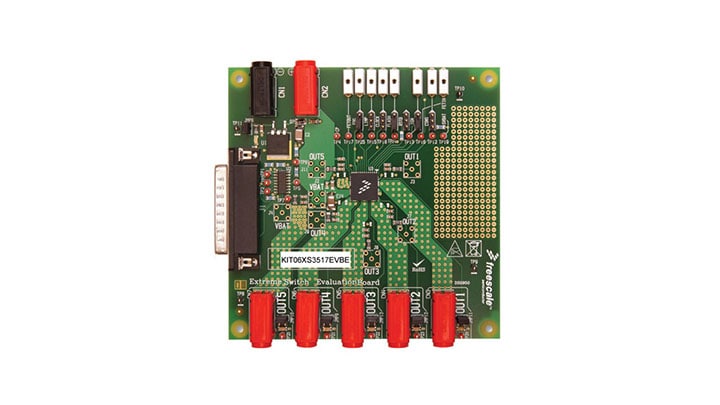

This evaluation board demonstrates the capability of the MC06XS3517 as a 12 V dual high side switch product with integrated control and a high number of protective and diagnostic functions. It has been designed for truck, bus, and light automotive applications. Control, device configuration, and diagnostics are performed through a 16-bit SPI interface, allowing easy integration into existing applications.

The MC06XS3517 is designed for low-voltage automotive and industrial lighting applications. It is a five low RDS (ON) MOSFETs can control the high sides of five separate resistive loads (bulbs, Xenon-HID modules and LEDs). Programming, control, and diagnostics are accomplished using a 16-bit serial peripheral interface (SPI) (3.3 V or 5.0 V). Each output has its own PWM control via the SPI. The MC06XS3517 has highly sophisticated failure mode handling to provide high availability of the outputs. Its multi-phase control and output edge shaping improves electromagnetic compatibility (EMC) behavior.

製品詳細

Features

Connectivity

  • 16-bit SPI with daisy chain capability
  • Overcurrent shut down detection
  • Power net and reverse polarity protection
  • Low-power mode
  • Current sense output with SPI-programmable multiplex switch and board temperature feedback

User Components

  • Five high side switches
  • Fully protected switches
  • LEDs control including accurate current sensing and low duty cycle capability
  • External smart power switch control including current recopy

Tools and OS Support

  • Digital diagnosis feature

General Specifications

  • PWM module with multiphase feature including prescaler
  • Fail mode functions including auto restart feature

購入オプション

KIT06XS3517EVBE-Image

クリックして展開

  • KIT06XS3517EVBE
    アクティブ

  • Evaluation Kit - MC06XS3517, Smart High Side Switch Module (Triple 6.0 mOhm and Dual 17 mOhm).

    • KIT06XS3517EVBE Hardware
    • Quick Reference Guide
  • の数量に対して 1
代理店からの注文
N true 0 TSPKIT06XS3517EVBEja 6 データ・シート Data Sheet t520 1 ファクト・シート Fact Sheet t523 1 ユーザ・ガイド User Guide t792 4 ja 2 1 MC06XS3517AFK 5.0 English The 06XS3517 device is a five channel 12 V high side switch module with integrated control and a high number of protective and diagnostic functions. It is designed for automotive lighting and industrial applications. The low RDS(ON) channels (three 6.0 mOhm, two 17 mOhm) can control different types of lighting applications; bulb lamps, Xenon-HID lights, and LEDs. Control, device configuration, and diagnostics are performed through a 16-bit SPI interface (3.3 V or 5.0 V). This device is powered using SMARTMO 1330634870828706048968 TSP 1.4 MB None None documents None 1330634870828706048968 /docs/en/data-sheet/MC06XS3517.pdf 1373338 /docs/en/data-sheet/MC06XS3517.pdf MC06XS3517 N N 2012-03-02 MC06XS3517, Smart High-side Switch Module (Triple 6.0 mOhm and Dual 17 mOhm) - Data Sheet /docs/en/data-sheet/MC06XS3517.pdf /docs/en/data-sheet/MC06XS3517.pdf Data Sheet N Y 980000996212993340 2022-12-07 pdf N en Apr 28, 2014 Data Sheet t520 データ・シート Data Sheet Y N MC06XS3517, Smart High-side Switch Module (Triple 6.0 mOhm and Dual 17 mOhm) - Data Sheet 2 2.0 English This Evaluation Board demonstrates the capability of the MC06XS3517FK as a 12 V penta high side switch product with integrated control and a high number of protective and diagnostic functions. 1345755609805752781132 TSP 1.8 MB None None documents Y None 1345755609805752781132 /docs/en/user-guide/KT06XS3517UG.pdf 1844820 /docs/en/user-guide/KT06XS3517UG.pdf KT06XS3517UG N N 2012-09-10 KIT06XS3517EVBE, Evaluation Board - User Guide /docs/en/user-guide/KT06XS3517UG.pdf /docs/en/user-guide/KT06XS3517UG.pdf User Guide N Y 132339537837198660 2022-12-07 pdf N en Oct 26, 2012 User Guide t792 ユーザ・ガイド User Guide Y N KIT06XS3517EVBE, Evaluation Board - User Guide false ja 3 3 4.0 English Evaluation Board Documentation 1208378979770700388811 TSP 252.7 KB None None documents Y None 1208378979770700388811 /docs/en/user-guide/KTSPIGENSIUG.pdf 252666 /docs/en/user-guide/KTSPIGENSIUG.pdf KTSPIGENSIUG N N 2016-10-31 KTSPIGENSIUG, Installation Notes for SPIGen /docs/en/user-guide/KTSPIGENSIUG.pdf /docs/en/user-guide/KTSPIGENSIUG.pdf User Guide N 132339537837198660 2022-12-07 pdf N en Oct 9, 2009 User Guide t792 ユーザ・ガイド User Guide Y N KTSPIGENSIUG, Installation Notes for SPIGen 4 3.0 English Evaluation Board Documentation 1208378977815710359391 TSP 347.1 KB None None documents Y None 1208378977815710359391 /docs/en/user-guide/KTSPIGENHELPUG.pdf 347130 /docs/en/user-guide/KTSPIGENHELPUG.pdf KTSPIGENHELPUG N N 2016-10-31 KTSPIGENHELPUG, SPIGen Help Instructions /docs/en/user-guide/KTSPIGENHELPUG.pdf /docs/en/user-guide/KTSPIGENHELPUG.pdf User Guide N 132339537837198660 2024-01-19 pdf N en Oct 9, 2009 User Guide t792 ユーザ・ガイド User Guide Y N KTSPIGENHELPUG, SPIGen Help Instructions 5 1.0 English Version 5.0.X of the SPIGen program has several new features that were added to support the new USB to SPI interface and the latest NXP evaluation board products that incorporate the USB to SPI feature. 1258751742906730267133 TSP 192.9 KB None None documents Y None 1258751742906730267133 /docs/en/user-guide/KTUSBADSPIug.pdf 192874 /docs/en/user-guide/KTUSBADSPIug.pdf KTUSBADSPIUG N N 2016-10-31 USB Additions to SPIGen /docs/en/user-guide/KTUSBADSPIug.pdf /docs/en/user-guide/KTUSBADSPIug.pdf User Guide N 132339537837198660 2024-01-19 pdf N en Oct 15, 2007 User Guide t792 ユーザ・ガイド User Guide Y N USB Additions to SPIGen false ja ファクト・シート Fact Sheet 1 6 2 English The eXtreme switch portfolio contains a wide breadth of switches for automotive and industrial applications, offering low-on resistance, control and diagnostics for 12, 24 and 36 V applications. 1487371579070725010252 TSP 118.8 KB None None documents None 1487371579070725010252 /docs/en/fact-sheet/ESWITCHFS.pdf 118772 /docs/en/fact-sheet/ESWITCHFS.pdf ESWITCHFS documents N N 2017-02-17 Smart High-Side Switches Fact Sheet /docs/en/fact-sheet/ESWITCHFS.pdf /docs/en/fact-sheet/ESWITCHFS.pdf Fact Sheet N 736675474163315314 2022-12-07 pdf N en Jul 29, 2022 736675474163315314 Fact Sheet Y N Smart High-Side Switches Fact Sheet false 0 KIT06XS3517EVBE downloads ja true 0 Y TSP データ・シート 1 /docs/en/data-sheet/MC06XS3517.pdf 2012-03-02 1330634870828706048968 TSP 1 Apr 28, 2014 Data Sheet データ・シート The 06XS3517 device is a five channel 12 V high side switch module with integrated control and a high number of protective and diagnostic functions. It is designed for automotive lighting and industrial applications. The low RDS(ON) channels (three 6.0 mOhm, two 17 mOhm) can control different types of lighting applications; bulb lamps, Xenon-HID lights, and LEDs. Control, device configuration, and diagnostics are performed through a 16-bit SPI interface (3.3 V or 5.0 V). This device is powered using SMARTMO None /docs/en/data-sheet/MC06XS3517.pdf English 1373338 None Data Sheet 2022-12-07 N /docs/en/data-sheet/MC06XS3517.pdf MC06XS3517, Smart High-side Switch Module (Triple 6.0 mOhm and Dual 17 mOhm) - Data Sheet /docs/en/data-sheet/MC06XS3517.pdf documents 980000996212993340 Data Sheet N Y en None Y t520 pdf 5.0 N N MC06XS3517, Smart High-side Switch Module (Triple 6.0 mOhm and Dual 17 mOhm) - Data Sheet MC06XS3517AFK 1.4 MB MC06XS3517 N 1330634870828706048968 ファクト・シート 1 /docs/en/fact-sheet/ESWITCHFS.pdf 2017-02-17 1487371579070725010252 TSP 6 Jul 29, 2022 Fact Sheet The eXtreme switch portfolio contains a wide breadth of switches for automotive and industrial applications, offering low-on resistance, control and diagnostics for 12, 24 and 36 V applications. None /docs/en/fact-sheet/ESWITCHFS.pdf English documents 118772 None 736675474163315314 2022-12-07 N /docs/en/fact-sheet/ESWITCHFS.pdf Smart High-Side Switches Fact Sheet /docs/en/fact-sheet/ESWITCHFS.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 2 N N Smart High-Side Switches Fact Sheet 118.8 KB ESWITCHFS N 1487371579070725010252 ユーザ・ガイド 4 /docs/en/user-guide/KT06XS3517UG.pdf 2012-09-10 1345755609805752781132 TSP 2 Oct 26, 2012 User Guide ユーザ・ガイド This Evaluation Board demonstrates the capability of the MC06XS3517FK as a 12 V penta high side switch product with integrated control and a high number of protective and diagnostic functions. Y None /docs/en/user-guide/KT06XS3517UG.pdf English 1844820 None User Guide 2022-12-07 N /docs/en/user-guide/KT06XS3517UG.pdf KIT06XS3517EVBE, Evaluation Board - User Guide /docs/en/user-guide/KT06XS3517UG.pdf documents 132339537837198660 User Guide N Y en None Y t792 pdf 2.0 N N KIT06XS3517EVBE, Evaluation Board - User Guide 1.8 MB KT06XS3517UG N 1345755609805752781132 /docs/en/user-guide/KTSPIGENSIUG.pdf 2016-10-31 1208378979770700388811 TSP 3 Oct 9, 2009 User Guide ユーザ・ガイド Evaluation Board Documentation Y None /docs/en/user-guide/KTSPIGENSIUG.pdf English 252666 None User Guide 2022-12-07 N /docs/en/user-guide/KTSPIGENSIUG.pdf KTSPIGENSIUG, Installation Notes for SPIGen /docs/en/user-guide/KTSPIGENSIUG.pdf documents 132339537837198660 User Guide N en None Y t792 pdf 4.0 N N KTSPIGENSIUG, Installation Notes for SPIGen 252.7 KB KTSPIGENSIUG N 1208378979770700388811 /docs/en/user-guide/KTSPIGENHELPUG.pdf 2016-10-31 1208378977815710359391 TSP 4 Oct 9, 2009 User Guide ユーザ・ガイド Evaluation Board Documentation Y None /docs/en/user-guide/KTSPIGENHELPUG.pdf English 347130 None User Guide 2024-01-19 N /docs/en/user-guide/KTSPIGENHELPUG.pdf KTSPIGENHELPUG, SPIGen Help Instructions /docs/en/user-guide/KTSPIGENHELPUG.pdf documents 132339537837198660 User Guide N en None Y t792 pdf 3.0 N N KTSPIGENHELPUG, SPIGen Help Instructions 347.1 KB KTSPIGENHELPUG N 1208378977815710359391 /docs/en/user-guide/KTUSBADSPIug.pdf 2016-10-31 1258751742906730267133 TSP 5 Oct 15, 2007 User Guide ユーザ・ガイド Version 5.0.X of the SPIGen program has several new features that were added to support the new USB to SPI interface and the latest NXP evaluation board products that incorporate the USB to SPI feature. Y None /docs/en/user-guide/KTUSBADSPIug.pdf English 192874 None User Guide 2024-01-19 N /docs/en/user-guide/KTUSBADSPIug.pdf USB Additions to SPIGen /docs/en/user-guide/KTUSBADSPIug.pdf documents 132339537837198660 User Guide N en None Y t792 pdf 1.0 N N USB Additions to SPIGen 192.9 KB KTUSBADSPIUG N 1258751742906730267133 true Y Tools
