Arm7™ with 512 kB flash, 98 kB SRAM, Ethernet, USB 2.0 Device/Host/OTG, CAN, and 10-bit ADC
- このページでは、新規設計を推奨しない製品に関する情報を掲載しています。
The LPC2388 is an Arm7 microcontroller for embedded applications featuring a high level of integration and low power consumption at frequencies of 72 MHz. Features include 512 kB of flash memory, 98 kB of SRAM, Ethernet MAC, USB Device/Host/OTG, DMA controller, 4 UARTs, 2 CAN channels, 3 SSP/SPI, 3 I2C, I2S, 8-channel 10-bit ADC, 10-bit DAC, 2 PWM, 4 general purpose timers, low power Real-Time Clock with separate battery supply, and up to 160 general purpose I/O pins. The LPC2388 is pin-compatible to the LPC177x Cortex-M3 MCU series.
sot486-1_3d
製品詳細

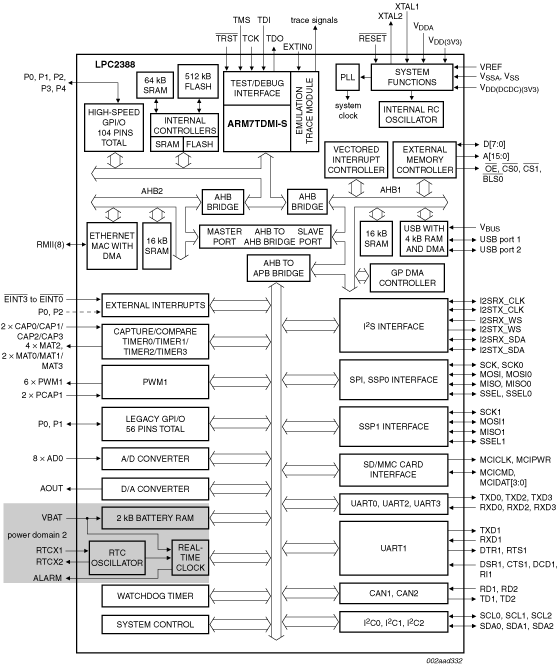

Features
- Arm7TDMI-S™ processor, running at up to 72 MHz
- Up to 512 kB on-chip flash program memory
- 64 kB of SRAM on the Arm local bus for high performance CPU access
- 16 kB SRAM for Ethernet interface. Can also be used as general purpose SRAM
- 16 kB SRAM for general purpose DMA use also accessible by the USB
- Dual Advanced High-performance Bus (AHB) system
- EMC provides support for static devices
- Advanced Vectored Interrupt Controller (VIC)
- General Purpose DMA controller (GPDMA) on AHB
- Ethernet MAC with associated DMA controller
- USB 2.0 device/host/OTG with on-chip PHY and associated DMA controller
- Four UARTs with fractional baud rate generation
- CAN controller with two channels
- SPI controller
- Two SSP controllers, with FIFO and multi-protocol capabilities
- Three I2C-bus interfaces
- I2S (Inter-IC Sound) interface for digital audio input or output
- SD/MMC memory card interface
- 104 General purpose I/O pins with configurable pull-up/down resistors
- 10-bit ADC with input multiplexing among 8 pins
- 10-bit DAC
- Four general purpose timers/counters
- One PWM/timer block with support for three-phase motor control
- Real-Time Clock (RTC)
- 2 kB SRAM powered from the RTC power pin
- WatchDog Timer (WDT)
- Standard Arm test/debug interface for compatibility with existing tools
- Emulation trace module supports real-time trace
- Single 3.3 V power supply (3.0 V to 3.6 V)
- Four reduced power modes: Idle, Sleep, Power-down and Deep power-down
- Four external interrupt inputs configurable as edge/level sensitive
- Processor wake-up from Power-down mode via any interrupt
- Two independent power domains allow fine tuning of power consumption
- Each peripheral has its own clock divider for further power saving
- Brownout detect with separate thresholds for interrupt and forced reset
- On-chip power-on reset
- On-chip crystal oscillator with an operating range of 1 MHz to 25 MHz
- 4 MHz internal RC oscillator trimmed to 1 % accuracy
- On-chip PLL
- Boundary scan for simplified board testing
