MCF51QE128 Demonstration Board

DEMOQE128 アクティブ

画像にカーソルを合わせると拡大表示されます。

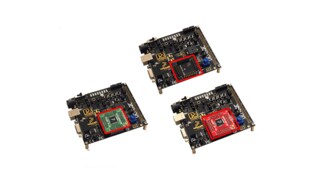

The DEMOQE128 is a low-cost development system designed for demonstrating, evaluating, and debugging the NXP® MC9S08QE128 and MCF51QE128 MCUs. The board supports two interchangeable plug-in daughter cards to quickly evaluate the 8-bit S08 and 32-bit ColdFire® V1 QE128 MCUs.

Embedded Multilink circuitry on the DEMOQE128 board allows the MCU on the DEMOQE128 to be powered, programmed, and debugged via USB from the PC. In addition, the demo board contains an on-board logic analyzer and virtual serial port via USB to assist with rapid development. It also supports plug-in RF daughter cards for SMAC and 802.15.4.

製品詳細

対応製品

プロセッサ＆マイクロコントローラ

ColdFire® V1 Processors

  • MCF51QE: Flexis 32ビットColdFire® V1マイクロコントローラ
  • MCF51AC: Flexis 32-Bit ColdFire. V1 Microcontrollers

8ビットS08 MCU

  • S08QE: 8-bit Flexis QE MCUs
  • S08AC: 8-bit Flexis® AC128/96/60/48/32 MCUs

Features

Connectivity

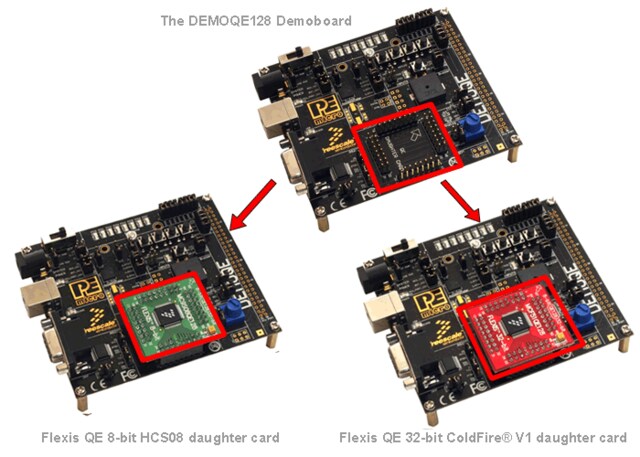

  • Interchangeable 8-bit S08 and 32-bit ColdFire® V1 QE family daughter cards

Power Management

    Flexible power input sources selectable through jumpers

  • USB Cable: 5 V DC, 500 mA max
  • 5 V DC to 12 V DC power jack: 2.5/5.5 mm barrel connector, center positive
  • 2 AAA battery cells
  • MCU port connector

    P&E's USB Embedded Multilink circuitry eliminates the need for external BDM cable

  • Allows for debug, programming, and power to board and device
  • SCI signals connected to Multilink through jumpers for onboard virtual serial port
  • TPM signals connected to Multilink through jumpers for onboard logic analyzer

User Features

  • 3-axis Accelerometer w/ Enable
  • Eight user LEDs w/ Enable
  • Four user push buttons w/ Enable
  • One Piezzo buzzer w/ Enable
  • One RS-232 Serial Port w/ DB9-F Connector
  • IIC Pullups w/ Enable
  • 10K Ohm POT w/ Enable

Components

  • ON/OFF power switch w/ LED indicator
  • Selectable regulated VDD Output at 3.0 V or 2.1 V
  • RESET push Button and LED indicator w/ Enable
  • External crystal circuitry layout

Size

  • Board Size 3.5 x 4.0''

購入オプション

DEMOQE128-Image

クリックして展開

  • DEMOQE128
    アクティブ

  • DEMO FOR S08 AND V1 QE128 SILICON.

    • DEMOQE base board with a MC9S08QE128 daughter card installed
    • MCF51QE128 daughter card
    • DVD-Breaking Bit Boundaries:Getting Started With QE128
      • CodeWarrior for MCUs V6.0 – Special Edition
      • Device and board resources
      • Device training
    • 2-cell AAA battery package
    • USB cable
    • Quick Start Guide
    • NXP warranty card
  • JP¥ 14,571
  • の数量に対して 1
代理店からの注文
